Over the years I gathered obsolete hardware known as "Single Board Computers", mostly used in industrial applications. These cards would not fit any standard ATX based PC cabinets. I just want do document these, so its easy to find hardware for future projects.

As far as I can remember, these cards was tested by me during 2000-2015, but many of them require wierd cables and/or pretty old memory SIMM's and cache. But, with a little effort these smaller Industrial Embedded systems type of motherboards can serve MS-DOS and Windows 3.1 / 95 / 98 / ME in some capacity.

A similar looking motherboard was also used to design my Dynamic Art Stand with a display mounted together with the motherboard. Check out my Stone Oakvalley's Dynamic Art Stand (SODAS) project for more information!
The motherboard was (Inside Technology 1997 - 686LCD/S CPU BOARD).

When I went through these cards, I was hoping that any of them would support MDA/Hercules type of graphics, but it seems there are no ISA slots and/or 9-pin supports on any of them. My hope was to find a PC board that could give me an video signal on my IBM 5151 CRT Amber Monochrome monitor from 1983.

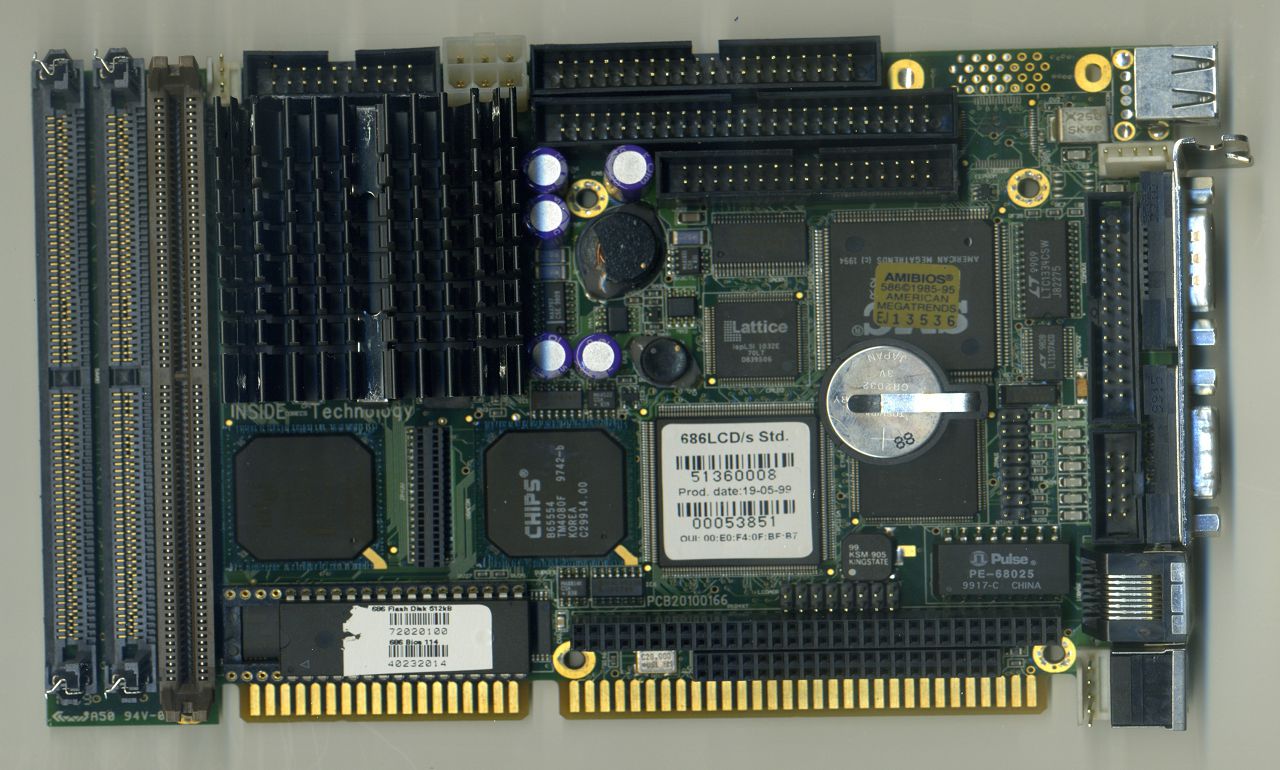

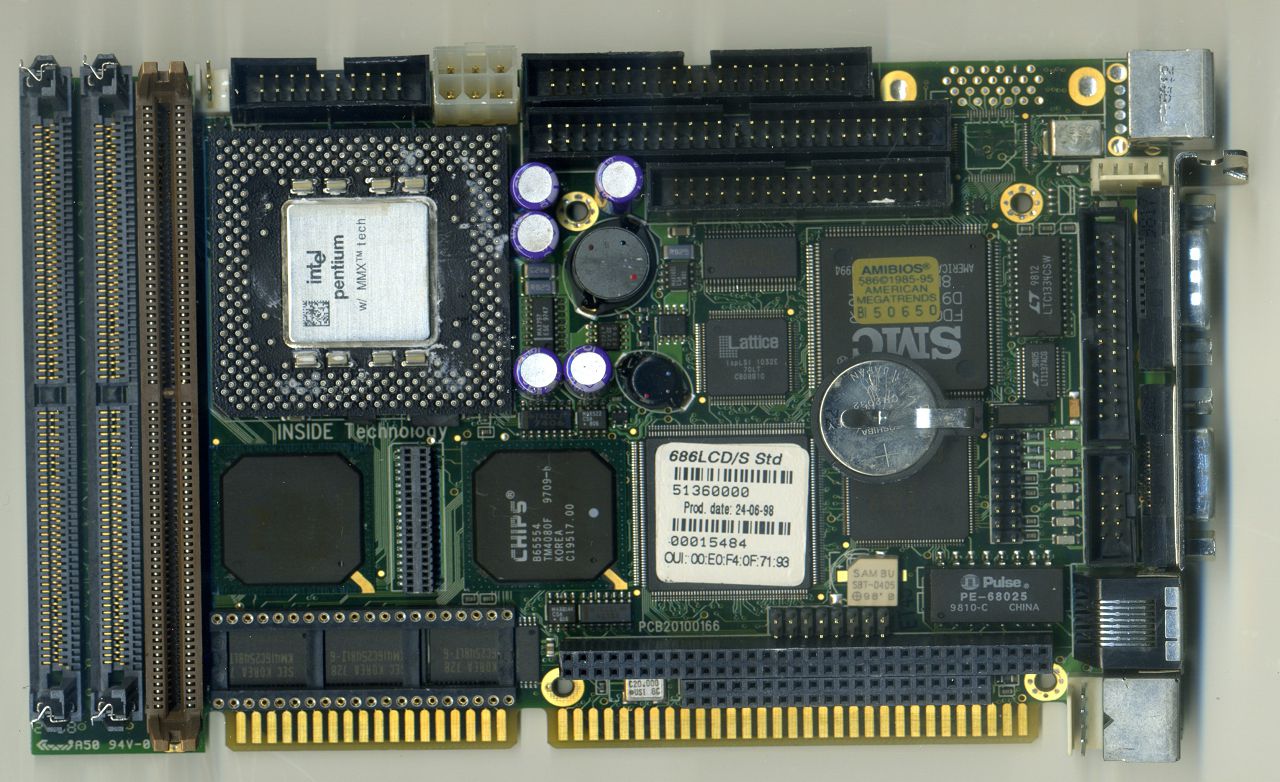

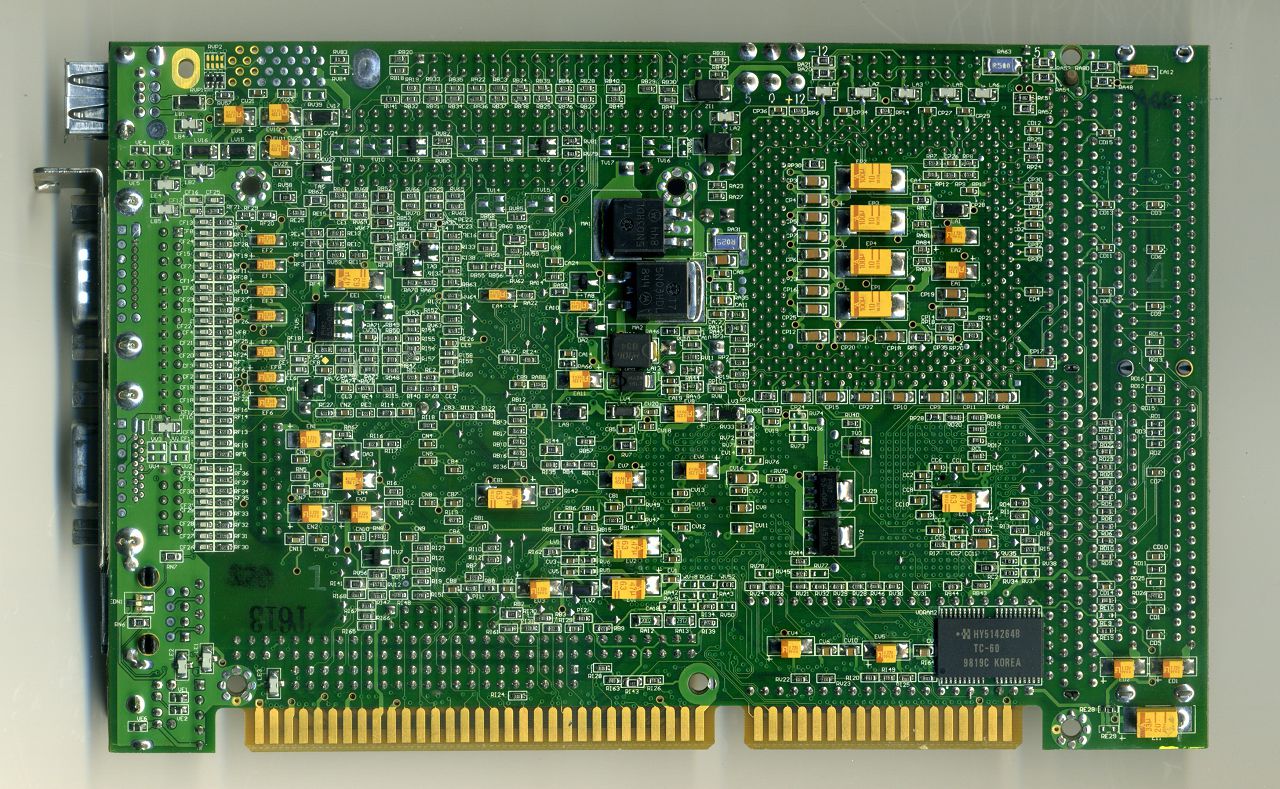

Inside Technology 686LCD/S Max 256MB RAM, 50/60/66MHz FSB Supports Intel Pentium CPU's A bunch of connectors, either exposed or as headers onboard. 1 x HDDSUB 15-PIN VGA 1 x USB1.0 1 x RS232 Serial Com 1 x PS/2 Mouse and or combined keyboard 1 x RJ-45 Year 1999 More info (but their connectors list are way off in comparsion to my cards). This particular card is currently installed in my SODAS (Stone Oakvalley Dynamic Art Stand).	Inside Technology 686LCD/S Max 256MB RAM, 50/60/66MHz FSB Supports Intel Pentium CPU's A bunch of connectors, either exposed or as headers onboard. 1 x HDDSUB 15-PIN VGA 1 x USB1.0 1 x RS232 Serial Com 1 x PS/2 Mouse and or combined keyboard 1 x RJ-45 Year 1999 More info (but their connectors list are way off in comparsion to my cards). This particular card is currently installed in my SODAS (Stone Oakvalley Dynamic Art Stand).

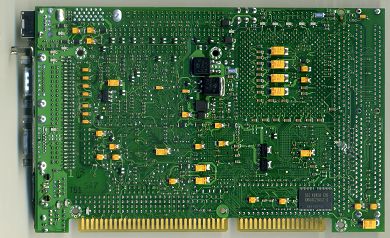

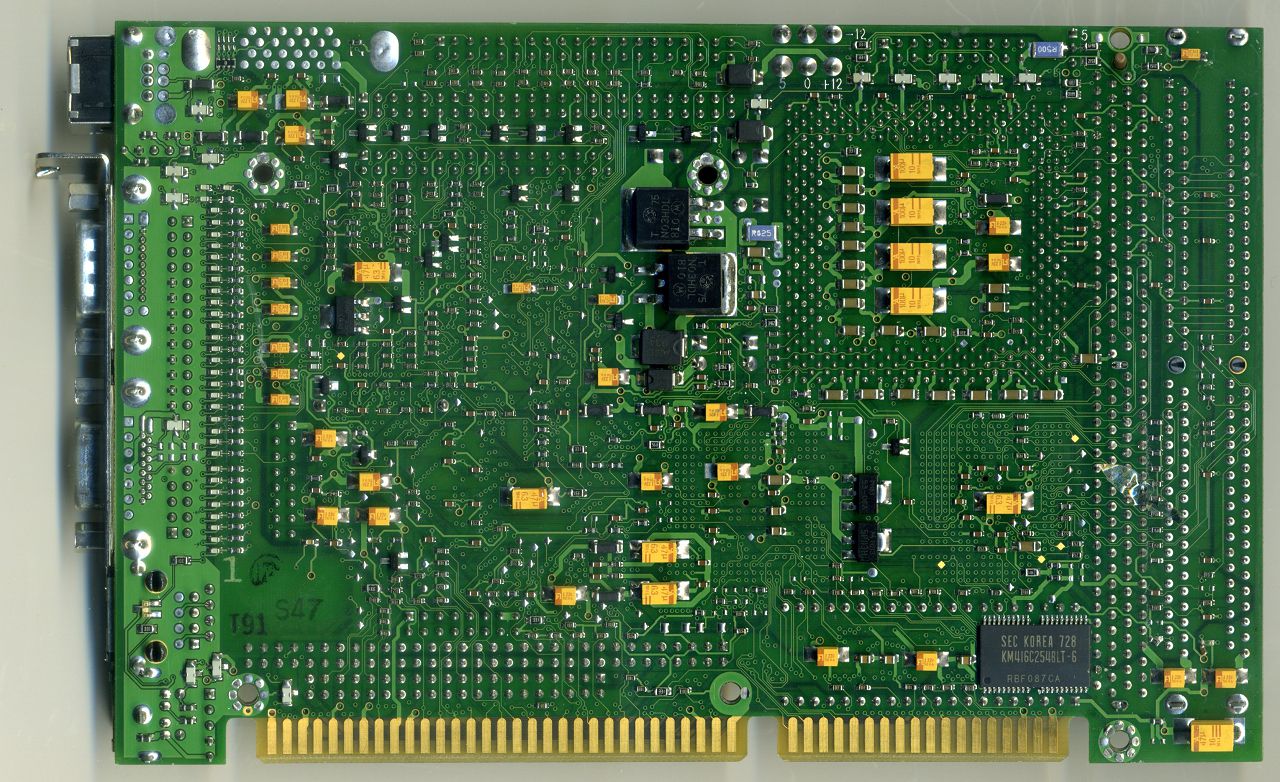

Inside Technology 686LCD/S Max 256MB RAM, 50/60/66MHz FSB Supports Intel Pentium CPU's A bunch of connectors, either exposed or as headers onboard. 1 x HDDSUB 15-PIN VGA 1 x USB1.0 1 x RS232 Serial Com 1 x PS/2 Mouse and or combined keyboard 1 x RJ-45 Year 1999 More info (but their connectors list are way off in comparsion to my cards).	Inside Technology 686LCD/S Max 256MB RAM, 50/60/66MHz FSB Supports Intel Pentium CPU's A bunch of connectors, either exposed or as headers onboard. 1 x HDDSUB 15-PIN VGA 1 x USB1.0 1 x RS232 Serial Com 1 x PS/2 Mouse and or combined keyboard 1 x RJ-45 Year 1999 More info (but their connectors list are way off in comparsion to my cards).

Inside Technology 686LCD/S Max 256MB RAM, 50/60/66MHz FSB Supports Intel Pentium CPU's A bunch of connectors, either exposed or as headers onboard. 1 x HDDSUB 15-PIN VGA 1 x USB1.0 1 x RS232 Serial Com 1 x PS/2 Mouse and or combined keyboard 1 x RJ-45 Year 1998 More info (but their connectors list are way off in comparsion to my cards).	Inside Technology 686LCD/S Max 256MB RAM, 50/60/66MHz FSB Supports Intel Pentium CPU's A bunch of connectors, either exposed or as headers onboard. 1 x HDDSUB 15-PIN VGA 1 x USB1.0 1 x RS232 Serial Com 1 x PS/2 Mouse and or combined keyboard 1 x RJ-45 Year 1998 More info (but their connectors list are way off in comparsion to my cards).

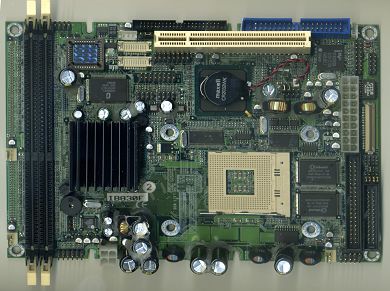

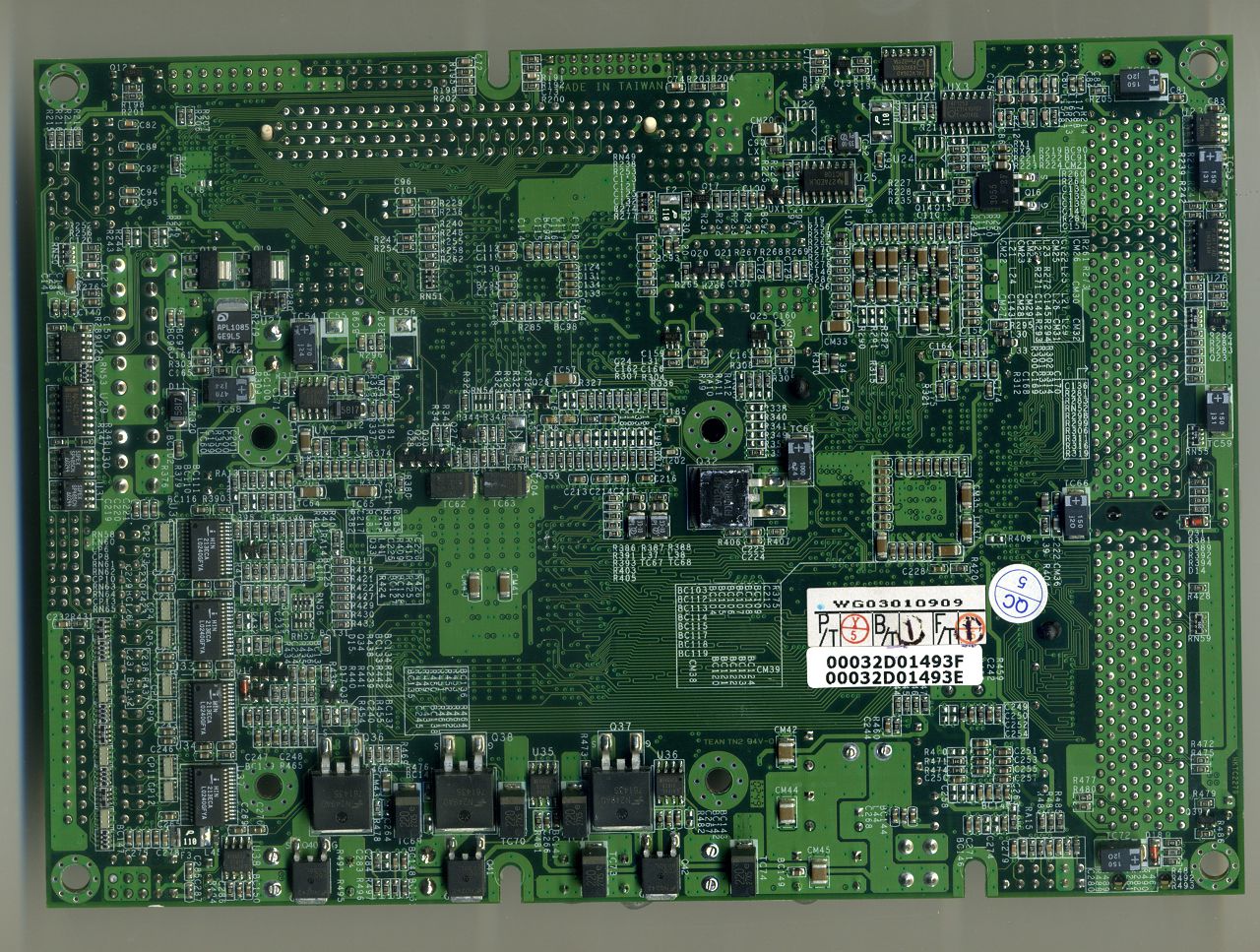

Ibase IB830F Max 2GB RAM, 533/400MHz FSB Socket 478, supports Intel Pentium 4, 1.30GHz~3.06GHz+ The ports are header based, and I will let the picture speak for itself. Year 2002 More info	Ibase IB830F Max 2GB RAM, 533/400MHz FSB Socket 478, supports Intel Pentium 4, 1.30GHz~3.06GHz+ The ports are header based, and I will let the picture speak for itself. Year 2002 More info

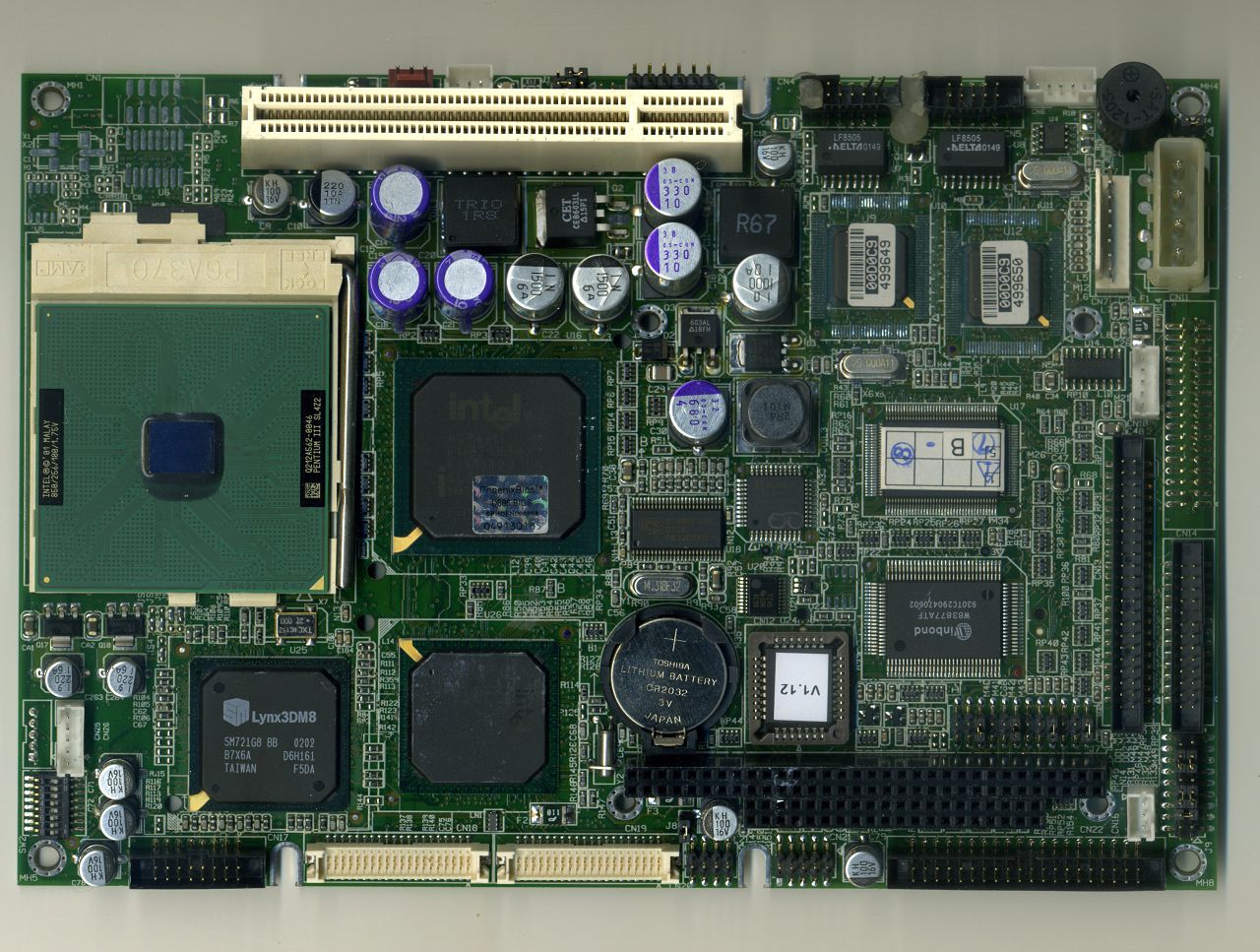

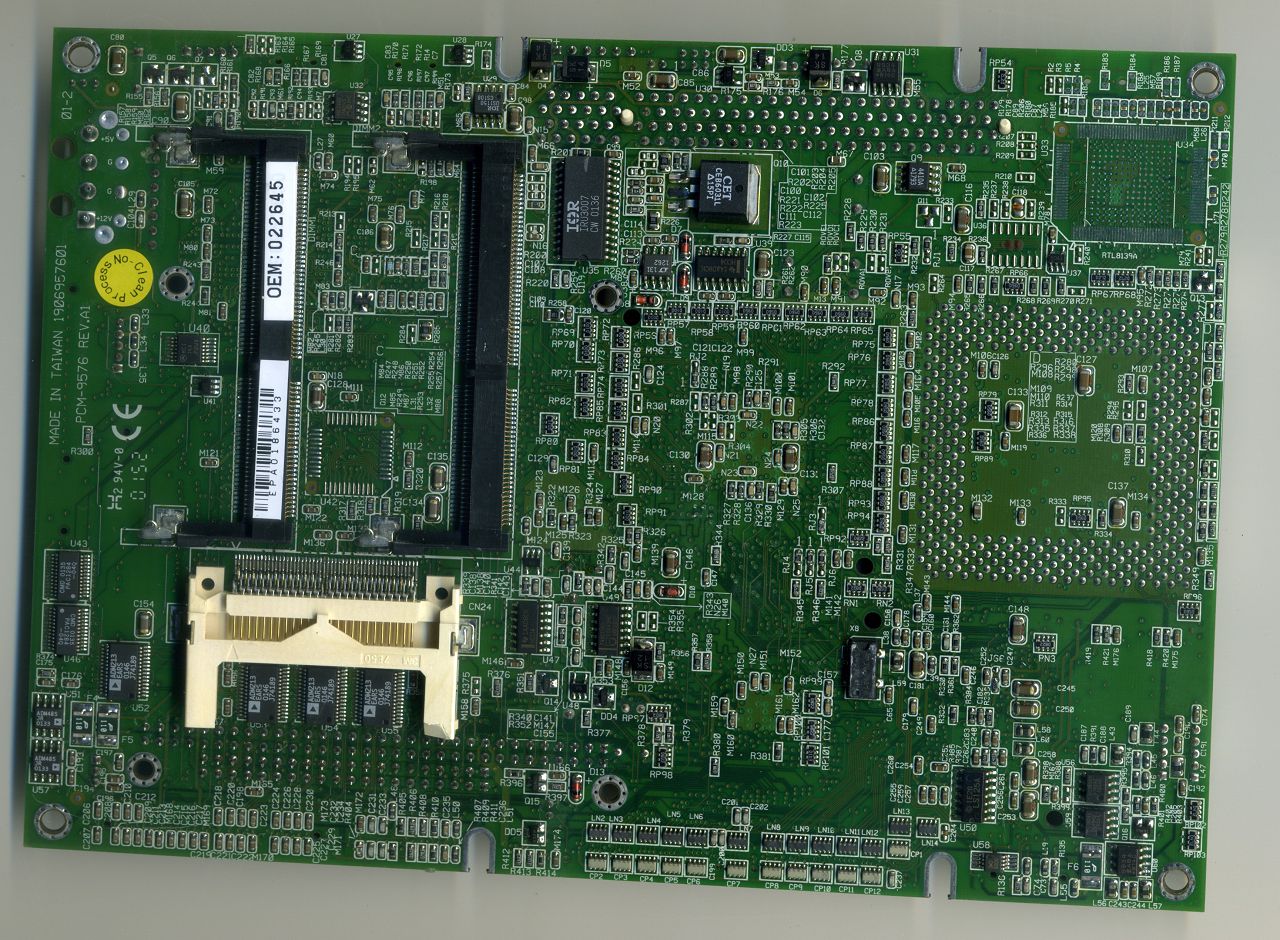

Advantech PCM-9576 Socket 370, Support Celeron™/Pentium ® III up to 850MHz. Max 512MB, 100MHz FSB The ports are header based, and I will let the picture speak for itself. Year 2001 More info and Newsletter	Advantech PCM-9576 Socket 370, Support Celeron™/Pentium ® III up to 850MHz. Max 512MB, 100MHz FSB The ports are header based, and I will let the picture speak for itself. Year 2001 More info and Newsletter

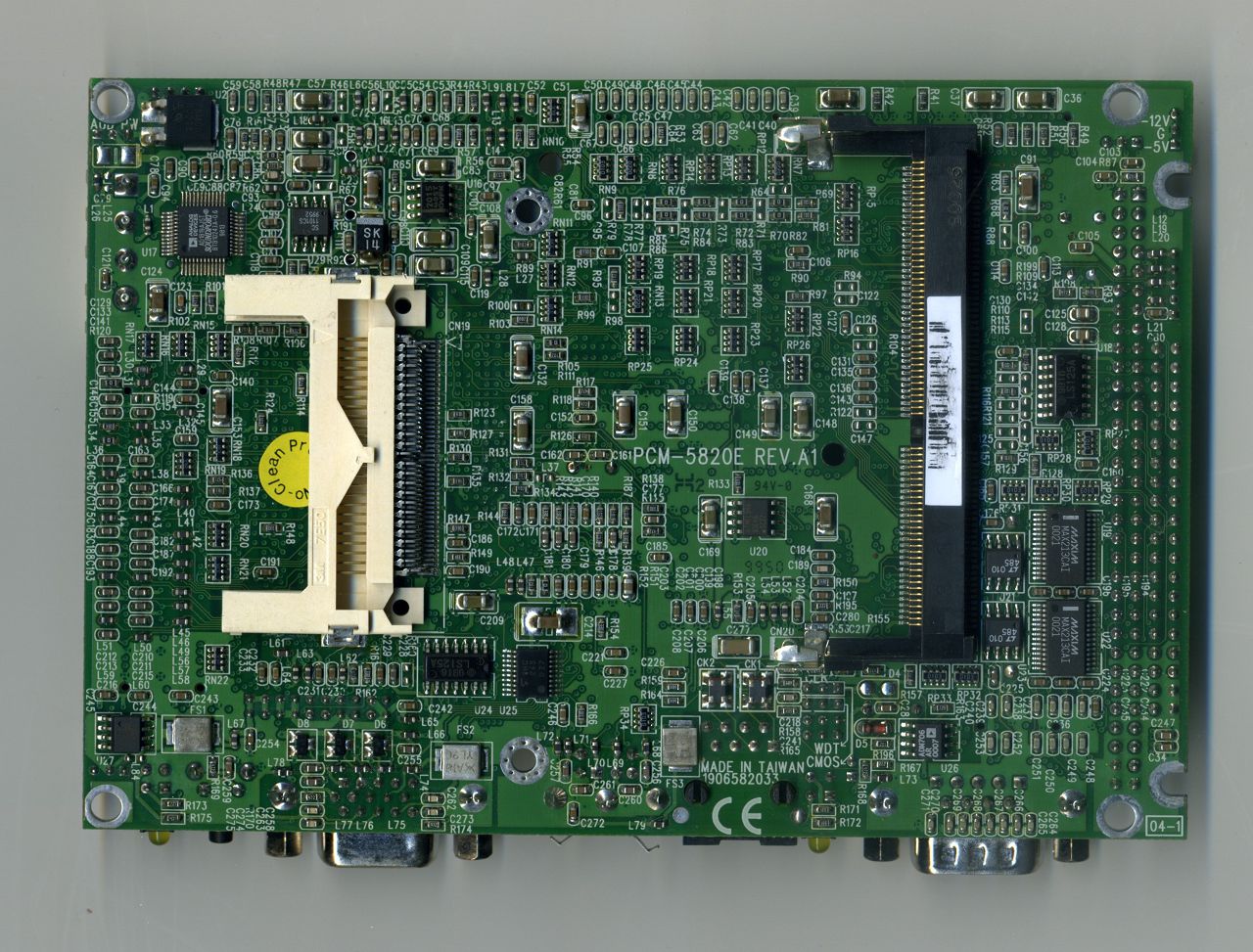

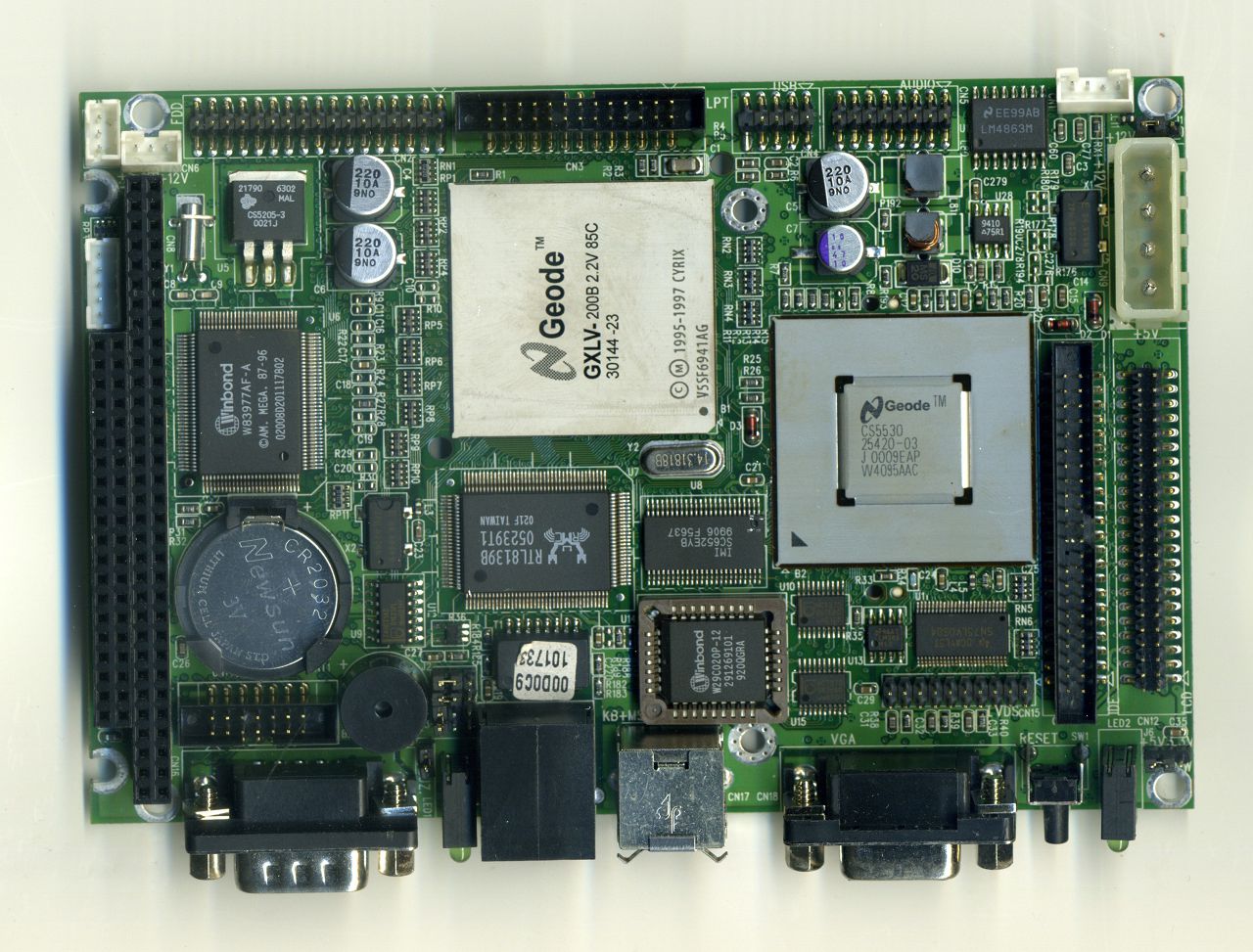

Advantech PCM-5820E REV.A1 Max 128MB, On-board NS GXM-233/200 CPU 1 x RS-232 Serial COM 1 x RJ-45 1 x PS/2 Mouse and or combined keyboard 1 x 15-pin HDDSUB VGA Other ports are header based, and I will let the picture speak for itself. Year 1999 More info and Newsletter	Advantech PCM-5820E REV.A1 Max 128MB, On-board NS GXM-233/200 CPU 1 x RS-232 Serial COM 1 x RJ-45 1 x PS/2 Mouse and or combined keyboard 1 x 15-pin HDDSUB VGA Other ports are header based, and I will let the picture speak for itself. Year 1999 More info and Newsletter

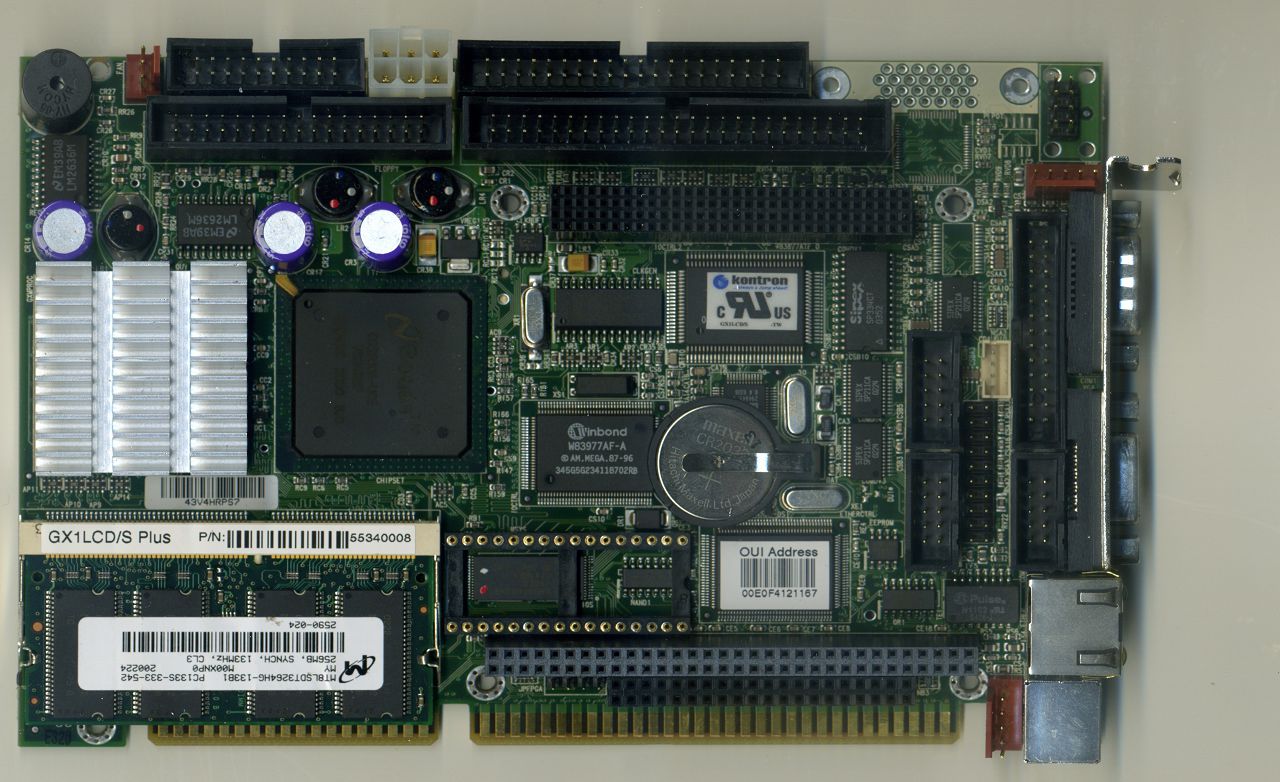

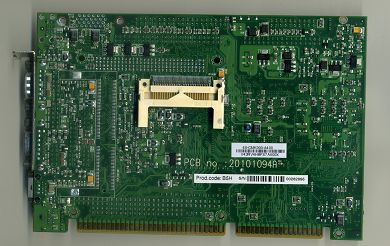

Kontron GX1LCD/S PLUS Max 128MB On-board Geode GX1 Processor CPU 300MHz 1 x RS-232 Serial COM 1 x 15-pin HDDSUB VGA 1 x RJ-45 1 x PS/2 Mouse and or combined keyboard Other ports are header based, and I will let the picture speak for itself. Year 2002 More info	Kontron GX1LCD/S PLUS Max 128MB On-board Geode GX1 Processor CPU 300MHz 1 x RS-232 Serial COM 1 x 15-pin HDDSUB VGA 1 x RJ-45 1 x PS/2 Mouse and or combined keyboard Other ports are header based, and I will let the picture speak for itself. Year 2002 More info
