My collection of ISA / PCI / AGP based PC cards - approx 100 pcs!
in Nostalgia | Sunday, December 31, 2023 | 17:04


Over the years, all the way back from 1996 (when I got my first PC) until now, PCI cards were always around and always needed. The following collection is my own and consists of my own bought cards, a wealth of random found-in-trash-cards as well as from various PC cabinets that came through my fingers.


These are 99% all working, and have been stored properly in anti-static bags unless inside a PC. Some cards are legendary, both in terms of their age, but also because they served in my own projects that ran over the course from 2006 and until 2022 (SOASC= and SOAMC=).

The amount of cards have accumulated into such a big box of almost 100 cards, that I somewhat had lost control of what I really have as its been 27 years in the making!

All cards have been scanned front and back, and sometimes on the sides (typically huge AGP cards).

From my personal notes, I got my first Windows 95 based PC back in late 1996, just in time for christmas, and the main usage was FastTracker 2 and Star Wars - Dark Forces in DOS. So, this last post of the year 2023 marks a 27 years journey for me!


Note: Typenumber and function of card was finalized 25 June 2025 (after 1.5 years, phew!). Just some adapters missing, but they speak for themselves. I used DOS Days - Hardware Index to identify and learn about older cards.

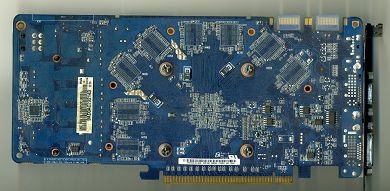

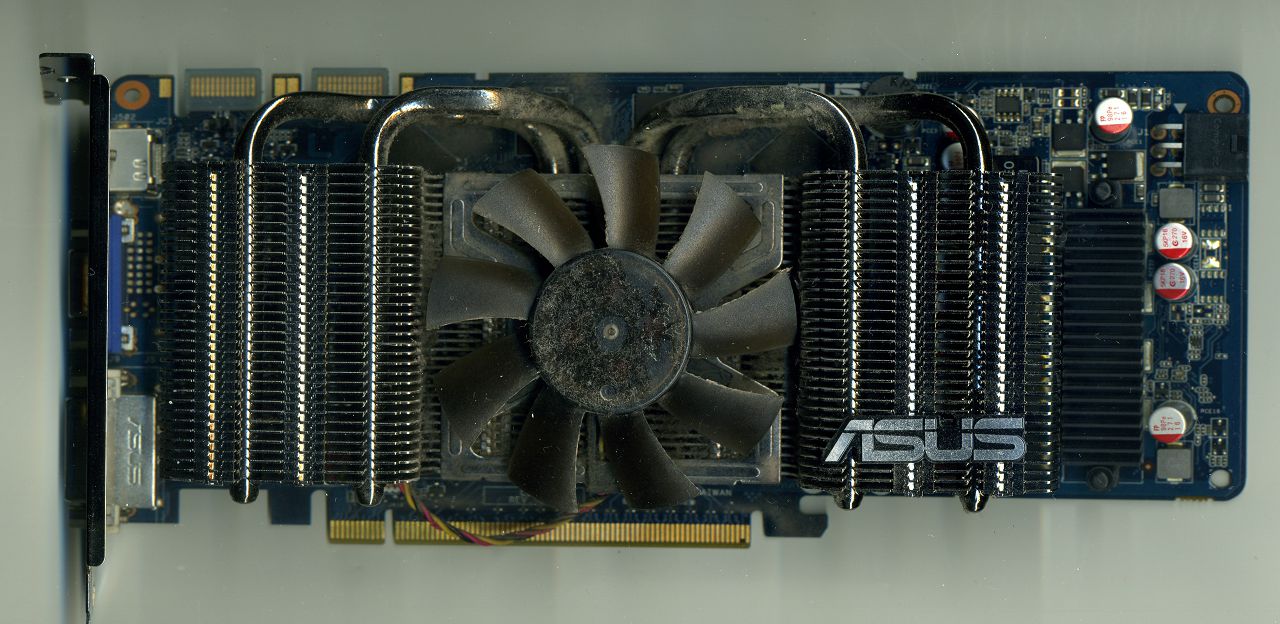

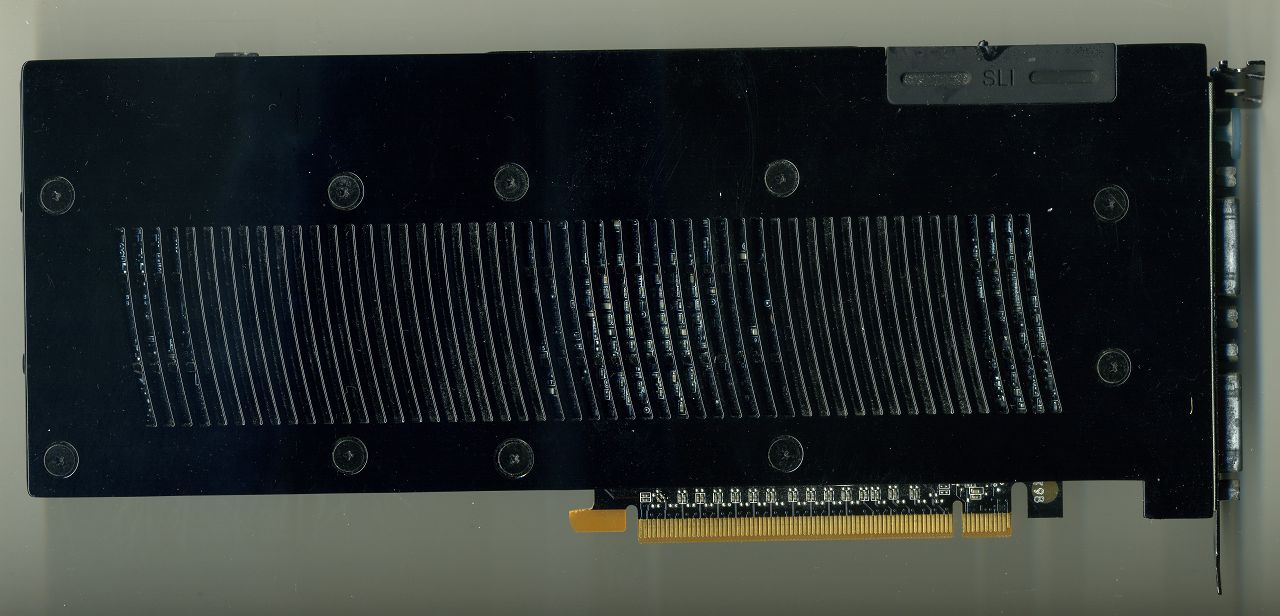

ASUS NVIDIA GeForce GTX260 2DVI PCI-E GFX Card
ENGTX260HTDI896MD3
896MB GDDR3
2 x DVI, SLI
2008



ASUS NVIDIA GeForce GTX260 2DVI PCI-E GFX Card
ENGTX260HTDI896MD3
896MB GDDR3
2 x DVI, SLI
2008



ASUS NVIDIA GeForce GTX260 2DVI PCI-E GFX Card
ENGTX260HTDI896MD3
896MB GDDR3
2 x DVI, SLI
2008



ASUS NVIDIA GeForce GTX260 2DVI PCI-E GFX Card
ENGTX260HTDI896MD3
896MB GDDR3
2 x DVI, SLI
2008

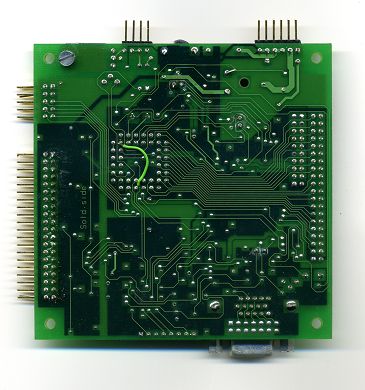

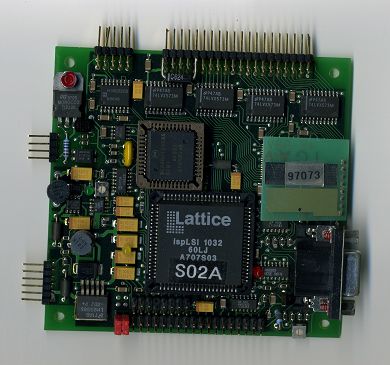

Unknown card
Main Chips:
CPLD (Lattice ispLSI 1032).
Motorola MC68HC705C8A

ChatGPT thinks:
This card probably generates VGA signals directly, supporting:
- Static image or test patterns
- Character/text display (e.g., terminal)
- Maybe even low-res graphics
- All driven by programmable logic, with the MCU feeding or controlling what is displayed.

A 1990s-era programmable VGA signal generator board, likely used for education, prototyping, or retro computing. The CPLD creates VGA sync and RGB timing, while the MCU handles control logic or serial communication for dynamic content.

1997



Unknown card
Main Chips:
CPLD (Lattice ispLSI 1032).
Motorola MC68HC705C8A

ChatGPT thinks:
This card probably generates VGA signals directly, supporting:
- Static image or test patterns
- Character/text display (e.g., terminal)
- Maybe even low-res graphics
- All driven by programmable logic, with the MCU feeding or controlling what is displayed.

A 1990s-era programmable VGA signal generator board, likely used for education, prototyping, or retro computing. The CPLD creates VGA sync and RGB timing, while the MCU handles control logic or serial communication for dynamic content.

1997

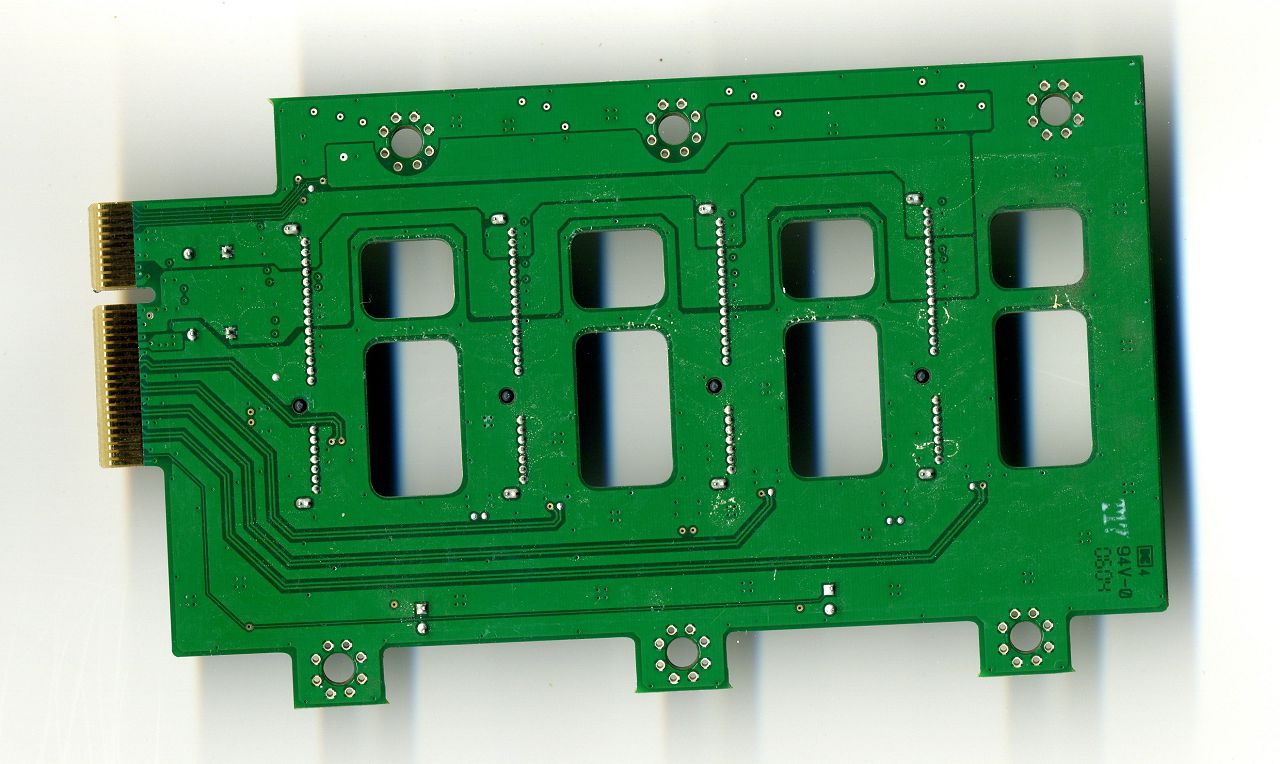

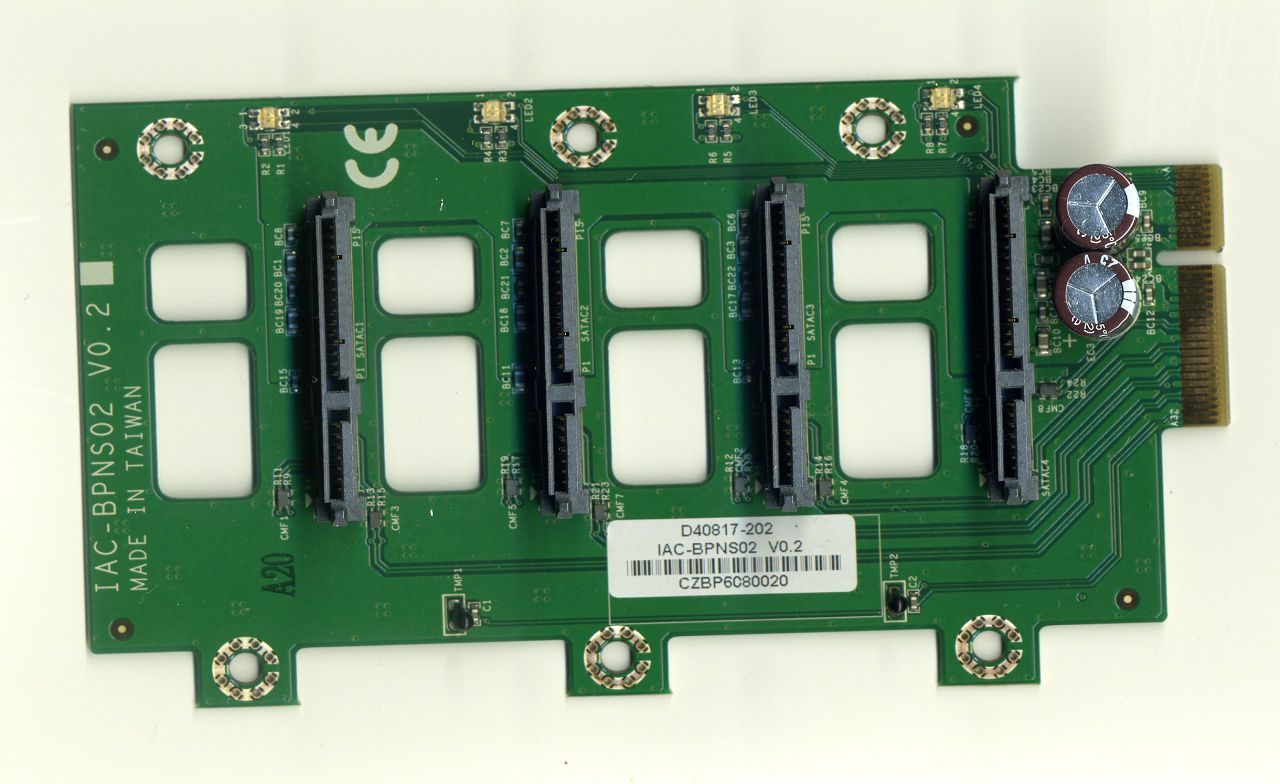

This is a PCI-Express backplane/daughterboard for a multi-slot hot-swap SAS/SATA drive cage - it distributes PCIe/SAS lanes from a host card to four drive slots.



This is a PCI-Express backplane/daughterboard for a multi-slot hot-swap SAS/SATA drive cage - it distributes PCIe/SAS lanes from a host card to four drive slots.

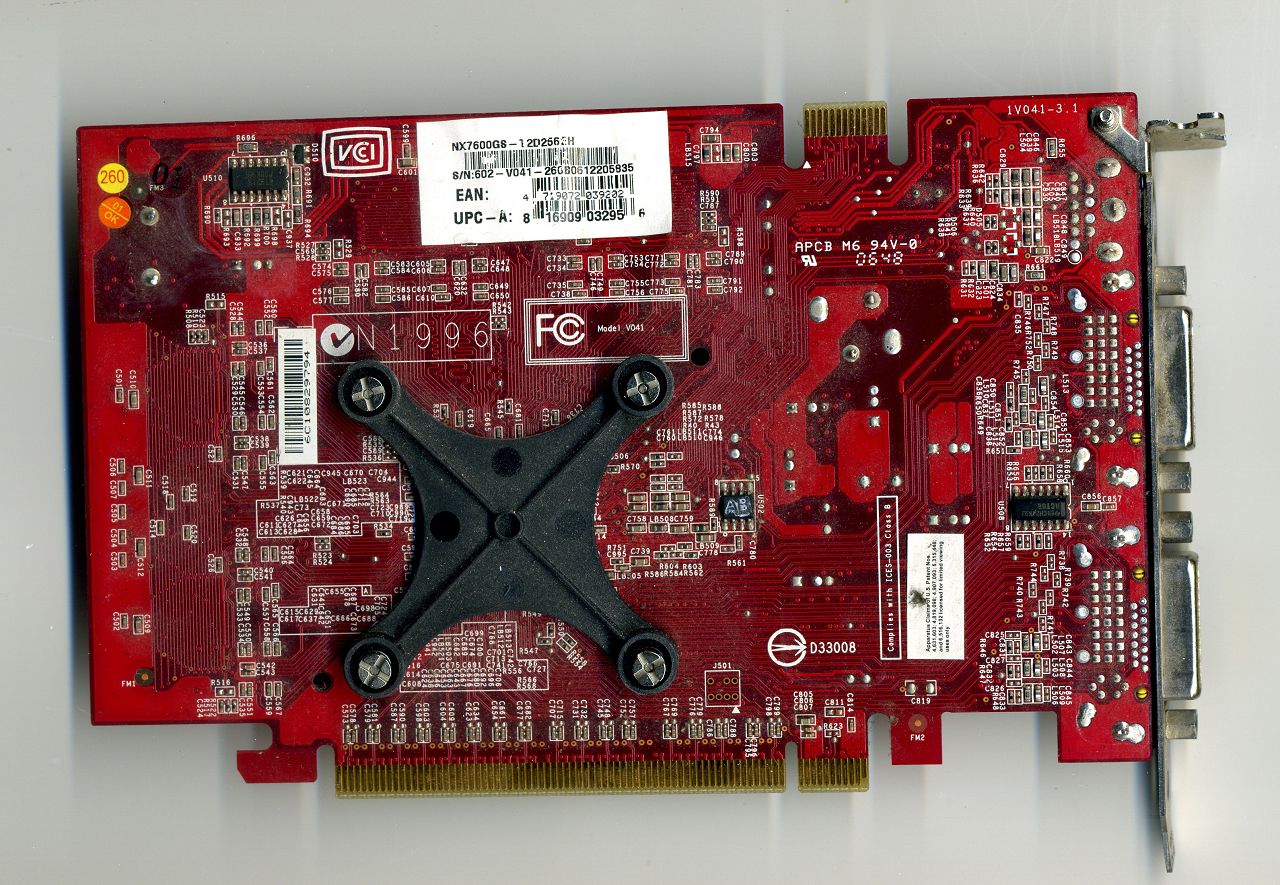

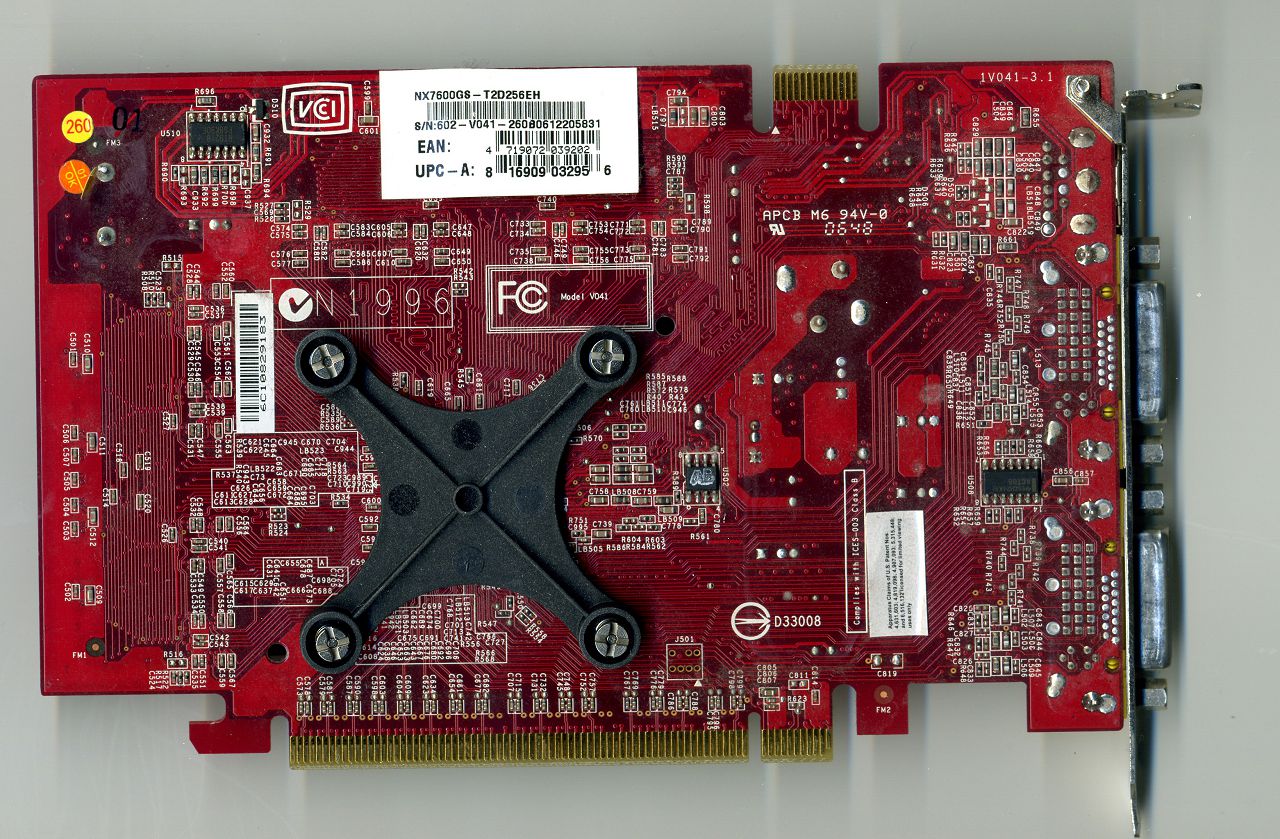

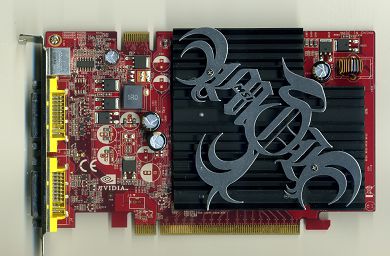

MSI NX7600GS-T2D256EH PCI-E GFX Card
256MB GDDR2
2 x DVI
1 x HDTV / S-Video Out
2006



MSI NX7600GS-T2D256EH PCI-E GFX Card
256MB GDDR2
2 x DVI
1 x HDTV / S-Video Out
2006

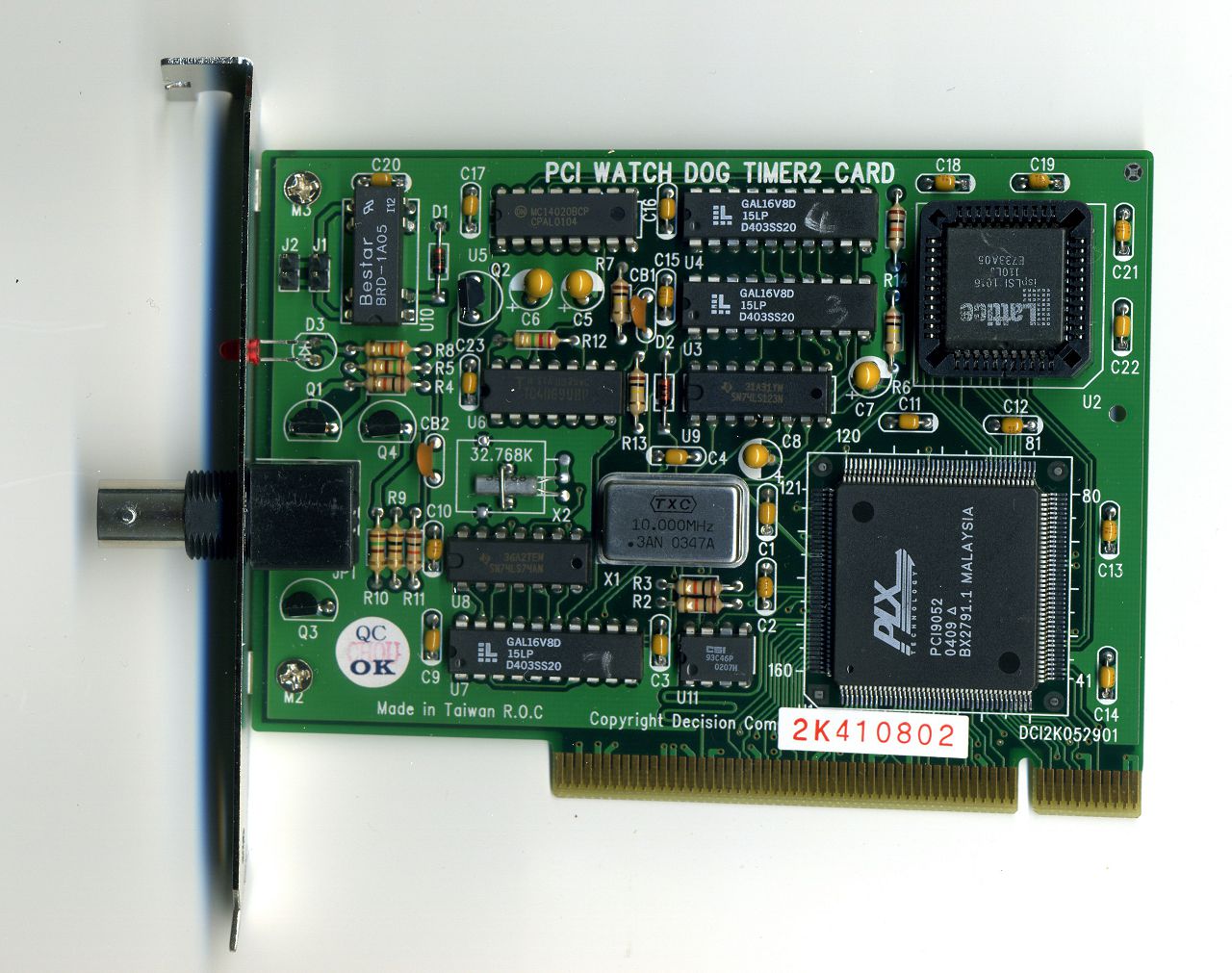

Decision Computer International - PCI WATCH DOG TIMER2 CARD



Decision Computer International - PCI WATCH DOG TIMER2 CARD

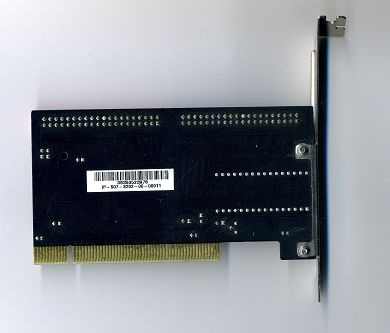

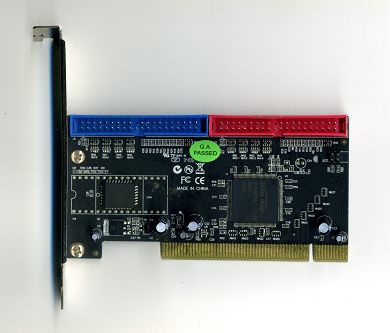

Sunsway/ST Lab - PCI-IDECMD0680R
PCI ATA 133 Controller / PCI ATA 133 Raid Controller
2x IDE connector (40-pin header)
2006



Sunsway/ST Lab - PCI-IDECMD0680R
PCI ATA 133 Controller / PCI ATA 133 Raid Controller
2x IDE connector (40-pin header)
2006

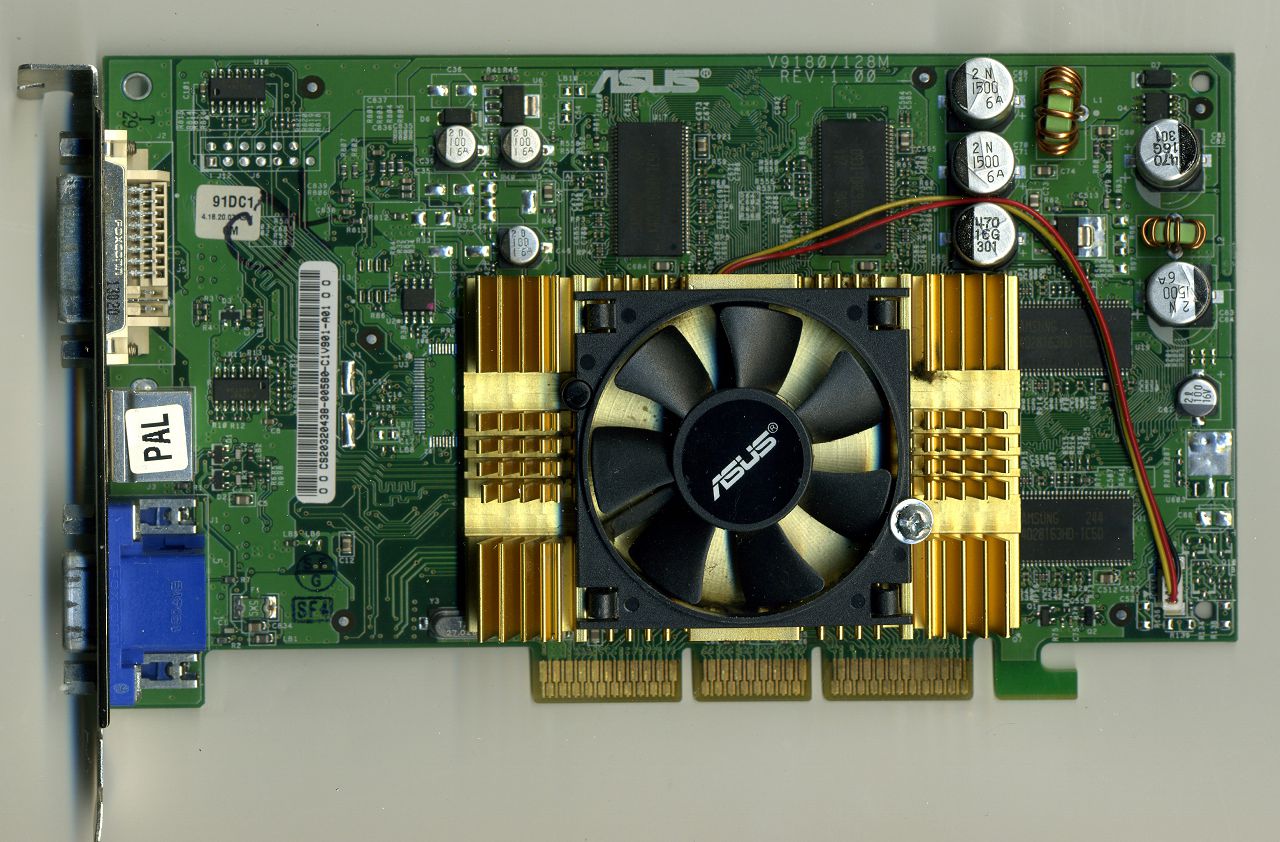

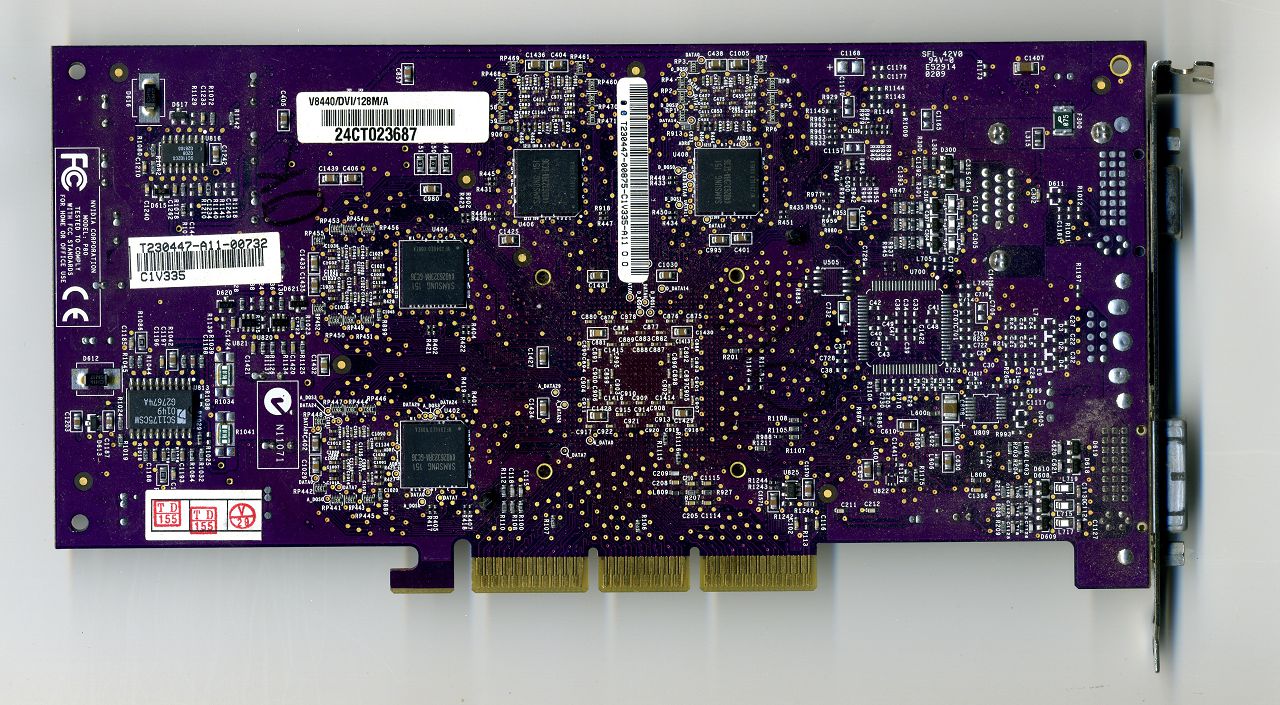

ASUS V8440/128M, AGP, GFX Card
128MB DDR SDRAM
VGA, VR-OUT, DVI, and S-Video
2002




ASUS V8440/128M, AGP, GFX Card
128MB DDR SDRAM
VGA, VR-OUT, DVI, and S-Video
2002

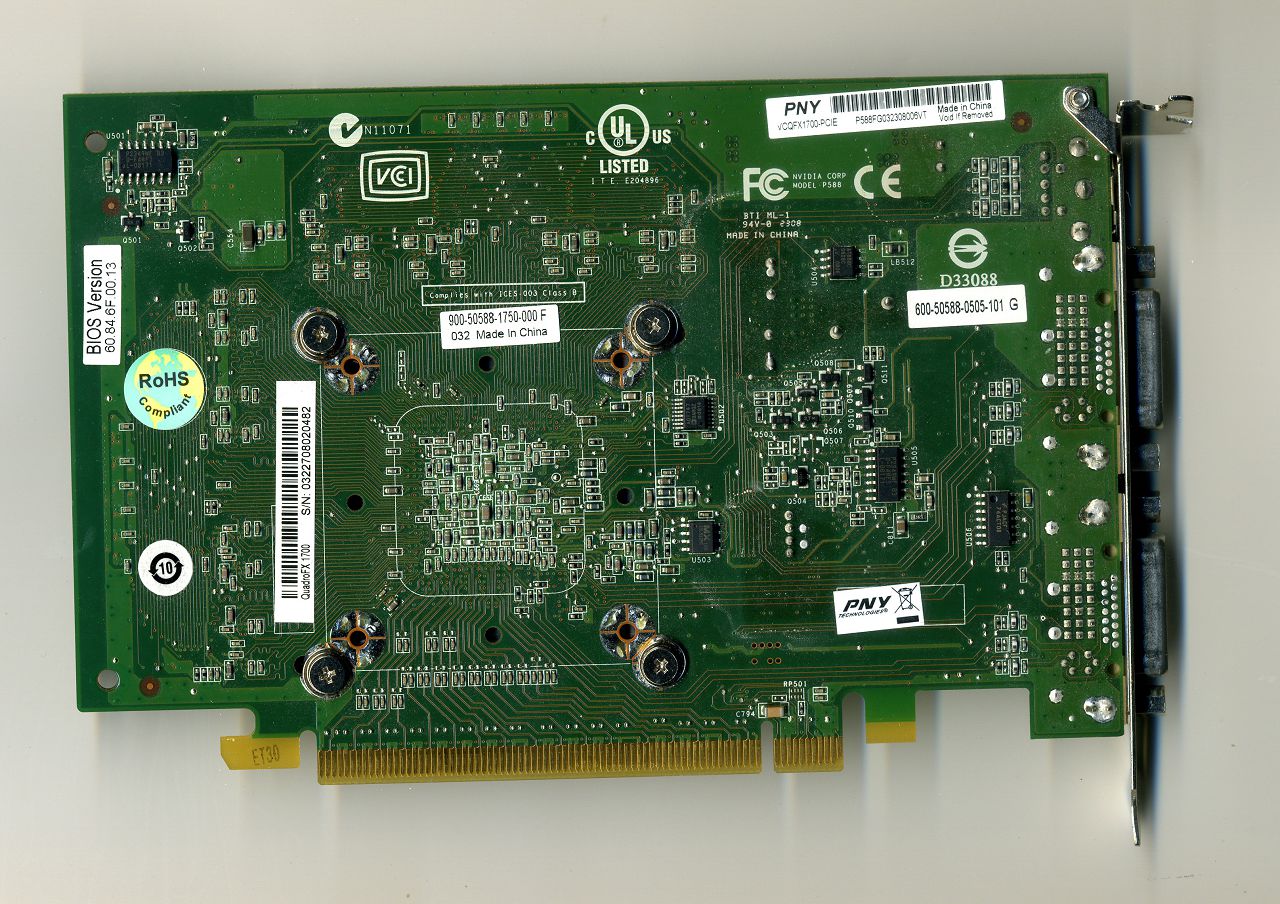

PNY VCQFX1700-PCIE-PB Quadro FX 1700 GFX Card
512MB
DVI-I, DVI-I, HD/SD video out
2007



PNY VCQFX1700-PCIE-PB Quadro FX 1700 GFX Card
512MB
DVI-I, DVI-I, HD/SD video out
2007



MSI NX7600GS-T2D256EH PCI-E GFX Card
256MB GDDR2
2 x DVI
1 x HDTV / S-Video Out
2006



MSI NX7600GS-T2D256EH PCI-E GFX Card
256MB GDDR2
2 x DVI
1 x HDTV / S-Video Out
2006



SMC SMCWPCIT-G EU SMCWLESS ADAP PCI 108MBPS
Wireless LAN
REV 1.4
2006



SMC SMCWPCIT-G EU SMCWLESS ADAP PCI 108MBPS
Wireless LAN
REV 1.4
2006

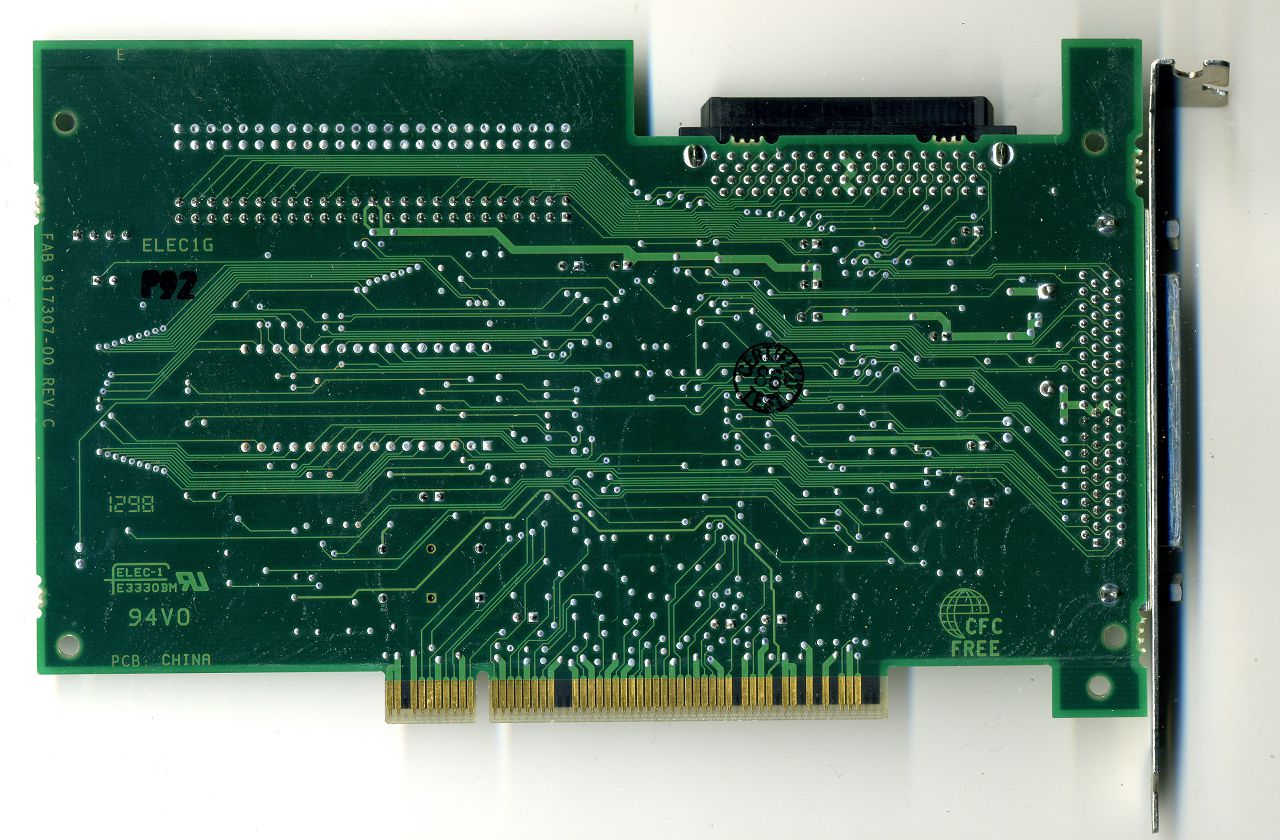

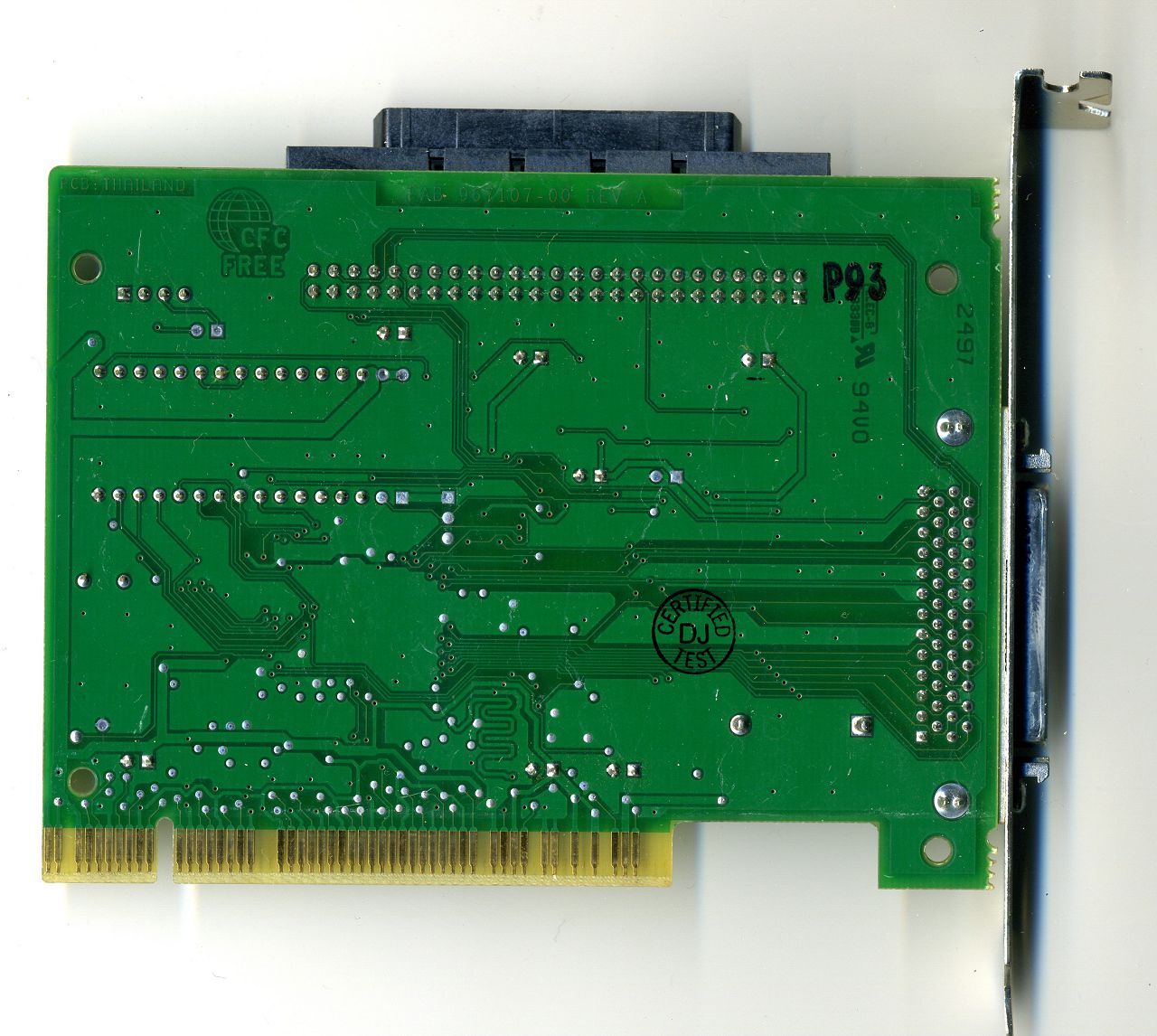

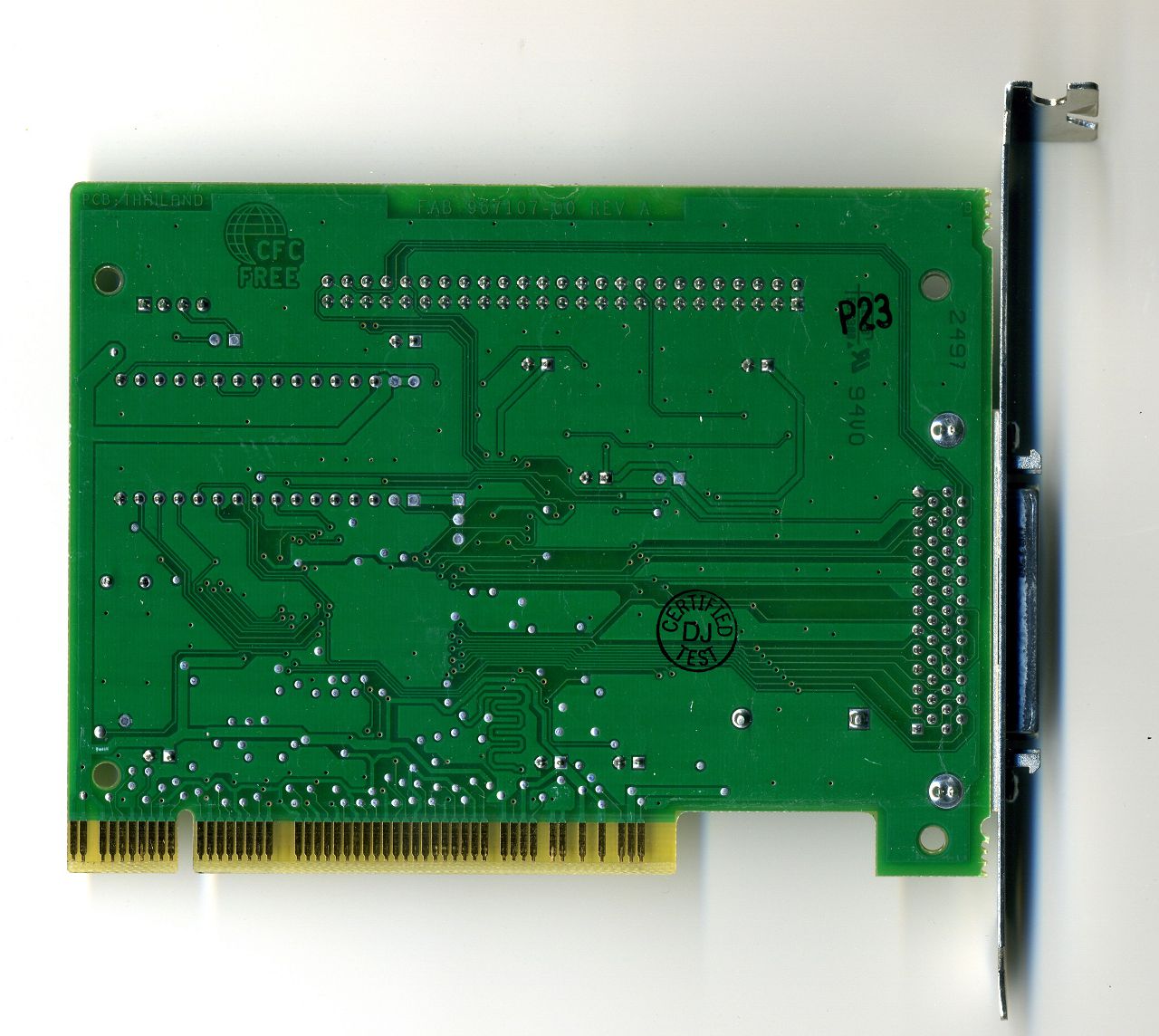

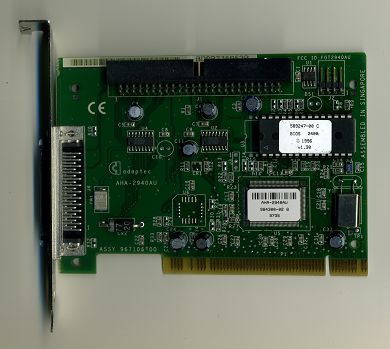

Adaptec AHA-2940AU PCI SCSI Controller
1 x SCSI (50-pin header) - 2x25 2.54mm pin header
1 x SCSI HD50 - SCSI HD50
1997



Adaptec AHA-2940AU PCI SCSI Controller
1 x SCSI (50-pin header) - 2x25 2.54mm pin header
1 x SCSI HD50 - SCSI HD50
1997

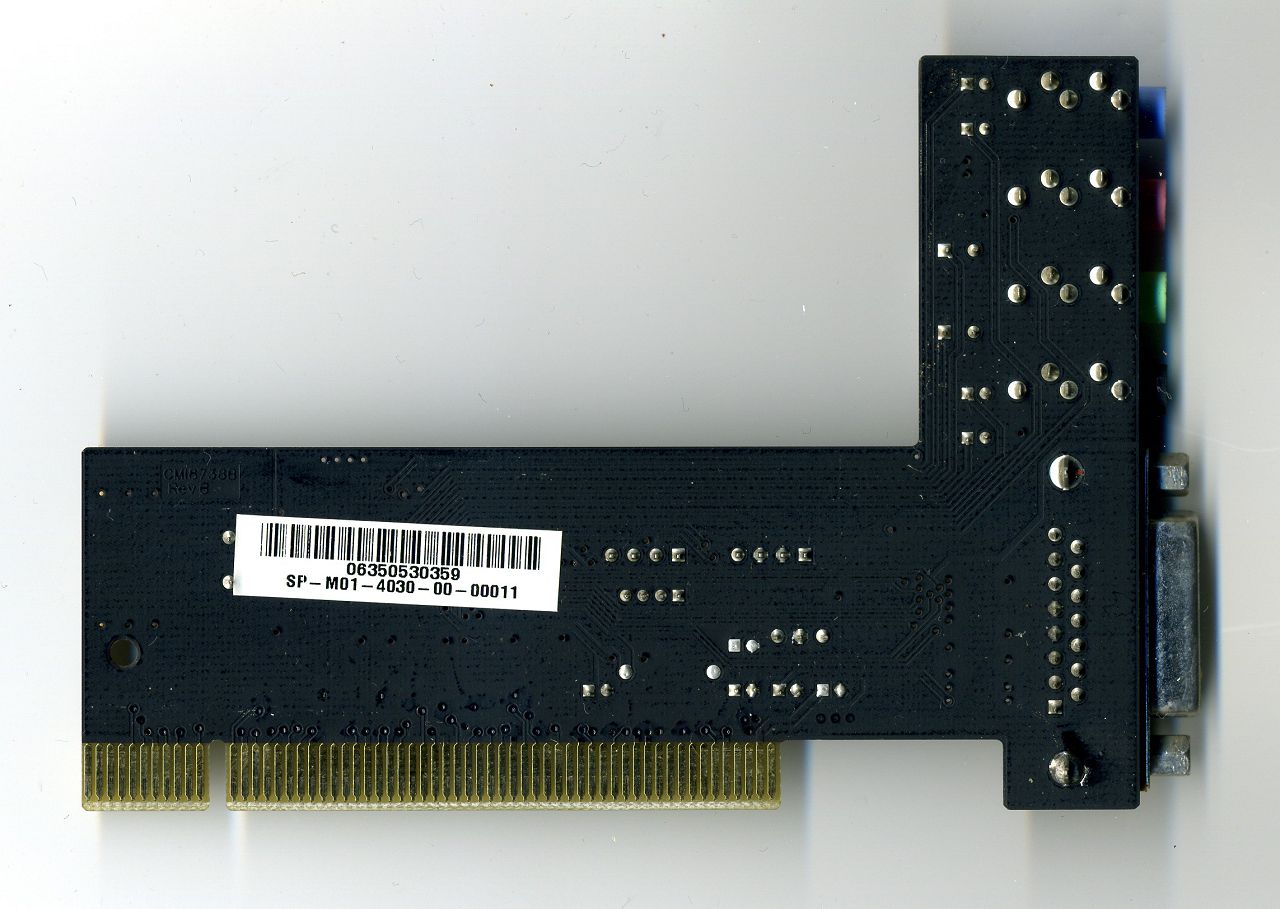

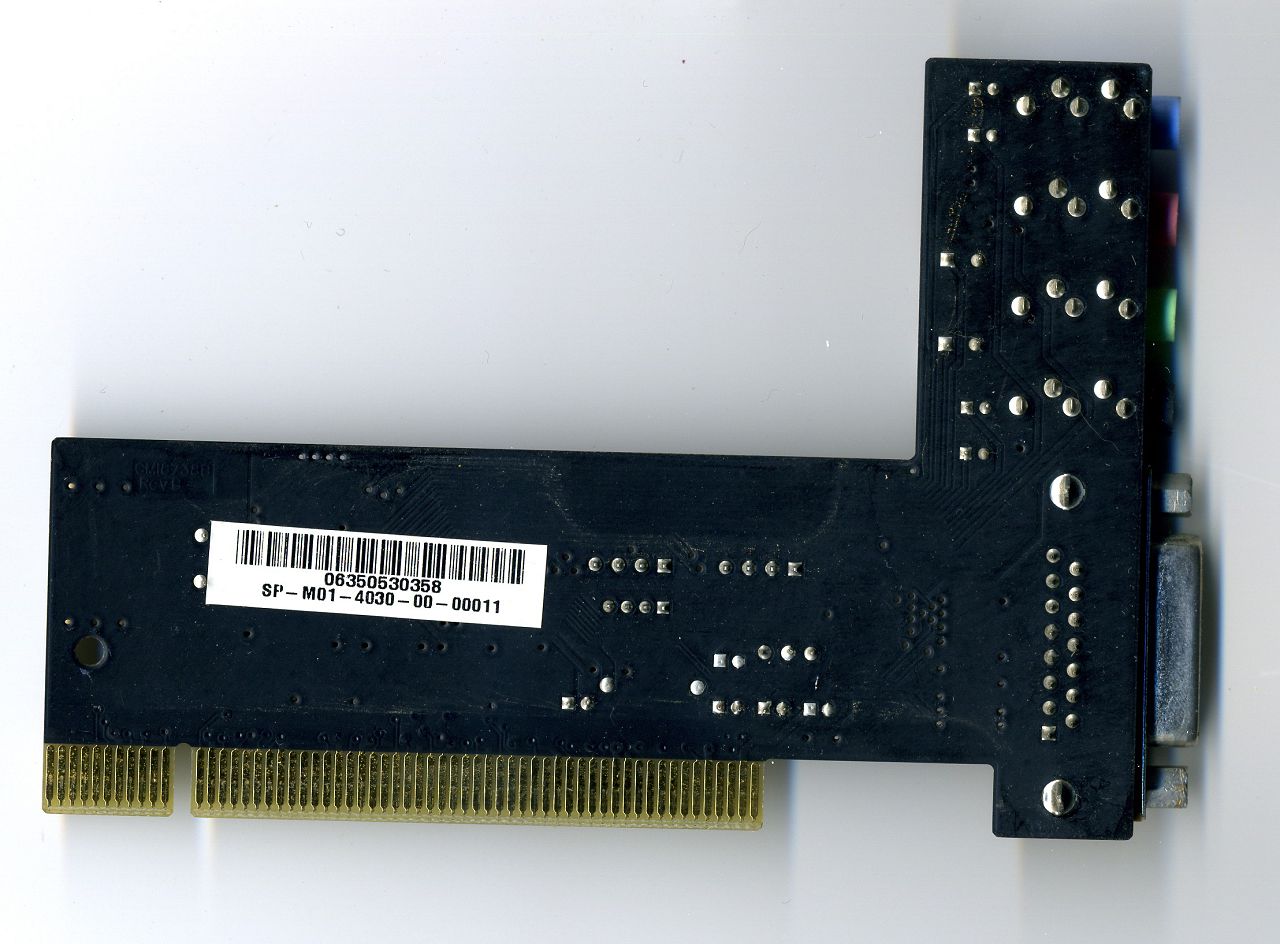

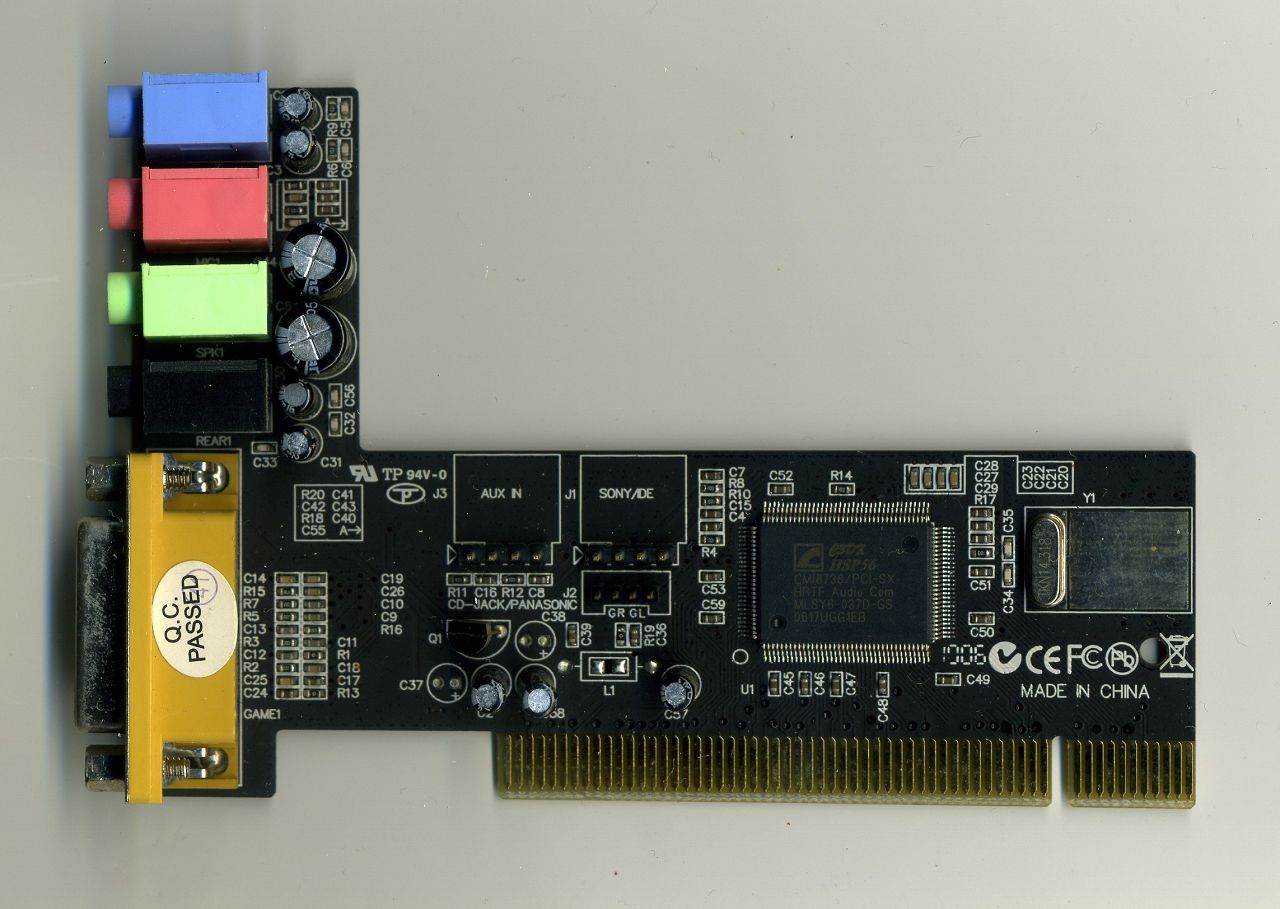

C-Media CMI8738-PCI-SX PCI Audio Card
Outputs: 3.5mm jacks for front, rear, mic, and line-in; game/MIDI port.
Connectors: CD-in, AUX-in headers
2003



C-Media CMI8738-PCI-SX PCI Audio Card
Outputs: 3.5mm jacks for front, rear, mic, and line-in; game/MIDI port.
Connectors: CD-in, AUX-in headers
2003



ESI Juli@ (24-bit 192Khz ADC, 114dB, and DAC 112dB sound card)



ESI Juli@ (24-bit 192Khz ADC, 114dB, and DAC 112dB sound card)

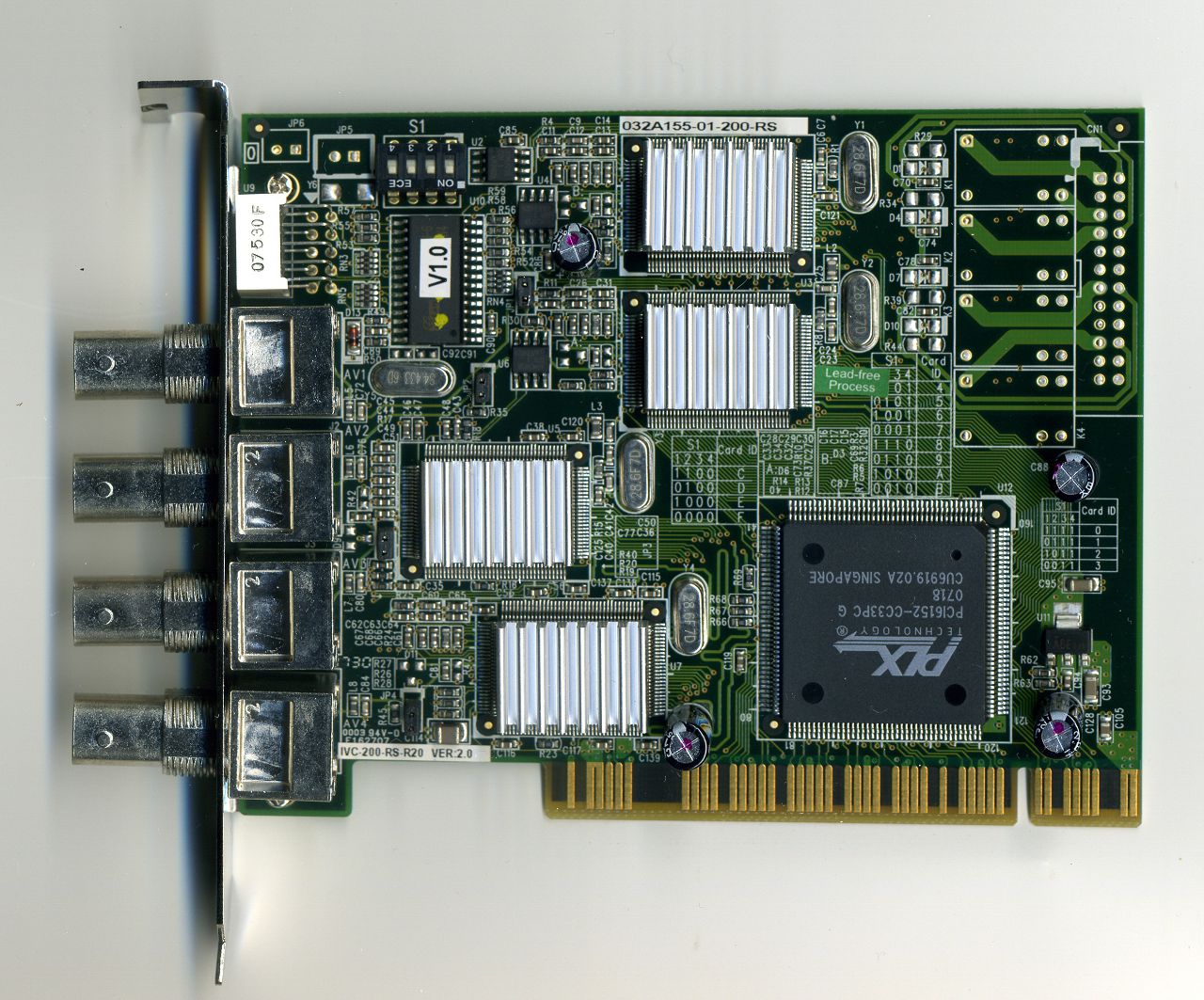

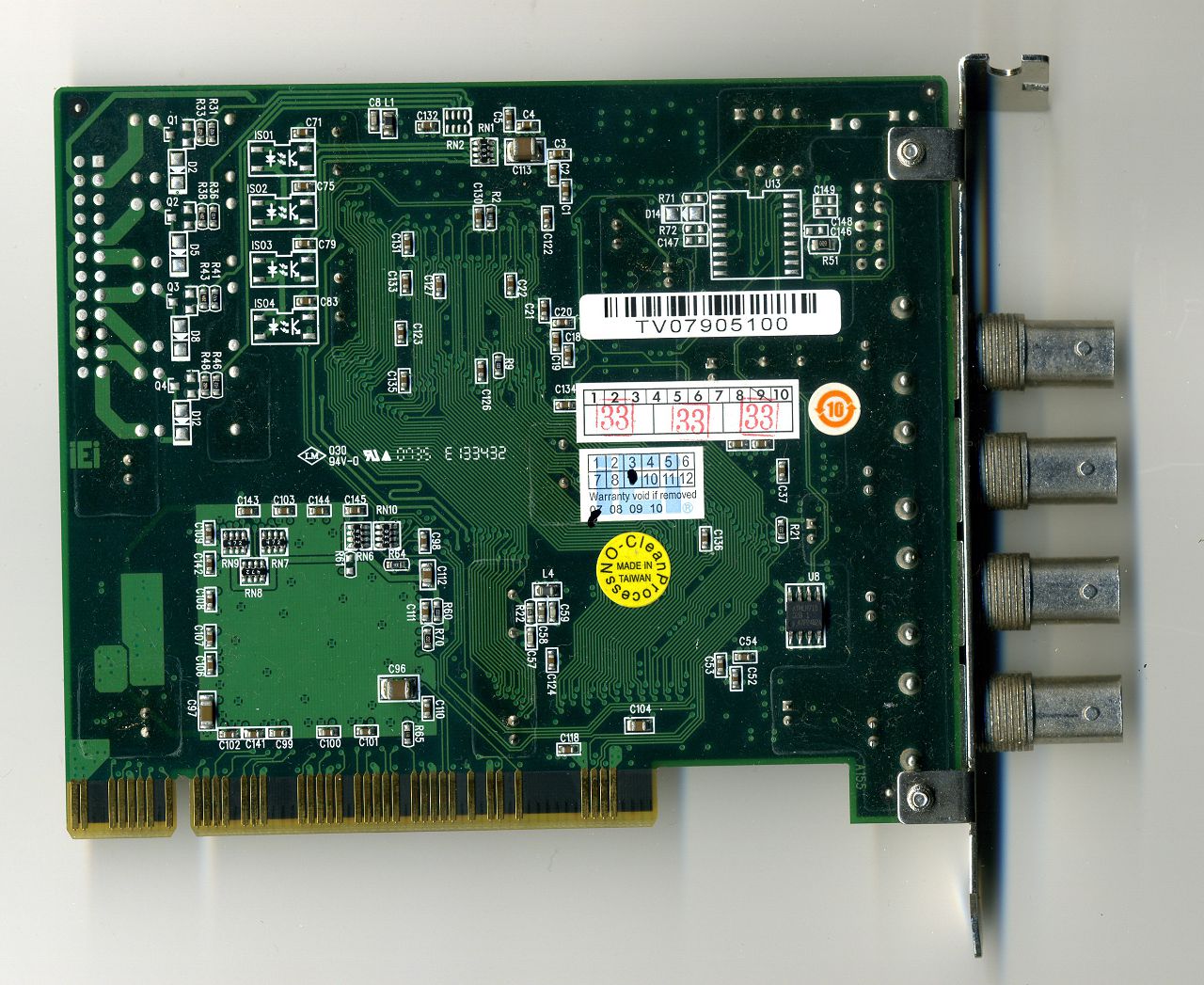

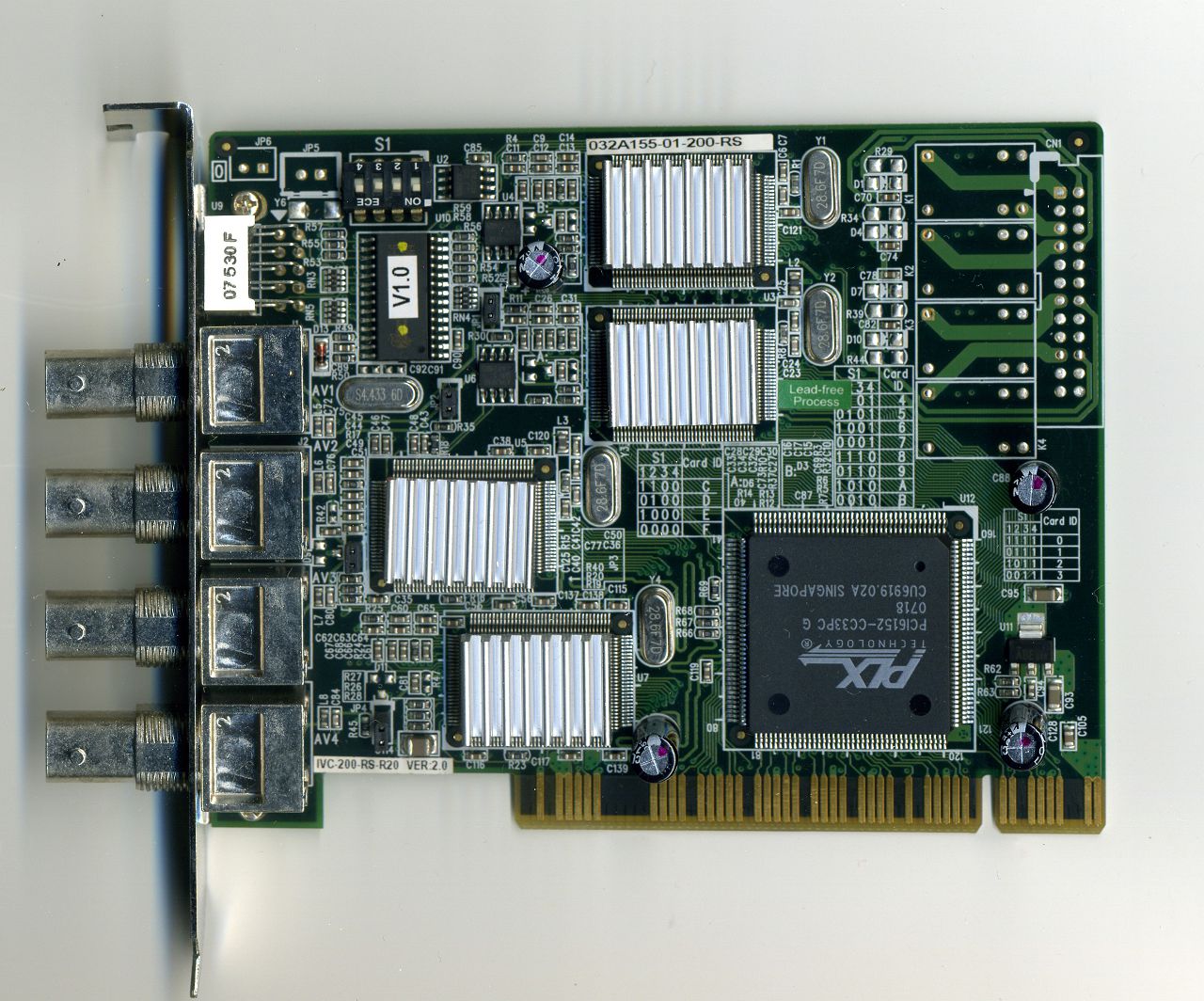

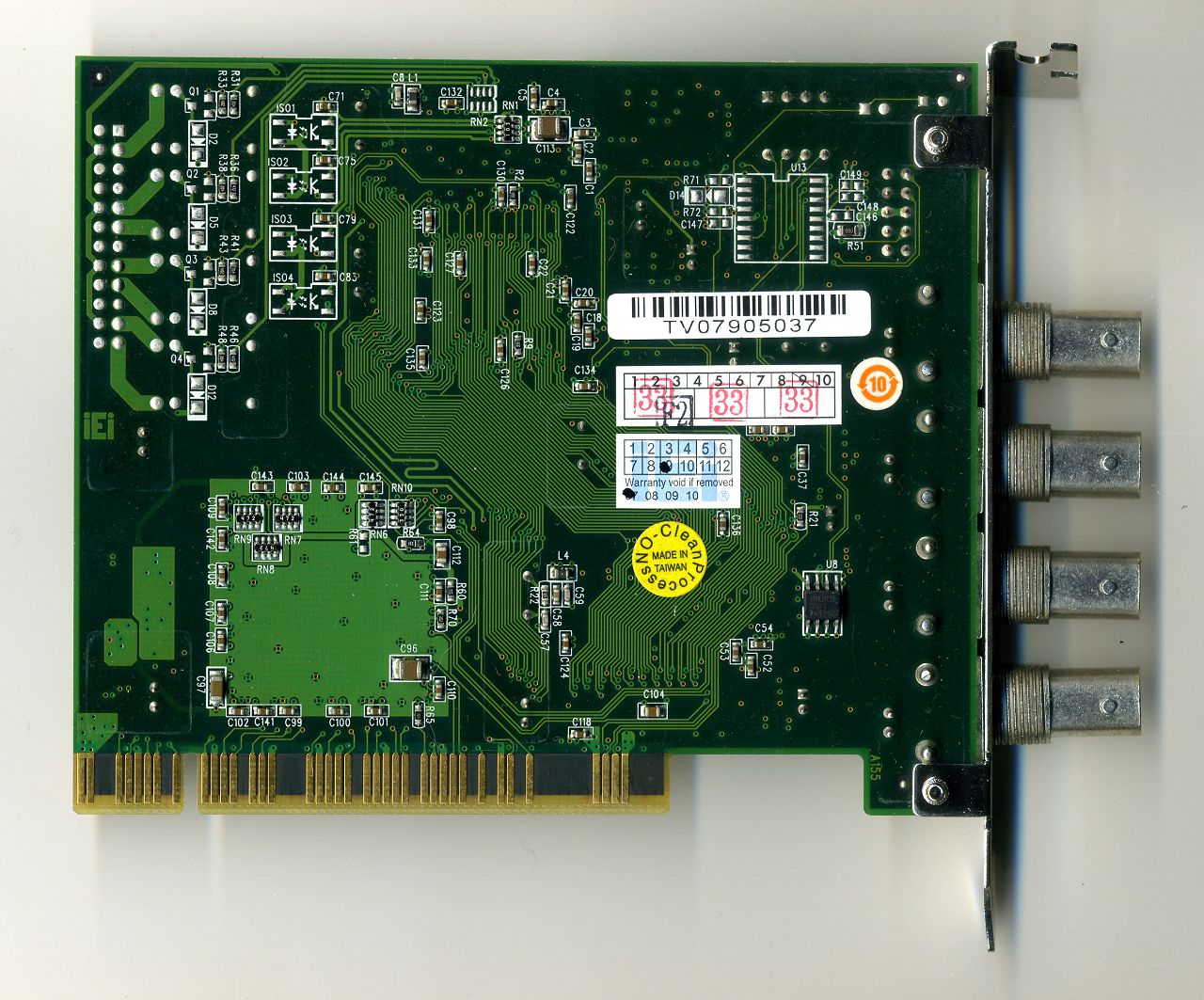

iEi IVC-200G-RS Capture Card, PPCI
4-channel composite video (NTSC/PAL)
4 x Video Input-BNC
2004

More info



iEi IVC-200G-RS Capture Card, PPCI
4-channel composite video (NTSC/PAL)
4 x Video Input-BNC
2004

More info

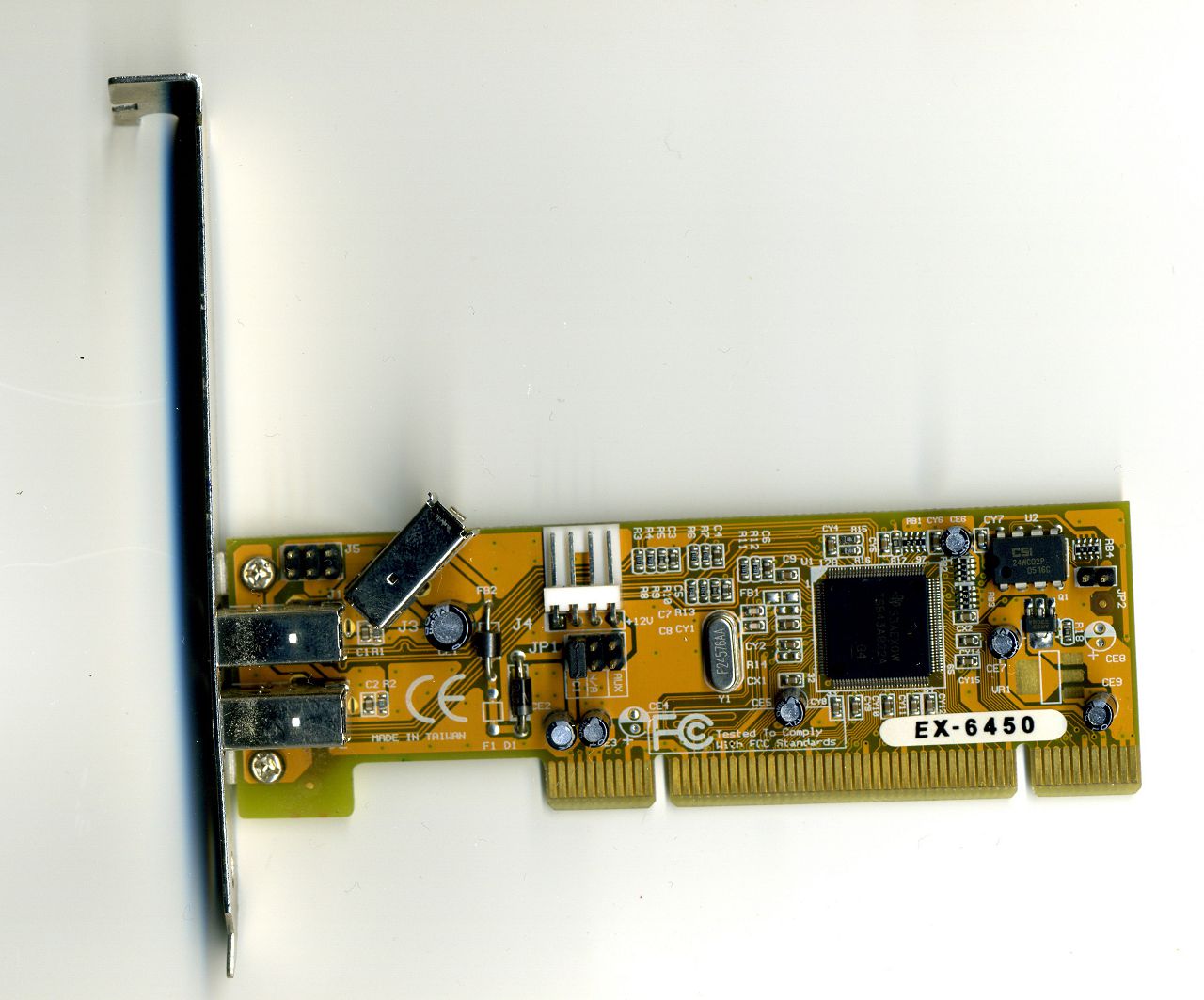

EXSYS EX-6450 Exsys Firewire card
2 external and 1 internal FireWire connector



EXSYS EX-6450 Exsys Firewire card
2 external and 1 internal FireWire connector

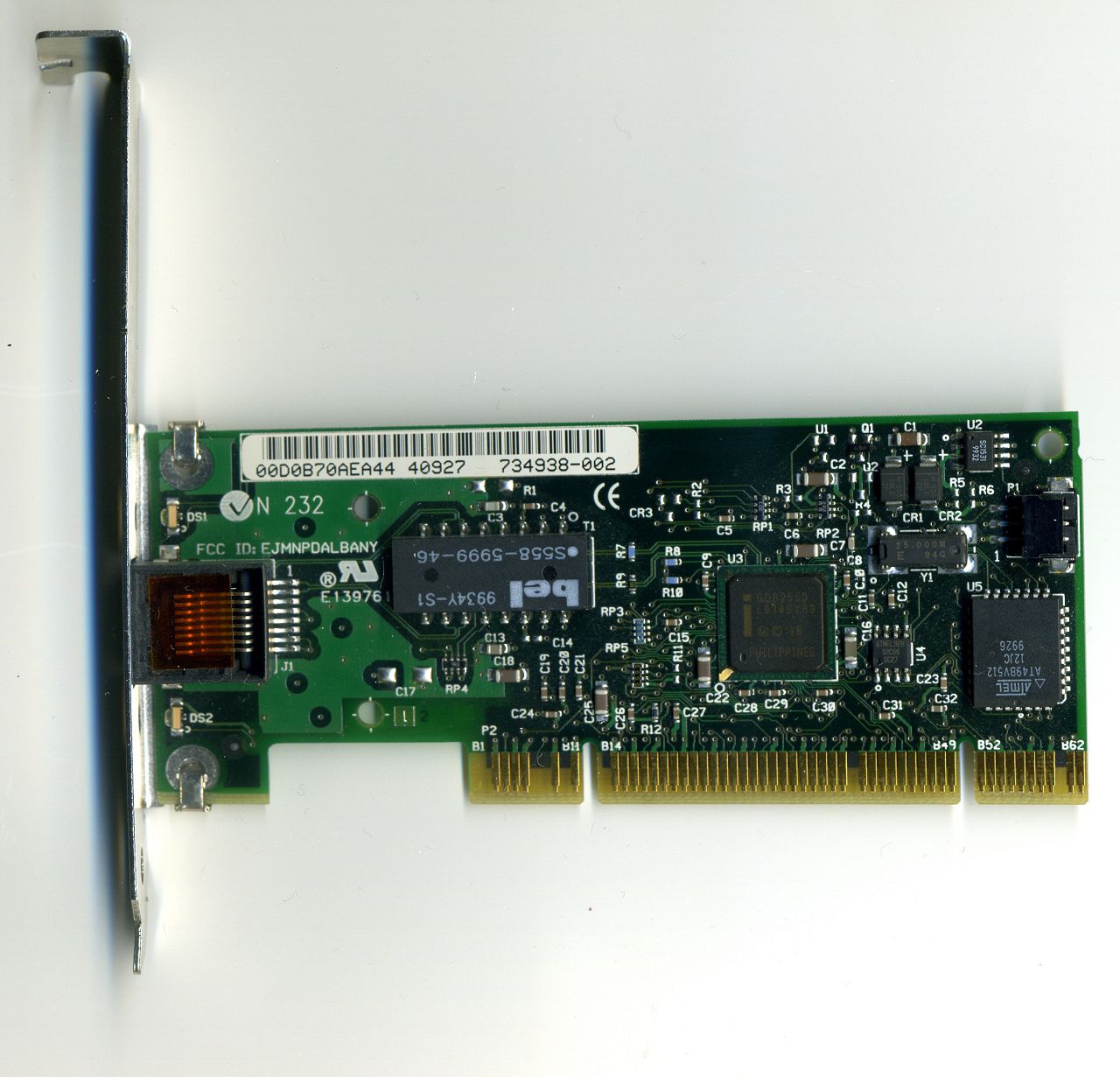

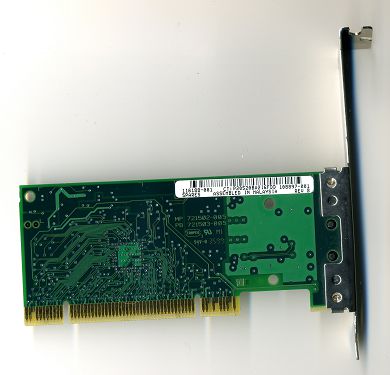

INTEL PRO/100+ (10/100Mbps) PCI 2.2 Network card
1 x RJ45
FCC ID: EJMNPDALBANY
1999

More info



INTEL PRO/100+ (10/100Mbps) PCI 2.2 Network card
1 x RJ45
FCC ID: EJMNPDALBANY
1999

More info

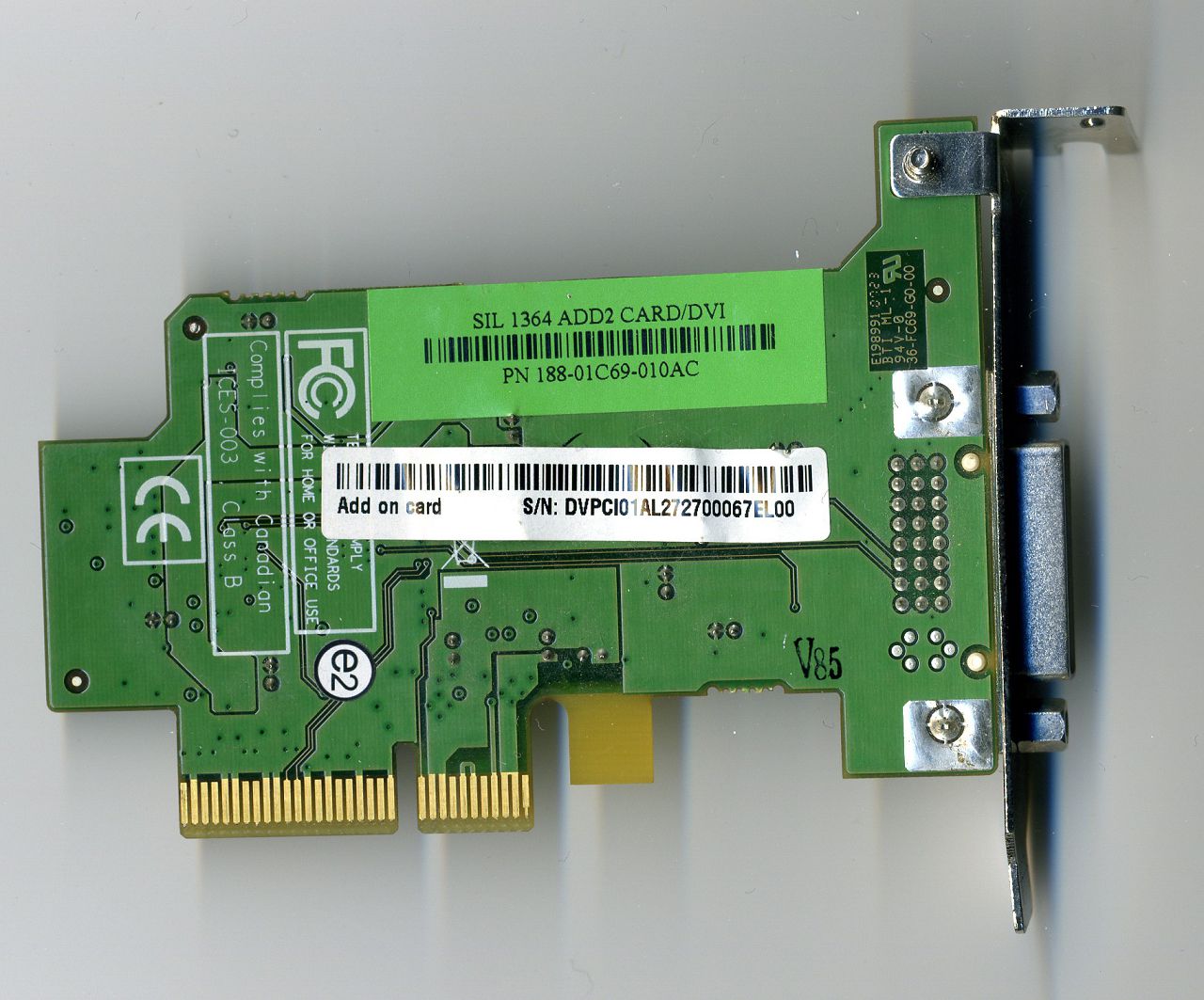

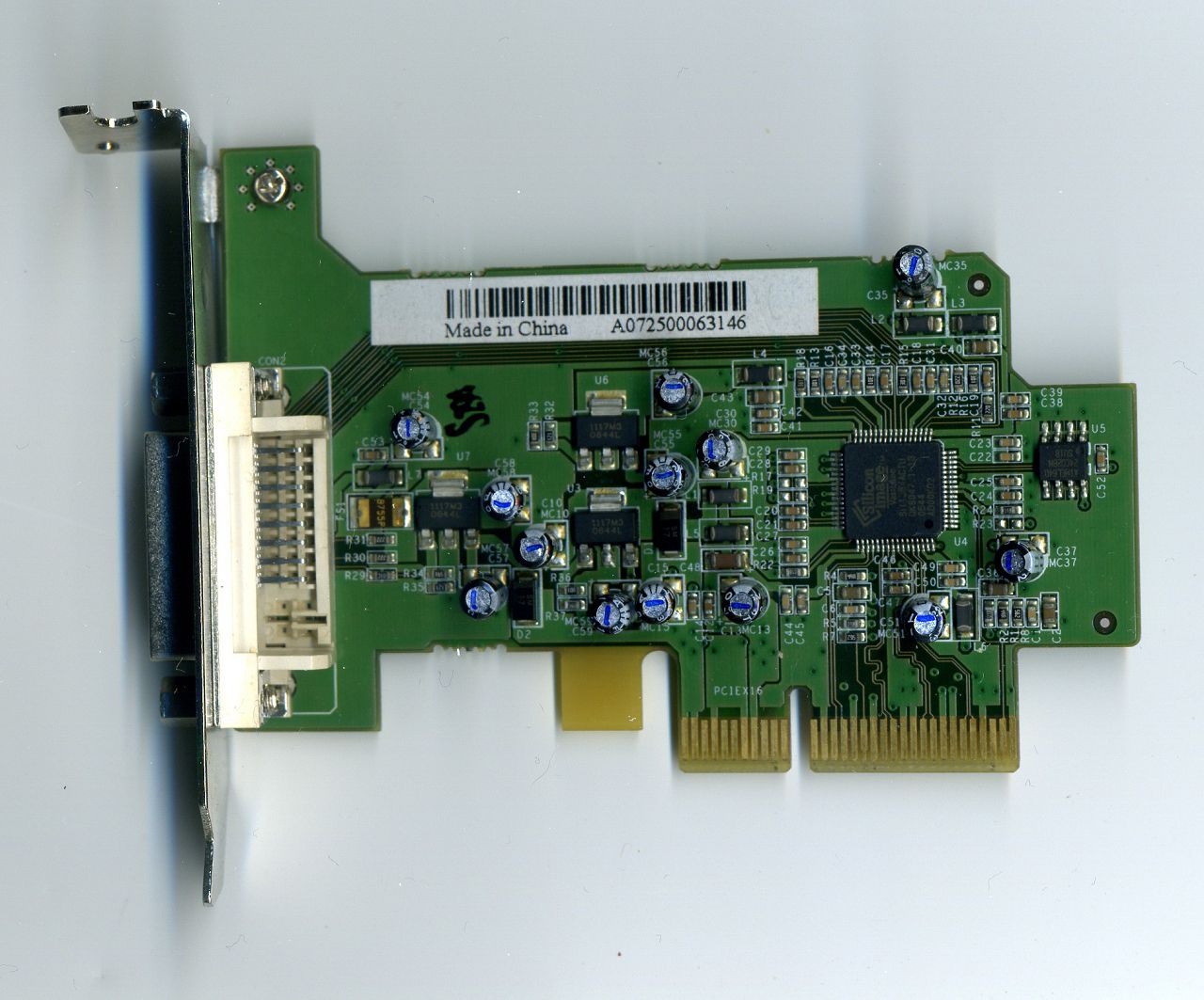

SIL 1364 ADD2 CARD/DVI PCI-E GFX Card
2007



SIL 1364 ADD2 CARD/DVI PCI-E GFX Card
2007

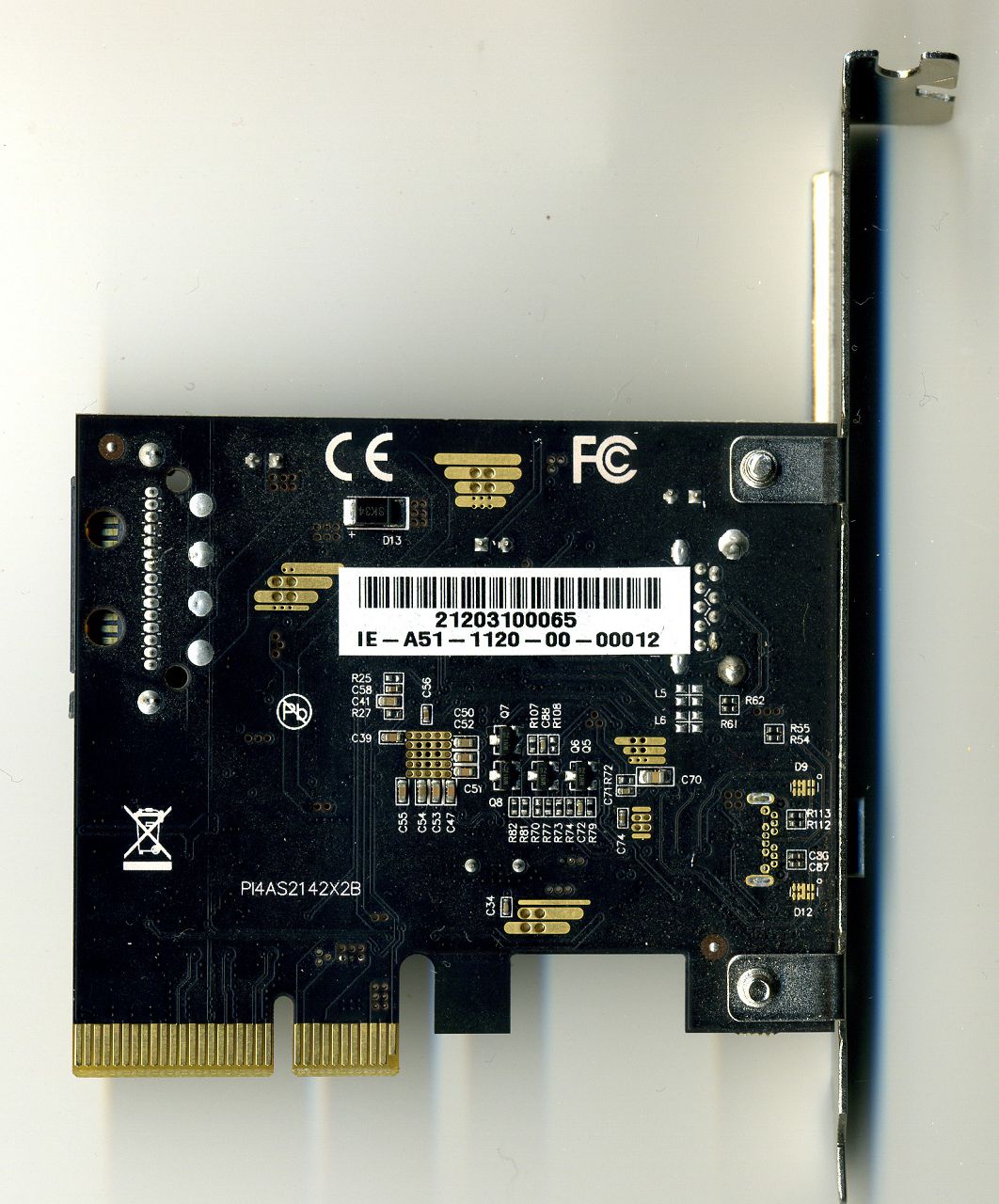

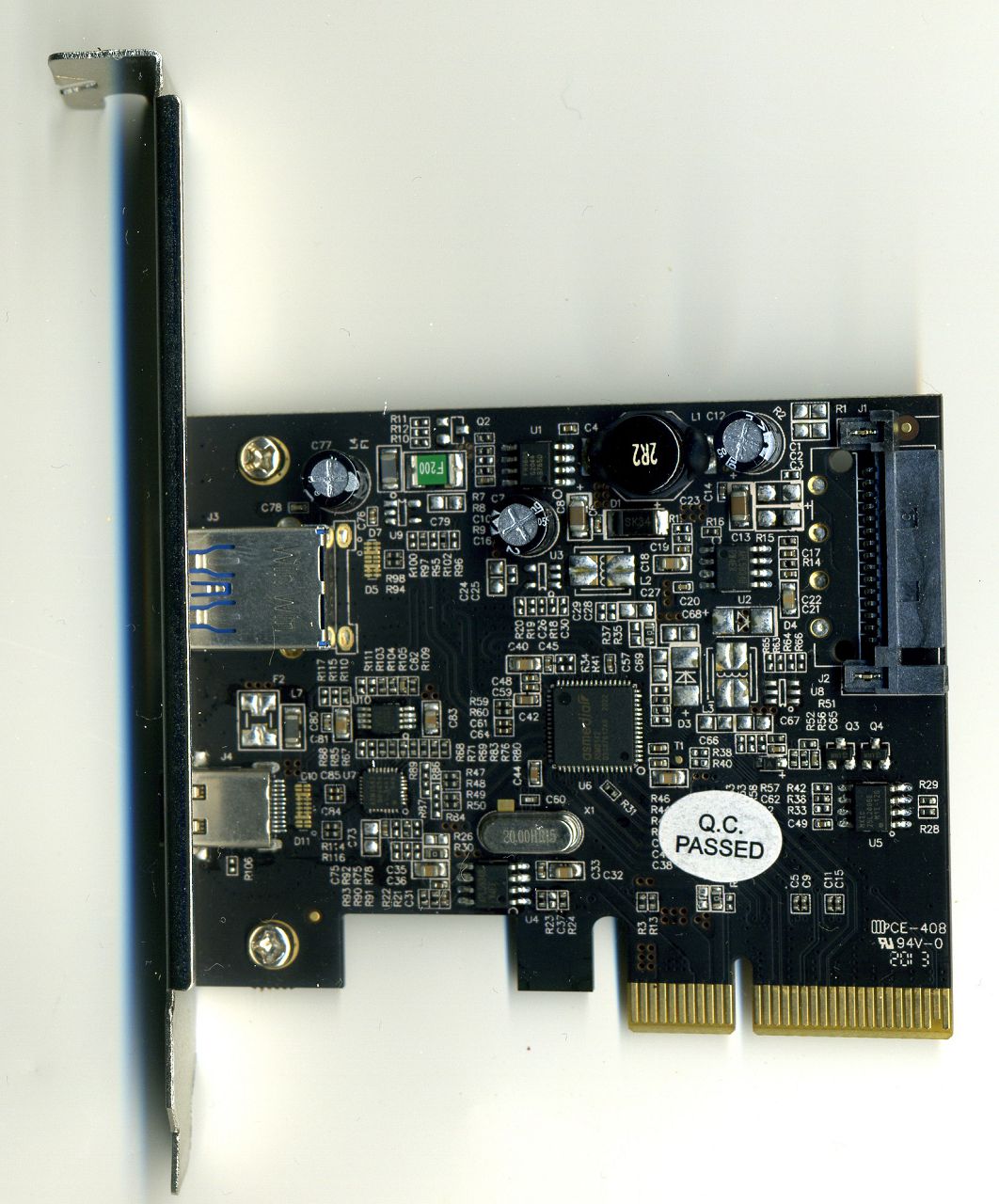

Rosewill RC-509 PCI-E to USB 3.1 Expansion Card
1 x USB 3.1 Type A External
1 x USB-C 3.1 External
1 x Internal SATA power input



Rosewill RC-509 PCI-E to USB 3.1 Expansion Card
1 x USB 3.1 Type A External
1 x USB-C 3.1 External
1 x Internal SATA power input



Sapphire HD 6450 FleX PCI-E GFX Card
1 GB
2 x DVI
1 x HDMI 1.3a
2011



Sapphire HD 6450 FleX PCI-E GFX Card
1 GB
2 x DVI
1 x HDMI 1.3a
2011

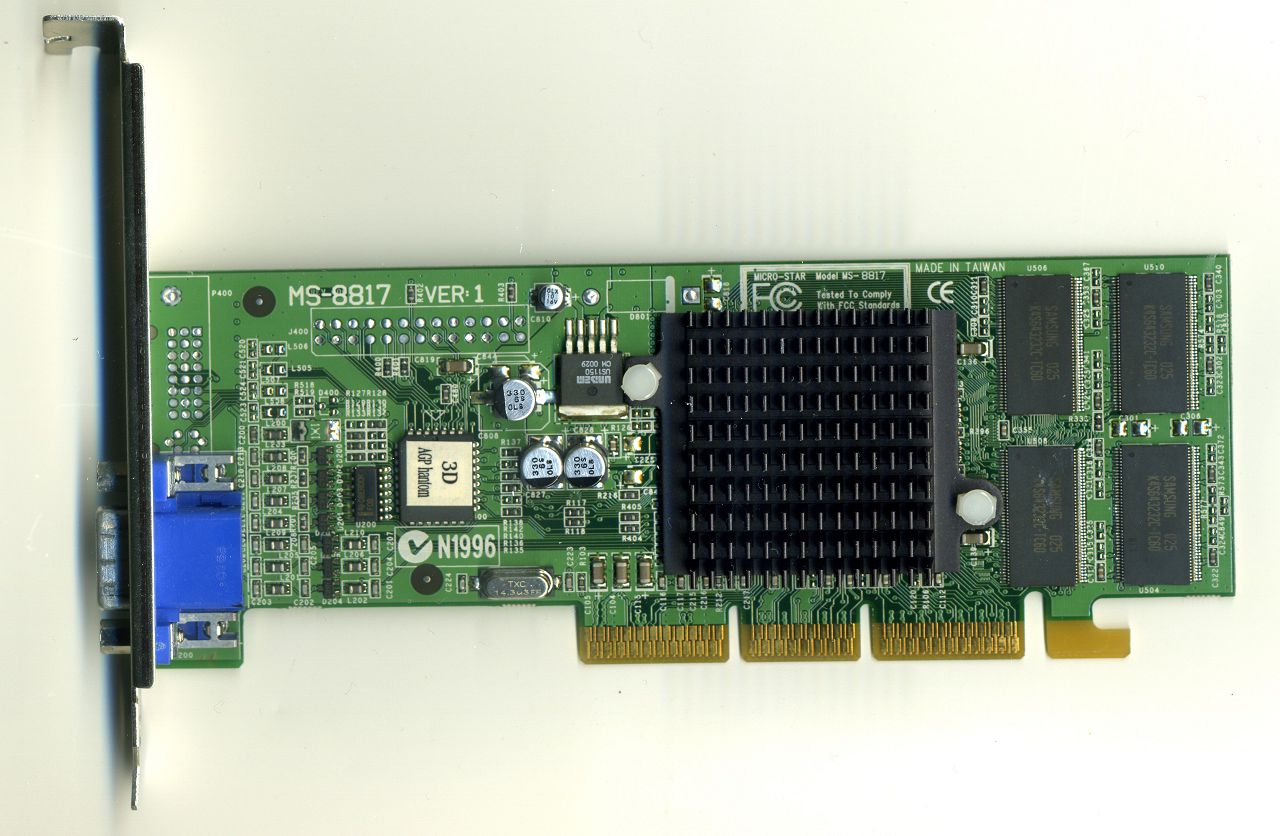

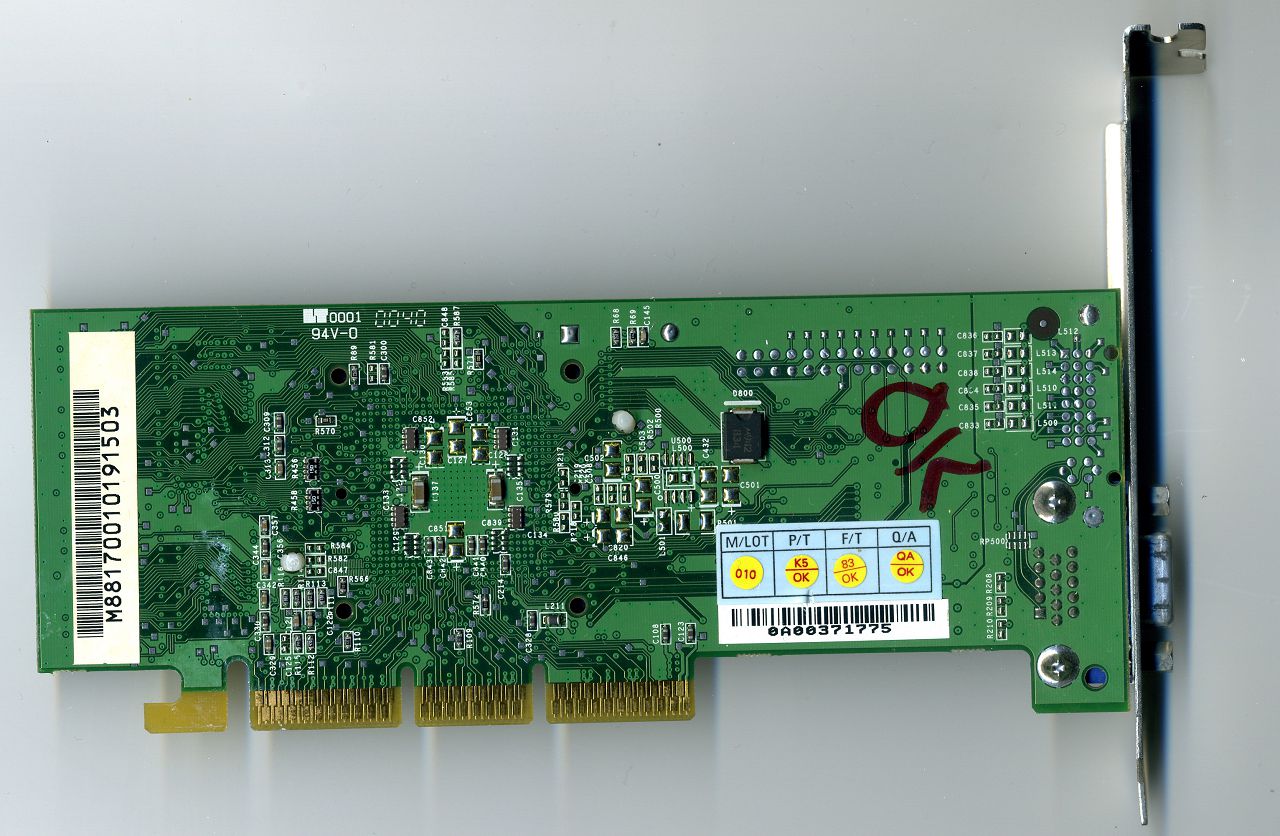

MSI MS-8817 Nvidia GeForce2 Mx AGP4X 32mb GFX Card
1 x HD D-SUB 15-pin
2000




MSI MS-8817 Nvidia GeForce2 Mx AGP4X 32mb GFX Card
1 x HD D-SUB 15-pin
2000



iEi IVC-200G-RS Capture Card, PPCI
4-channel composite video (NTSC/PAL)
4 x Video Input-BNC
2004

More info



iEi IVC-200G-RS Capture Card, PPCI
4-channel composite video (NTSC/PAL)
4 x Video Input-BNC
2004

More info

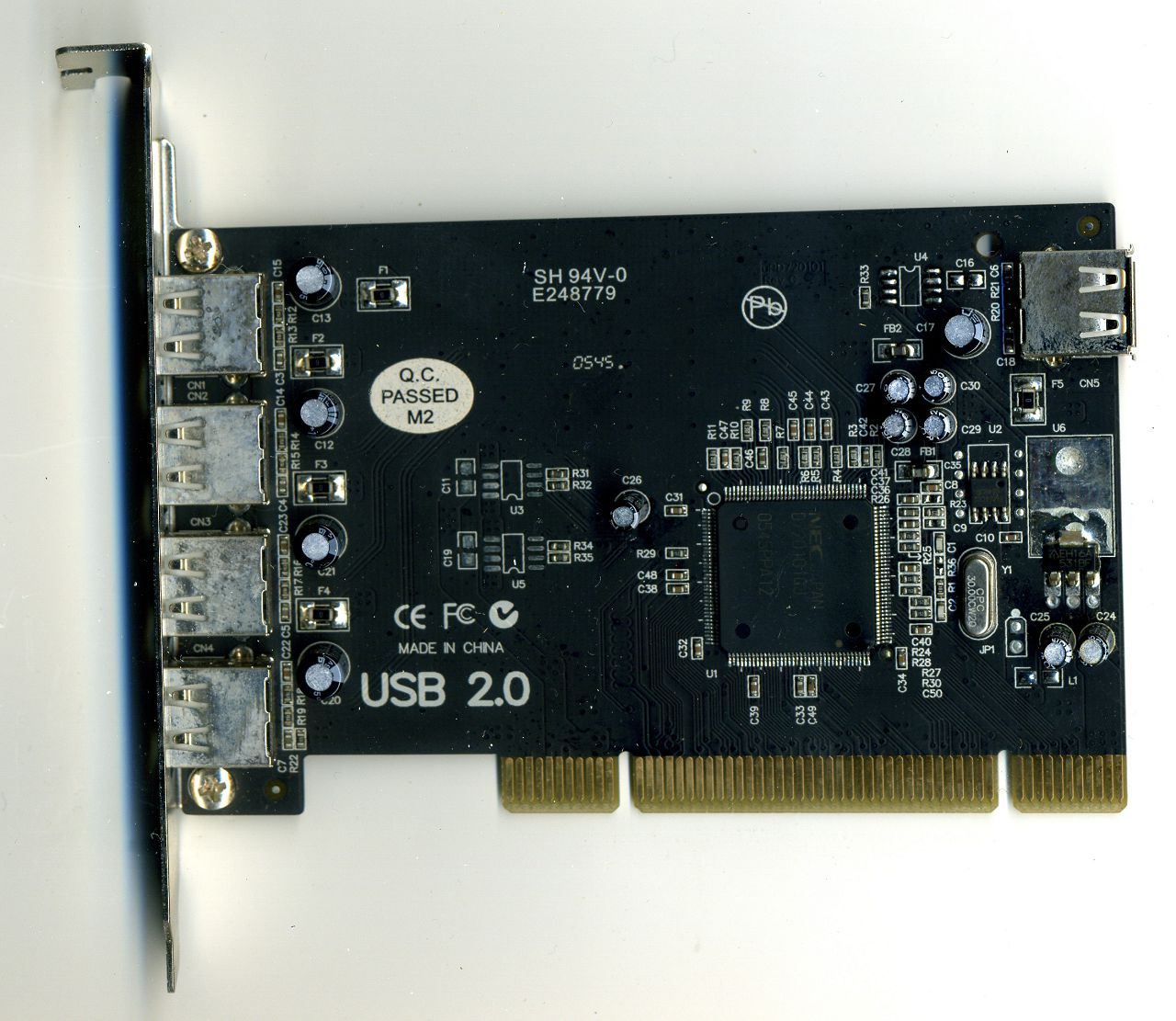

MRT-USB2PCI-5A PCI USB Card
4 x USB2.0 External
1 x USB2.0 Internal
2004



MRT-USB2PCI-5A PCI USB Card
4 x USB2.0 External
1 x USB2.0 Internal
2004

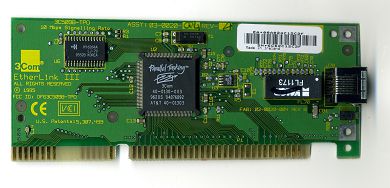

3Com EtherLink III, 3C5096-TPO (10Mbps), ISA Network Card
1 x RJ-45
FCC ID: DF63C5098-TPO
1995

More info



3Com EtherLink III, 3C5096-TPO (10Mbps), ISA Network Card
1 x RJ-45
FCC ID: DF63C5098-TPO
1995

More info



3Com EtherLink III, 3C5096-TPO (10Mbps), ISA Network Card
1 x RJ-45
FCC ID: DF63C5098-TPO
1995

More info



3Com EtherLink III, 3C5096-TPO (10Mbps), ISA Network Card
1 x RJ-45
FCC ID: DF63C5098-TPO
1995

More info



eg-electronic TFT Display Controller
PM30_100
Logic PF59_101
Sequencer PF77_101
Fits panels: LQ10S21 / LQ12S31 / LQ12S41
1998



eg-electronic TFT Display Controller
PM30_100
Logic PF59_101
Sequencer PF77_101
Fits panels: LQ10S21 / LQ12S31 / LQ12S41
1998

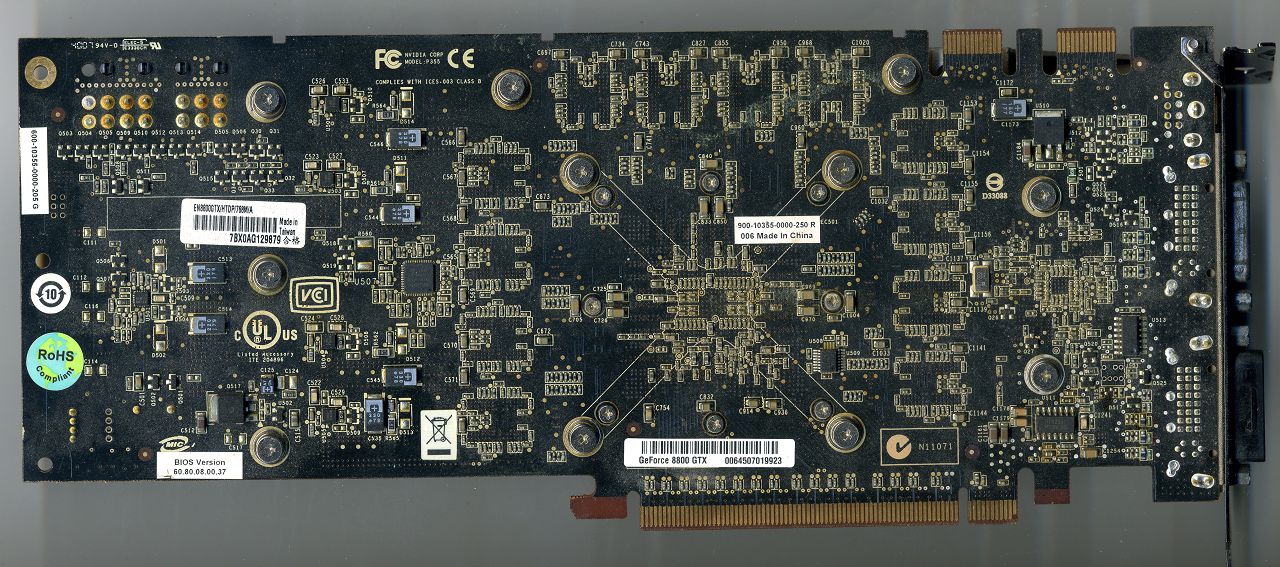

ASUS ENGTS250 OC GEAR/DI/512MD3 GPU, PCI-E GFX Card
512MB
1 x Dual Link DVI-I
1 x HDMI
1 x VGA
1 x SPDIF Audio
2009



ASUS ENGTS250 OC GEAR/DI/512MD3 GPU, PCI-E GFX Card
512MB
1 x Dual Link DVI-I
1 x HDMI
1 x VGA
1 x SPDIF Audio
2009

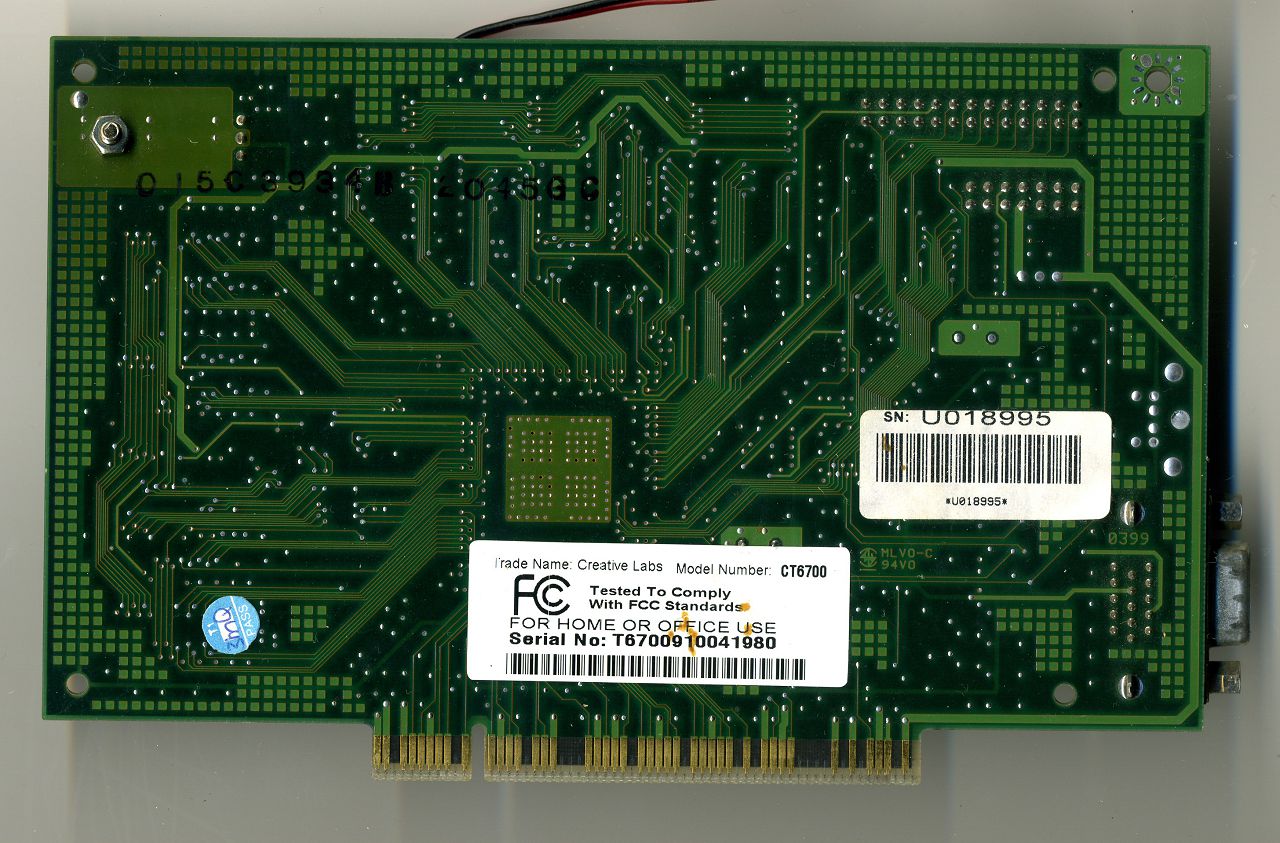

Creative Labs CT6700, Nvidia RIVA TNT 16MB, PCI GFX Card
1 x HD D-SUB 15-pin
1998



Creative Labs CT6700, Nvidia RIVA TNT 16MB, PCI GFX Card
1 x HD D-SUB 15-pin
1998

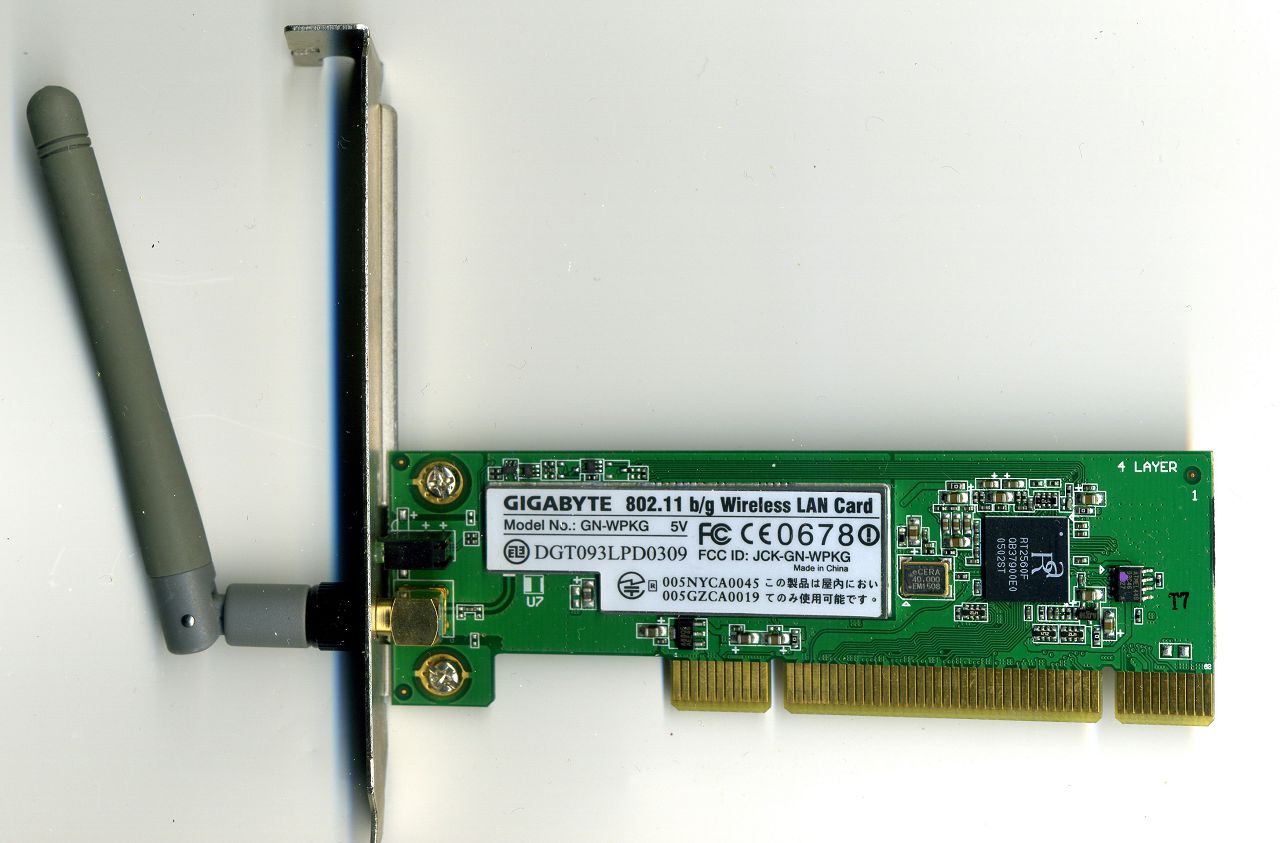

Gigabyte GN-WPKG 802.11 b/g Wireless LAN PCI Card
V1.1
2005




Gigabyte GN-WPKG 802.11 b/g Wireless LAN PCI Card
V1.1
2005

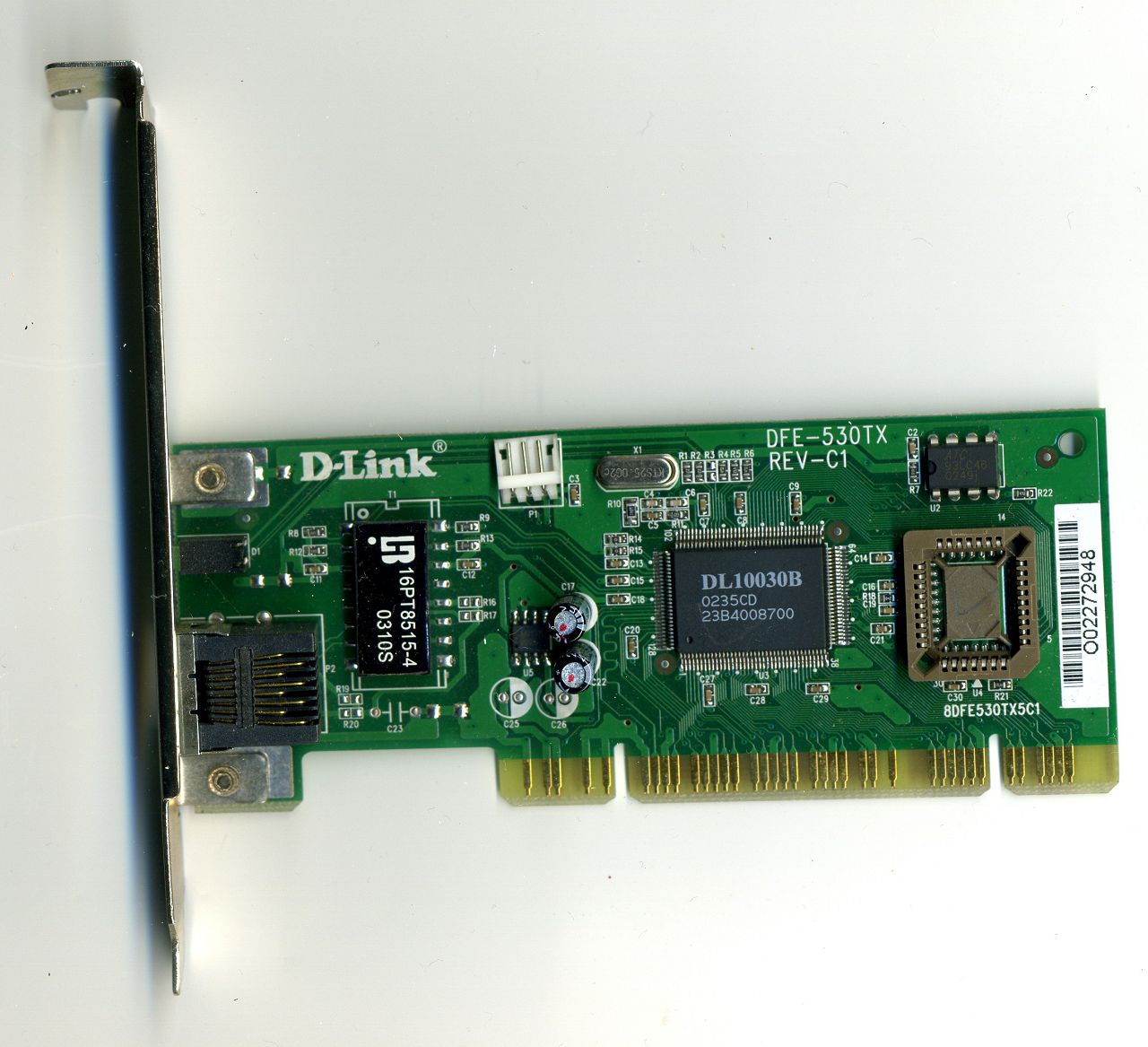

D-Link DFE-530TX (10/100Mbps) PCI Network Card
1 x RJ45
2000

More info and Closest visual match




D-Link DFE-530TX (10/100Mbps) PCI Network Card
1 x RJ45
2000

More info and Closest visual match

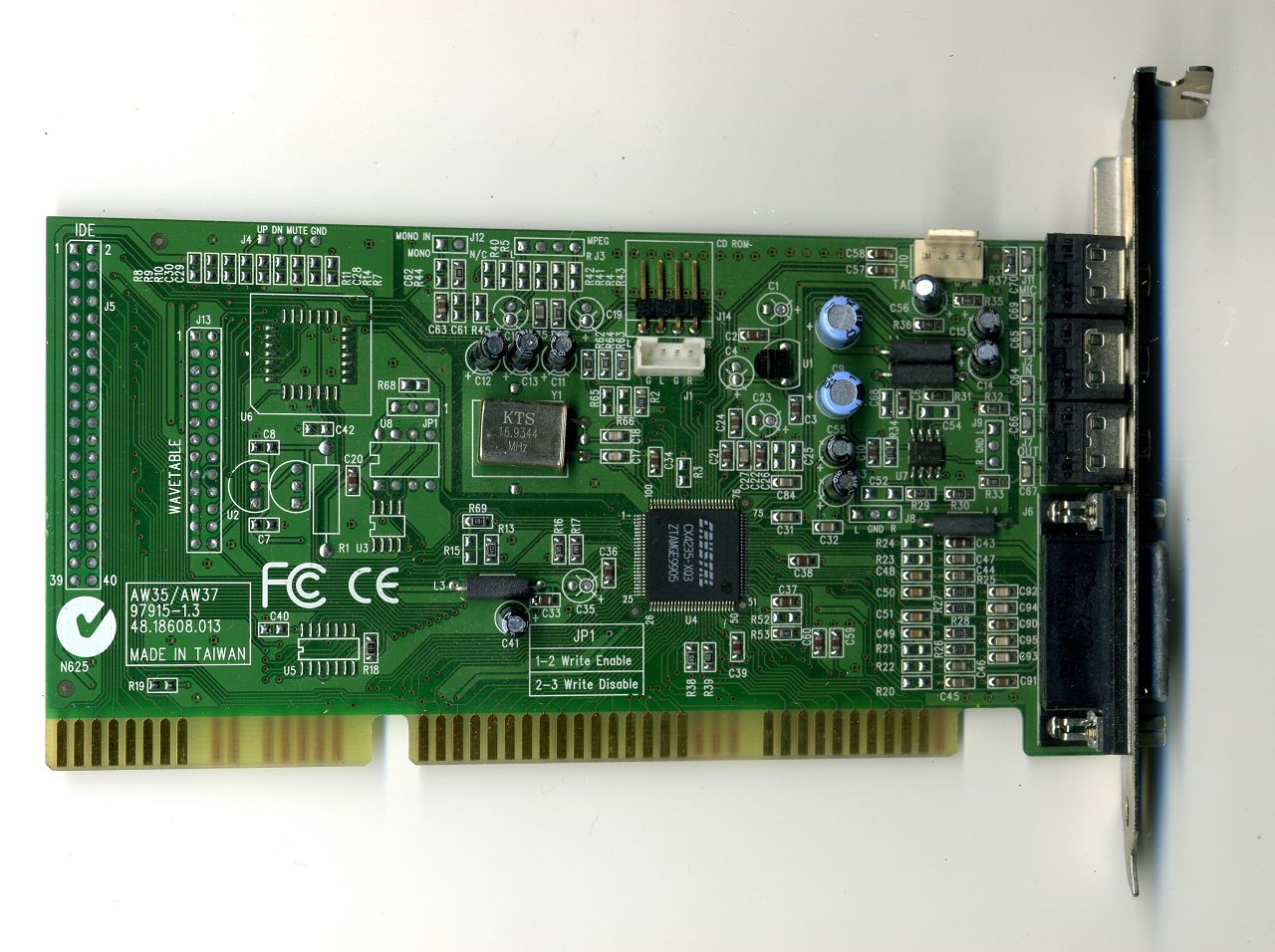

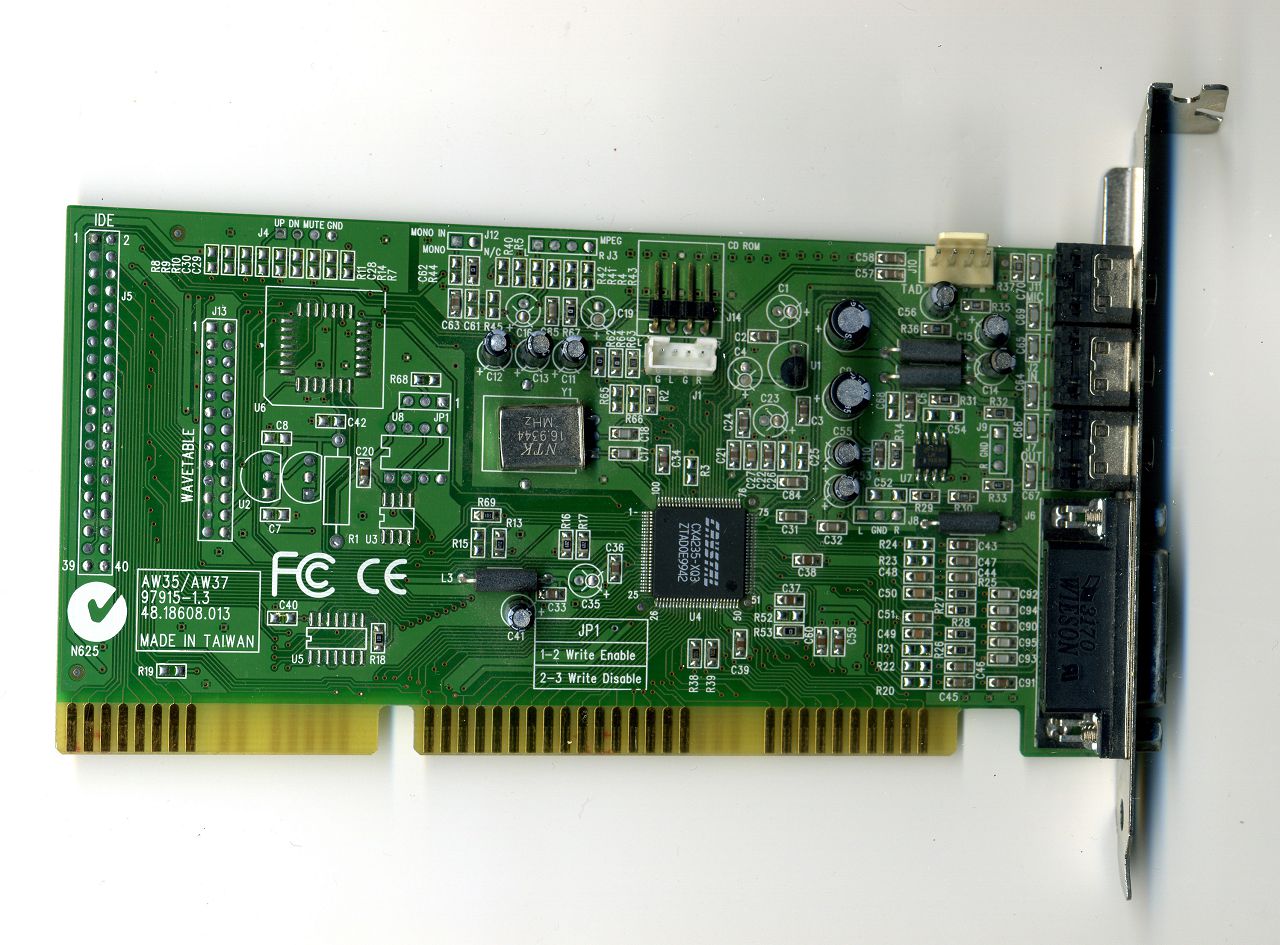

Crystal CX4235 OEM Type AW35/AW37 Audio Card
1999




Crystal CX4235 OEM Type AW35/AW37 Audio Card
1999

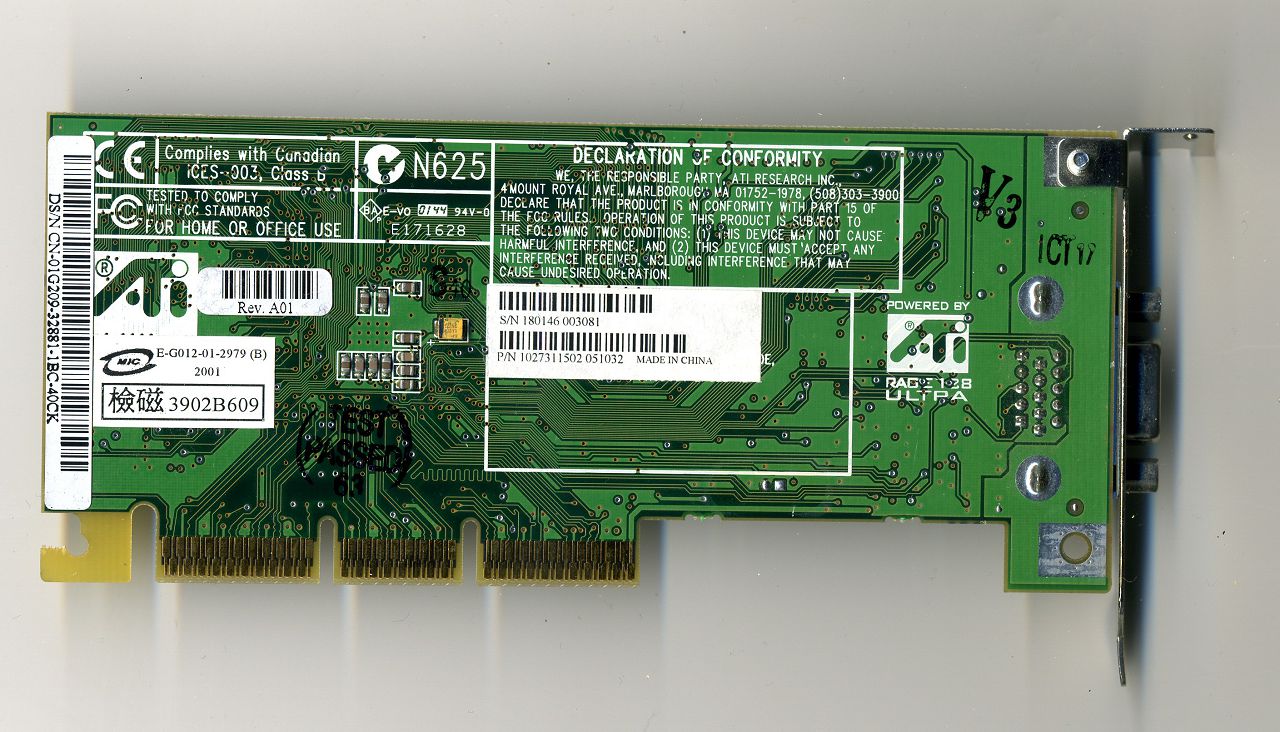

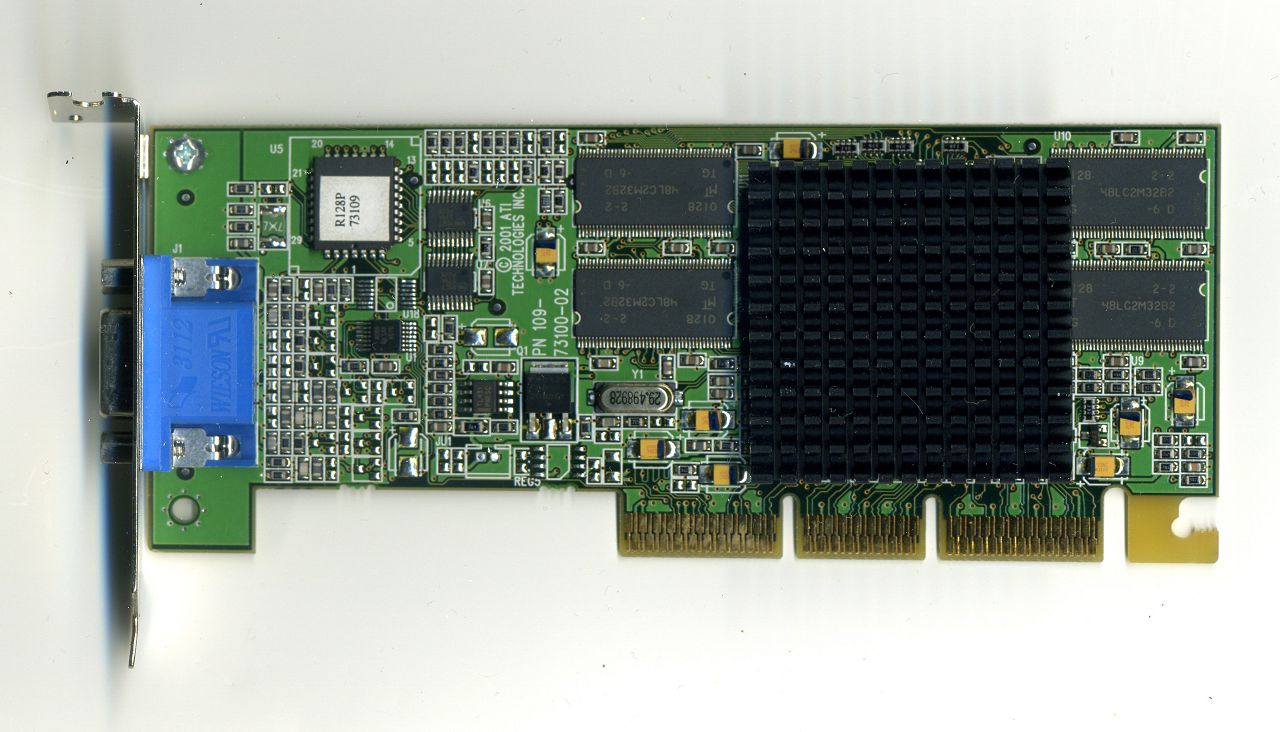

ATI Rage 128 PRO Ultra GL, 32MB, AGP 2x/4x GFX Card
1 x HD D-SUB 15-pin
1998



ATI Rage 128 PRO Ultra GL, 32MB, AGP 2x/4x GFX Card
1 x HD D-SUB 15-pin
1998



Adaptec AHA-2940AU PCI SCSI Controller
1 x SCSI (50-pin header) - 2x25 2.54mm pin header
1 x SCSI HD50 - SCSI HD50
1997



Adaptec AHA-2940AU PCI SCSI Controller
1 x SCSI (50-pin header) - 2x25 2.54mm pin header
1 x SCSI HD50 - SCSI HD50
1997



C-Media CMI8738-PCI-SX PCI Audio Card
Outputs: 3.5mm jacks for front, rear, mic, and line-in; game/MIDI port.
Connectors: CD-in, AUX-in headers
2003



C-Media CMI8738-PCI-SX PCI Audio Card
Outputs: 3.5mm jacks for front, rear, mic, and line-in; game/MIDI port.
Connectors: CD-in, AUX-in headers
2003

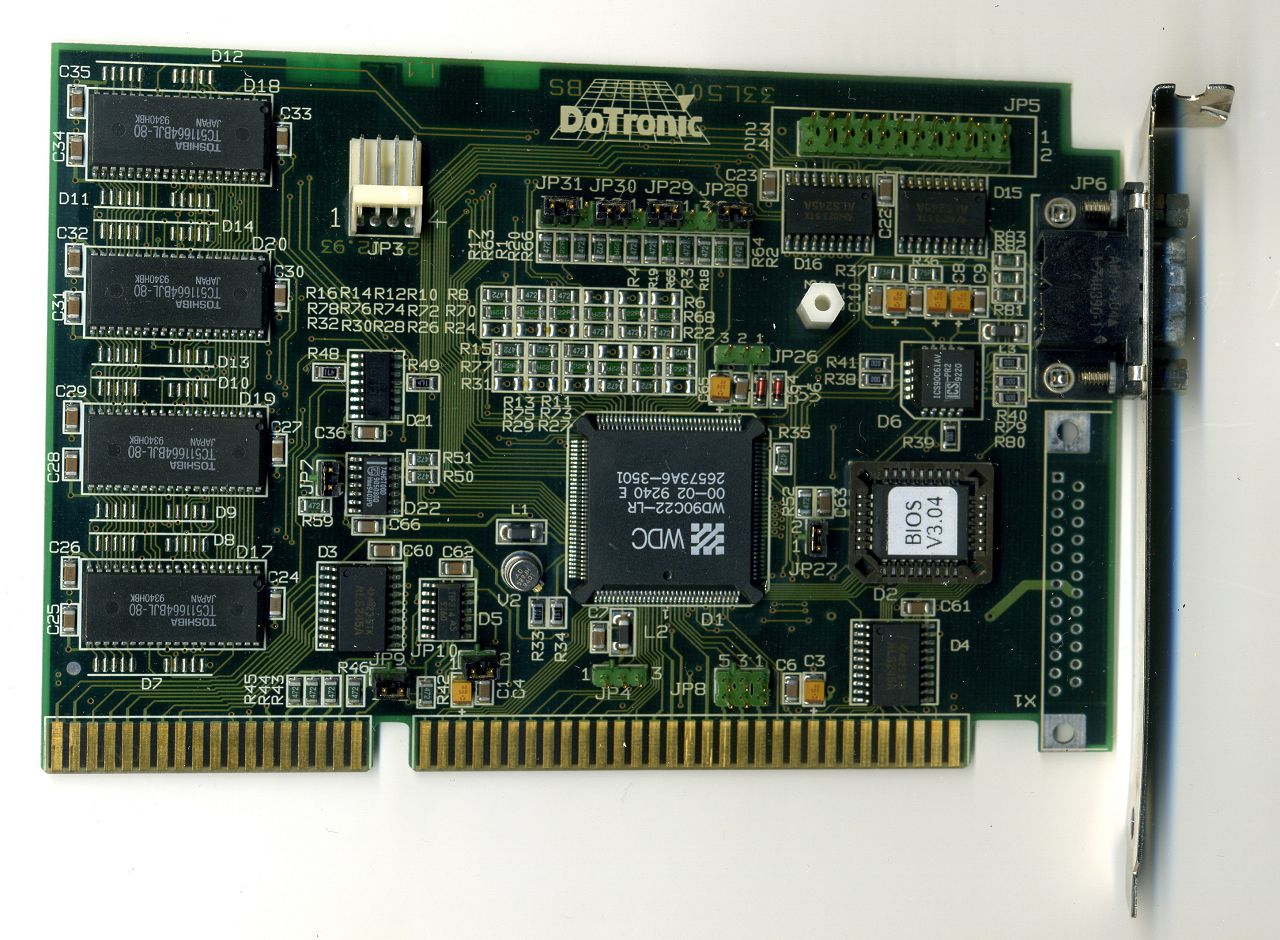

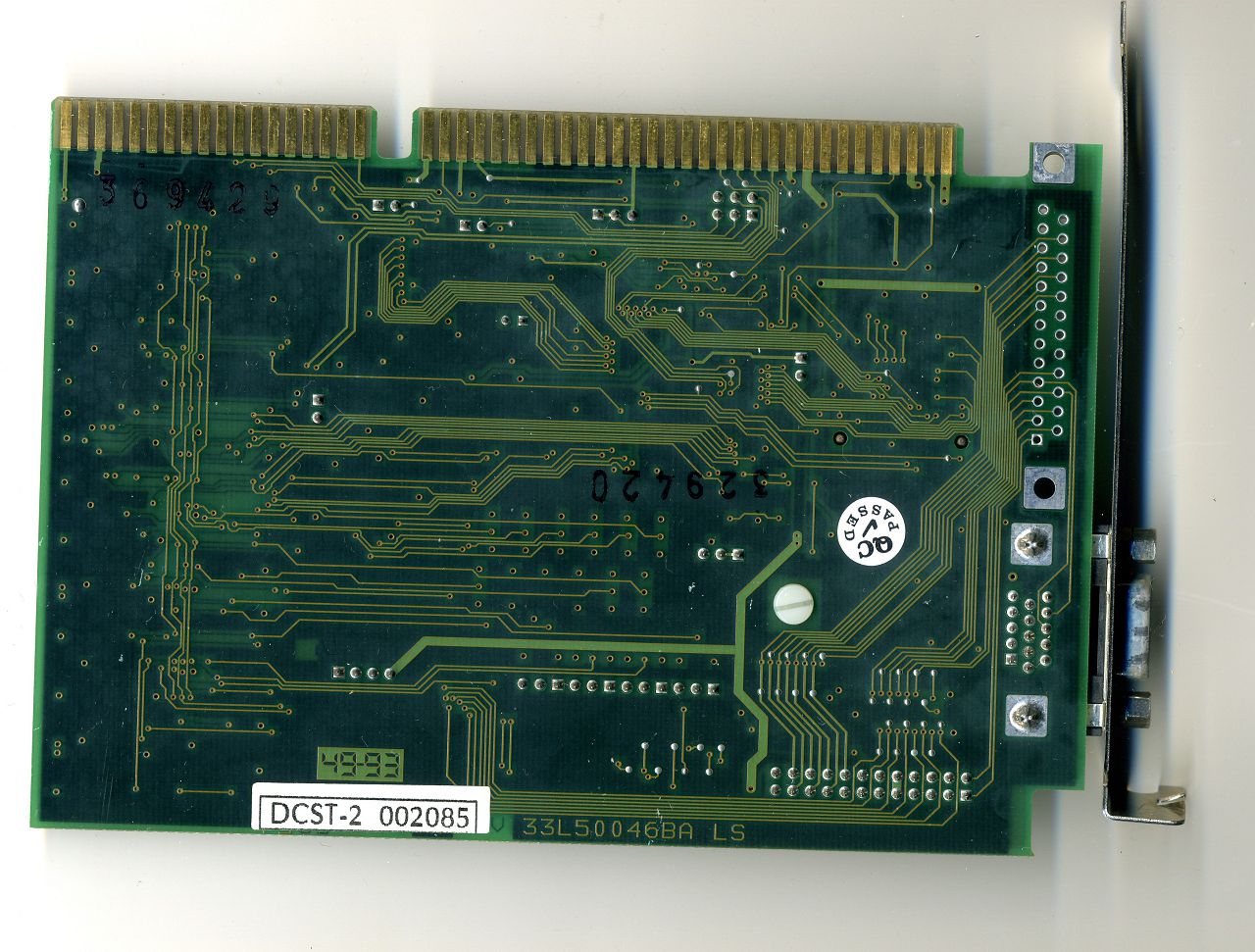

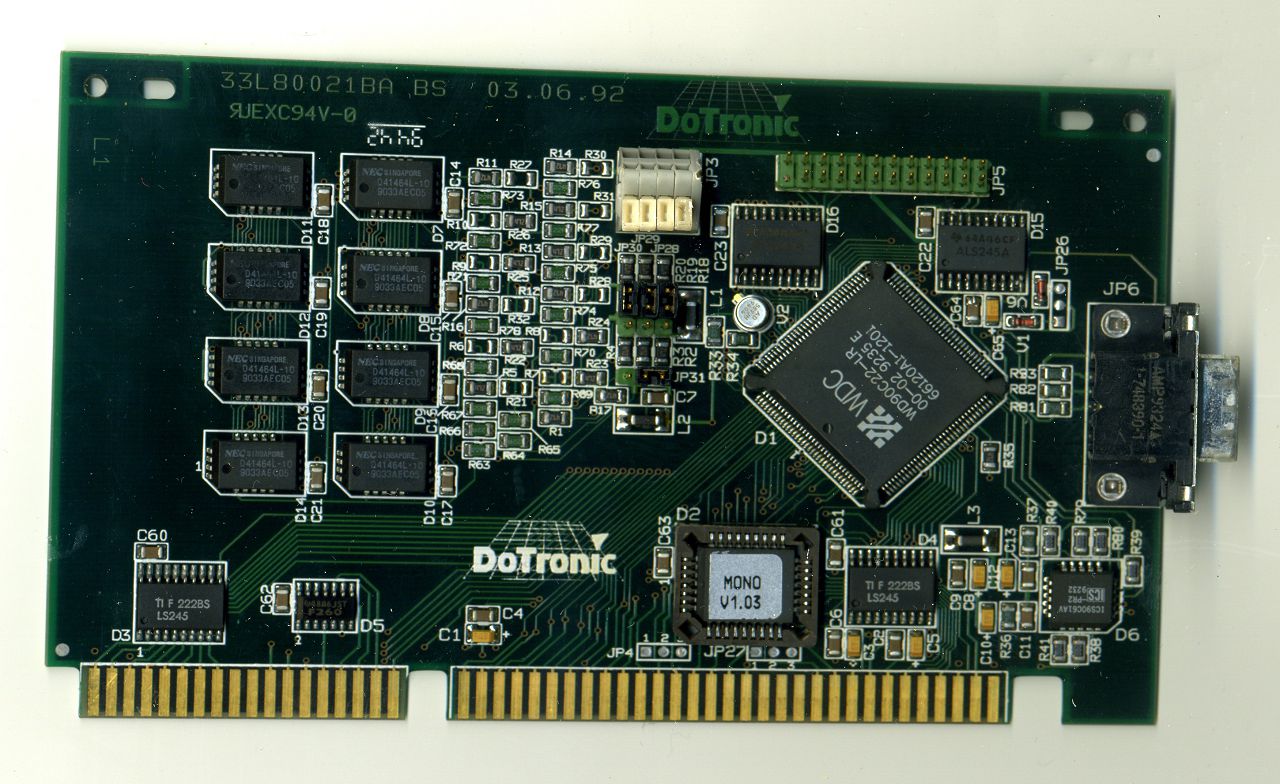

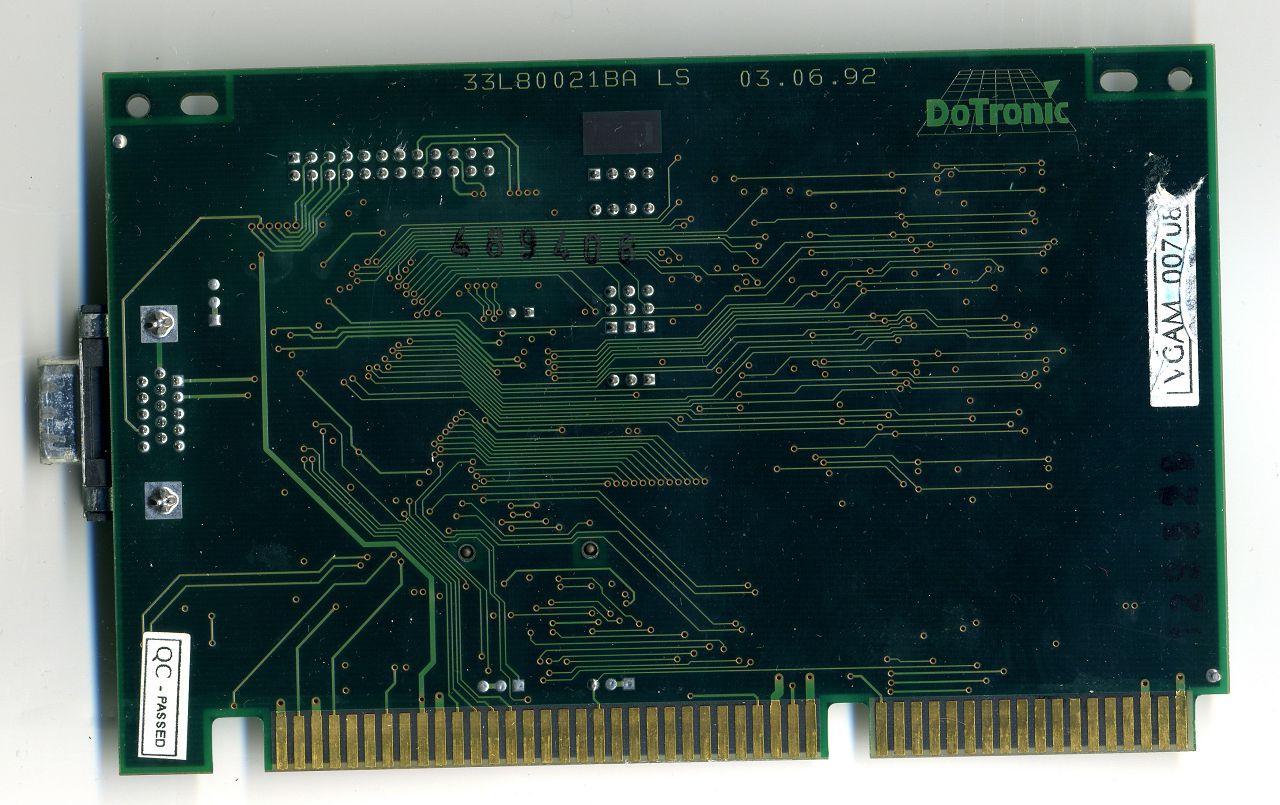

Dotronic Mikroelektronik Display Controller ISA Card
Digital ISA Bus Interface Card for Monochrome, Colour or TFT LCD
BIOS V3.04
1 x VGA
WDC90C22-LR 00-02 9240 E 2657346-3501
DCST-2 002085
33L50046BA LS
1993

More info (similar looking card) Datasheet
More info (similar looking card) User Guide

Drivers seem to be available only for:
Windows 3.1x
Windows 95
Windows NT 3.51
Windows NT4.0 (inc. on Windows NT 4.0 CD)
OS/2

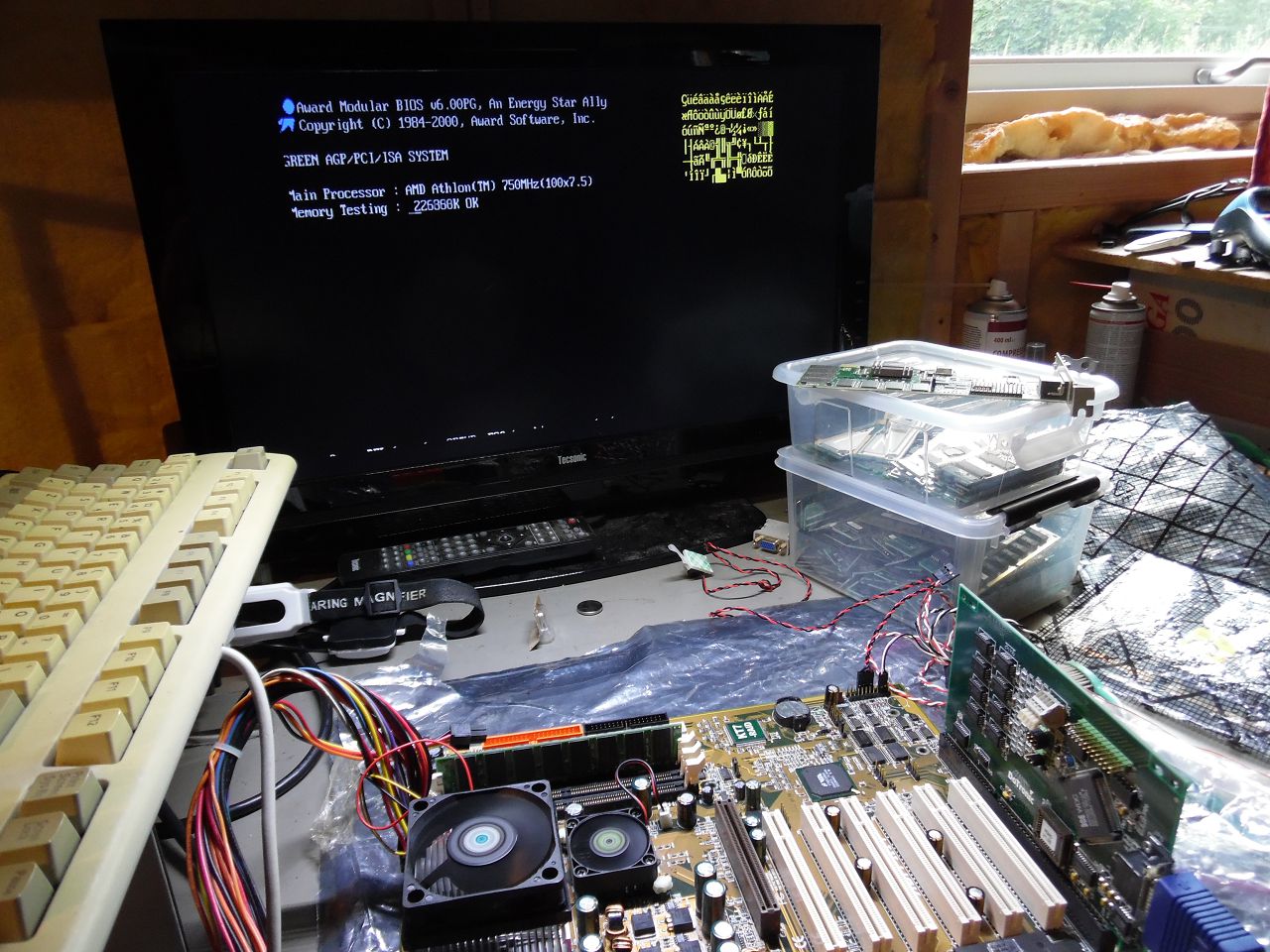

Card was tested and shows a standard screen through the VGA connector. See bottom of page.



Dotronic Mikroelektronik Display Controller ISA Card
Digital ISA Bus Interface Card for Monochrome, Colour or TFT LCD
BIOS V3.04
1 x VGA
WDC90C22-LR 00-02 9240 E 2657346-3501
DCST-2 002085
33L50046BA LS
1993

More info (similar looking card) Datasheet
More info (similar looking card) User Guide

Drivers seem to be available only for:
Windows 3.1x
Windows 95
Windows NT 3.51
Windows NT4.0 (inc. on Windows NT 4.0 CD)
OS/2

Card was tested and shows a standard screen through the VGA connector. See bottom of page.



Creative Labs Soundblaster AWE64 Gold CT4390 Audio Card
1995

Has awaful distorted very low volume coming out of the 2 x audio Jacks. May be broken or just my initial test with IRQ / ISA / Motherboard problems.



Creative Labs Soundblaster AWE64 Gold CT4390 Audio Card
1995

Has awaful distorted very low volume coming out of the 2 x audio Jacks. May be broken or just my initial test with IRQ / ISA / Motherboard problems.



Crystal CX4235 OEM Type AW35/AW37 Audio Card
1999



Crystal CX4235 OEM Type AW35/AW37 Audio Card
1999



Decision Computer International - PCI WATCH DOG TIMER2 CARD



Decision Computer International - PCI WATCH DOG TIMER2 CARD

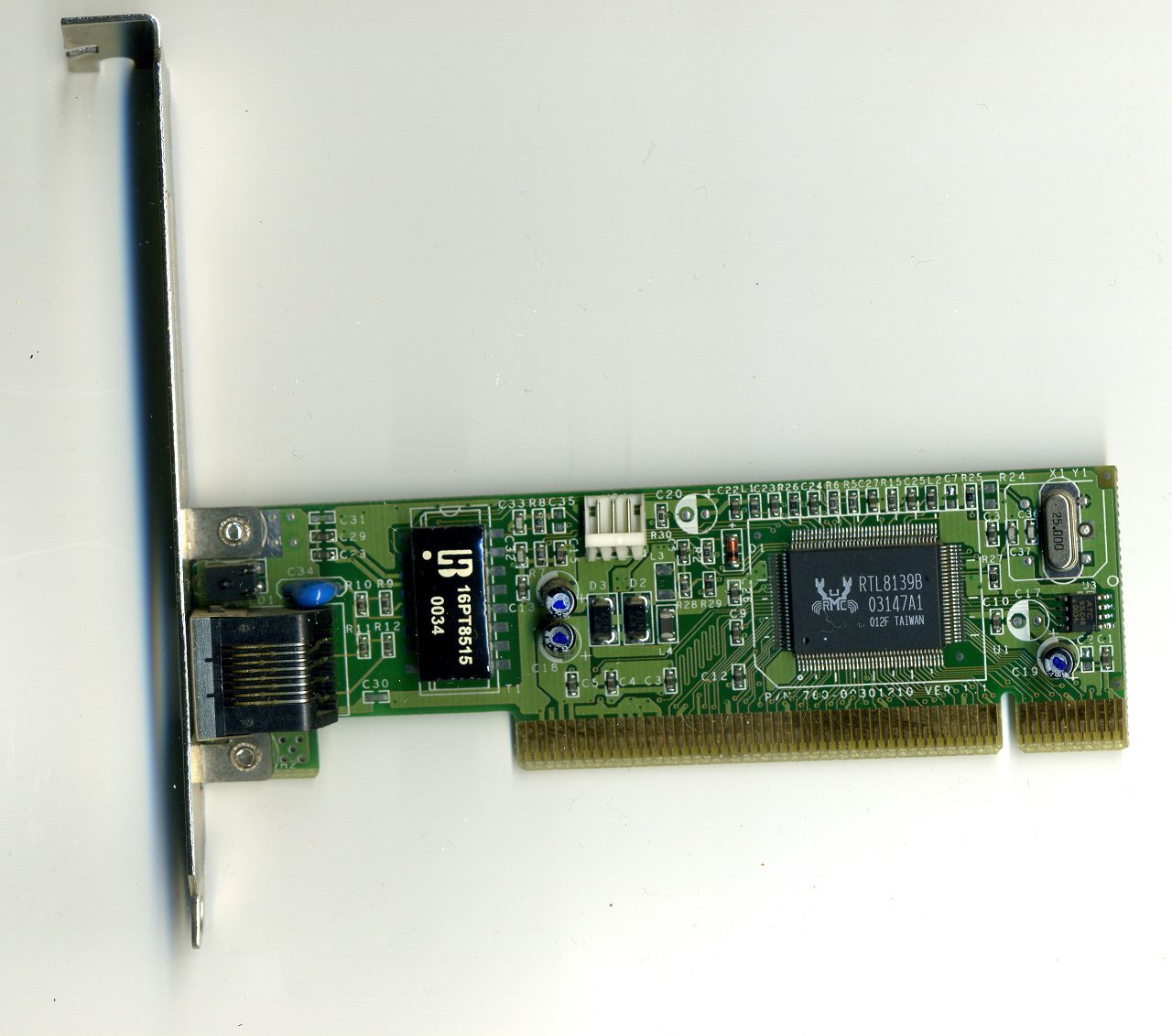

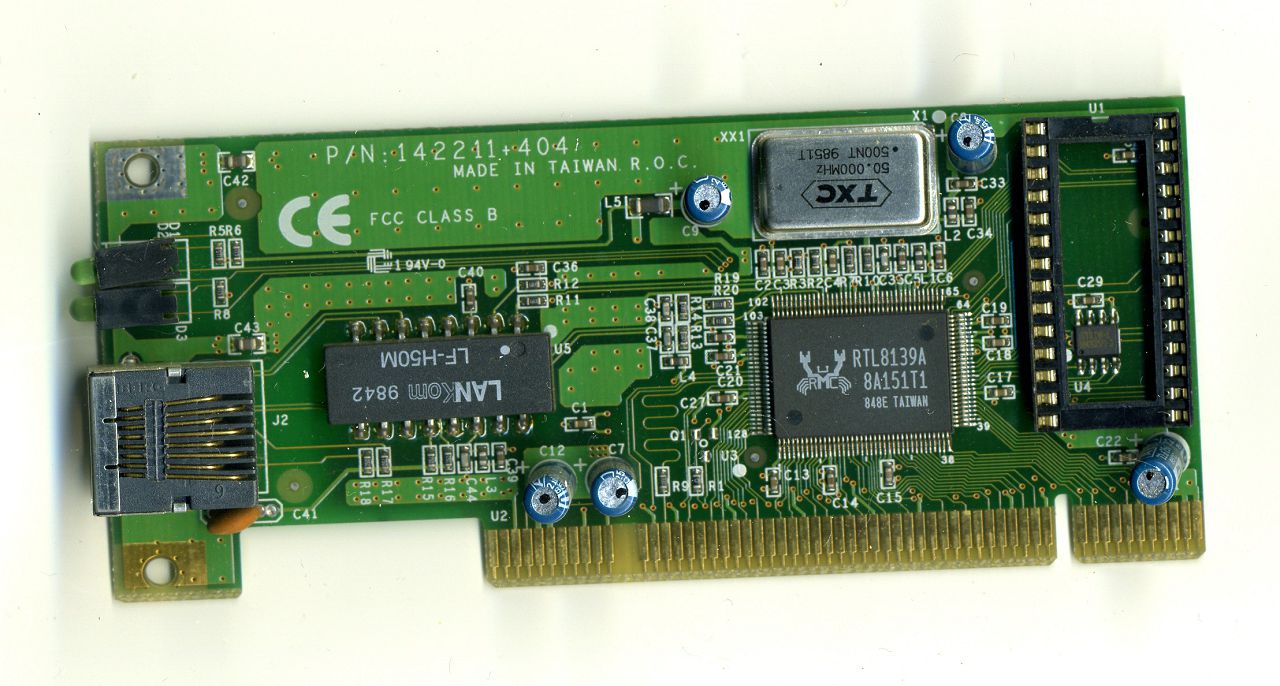

Generic Slim (Realtek RTL8139) (10/100Mbps) PCI Network Card
1 x RJ-45
2000



Generic Slim (Realtek RTL8139) (10/100Mbps) PCI Network Card
1 x RJ-45
2000

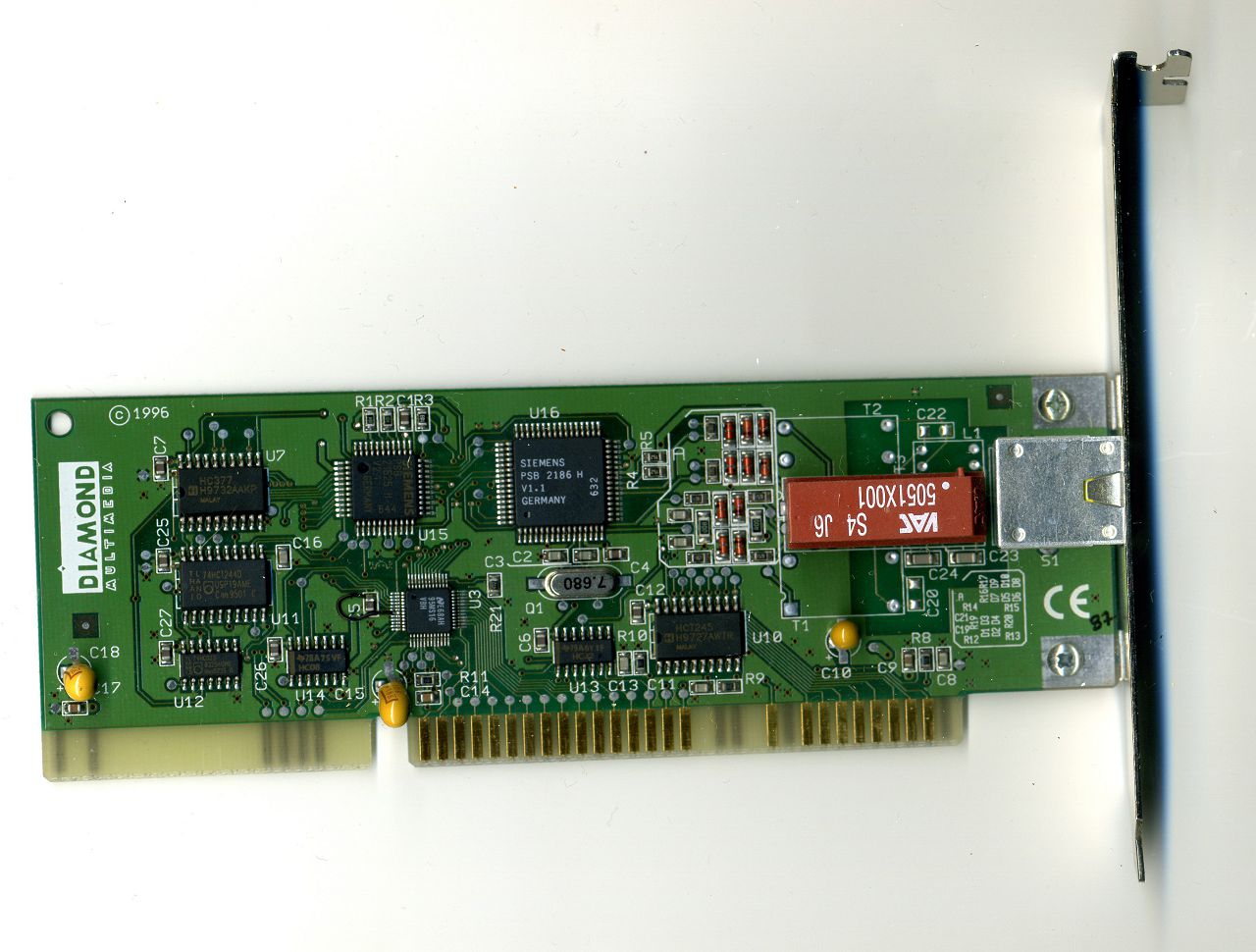

Diamond Multimedia Systems NETCOMMANDER EC/CH ISDN ISA Card
Fax & Modem
1 x RJ-45
1996



Diamond Multimedia Systems NETCOMMANDER EC/CH ISDN ISA Card
Fax & Modem
1 x RJ-45
1996

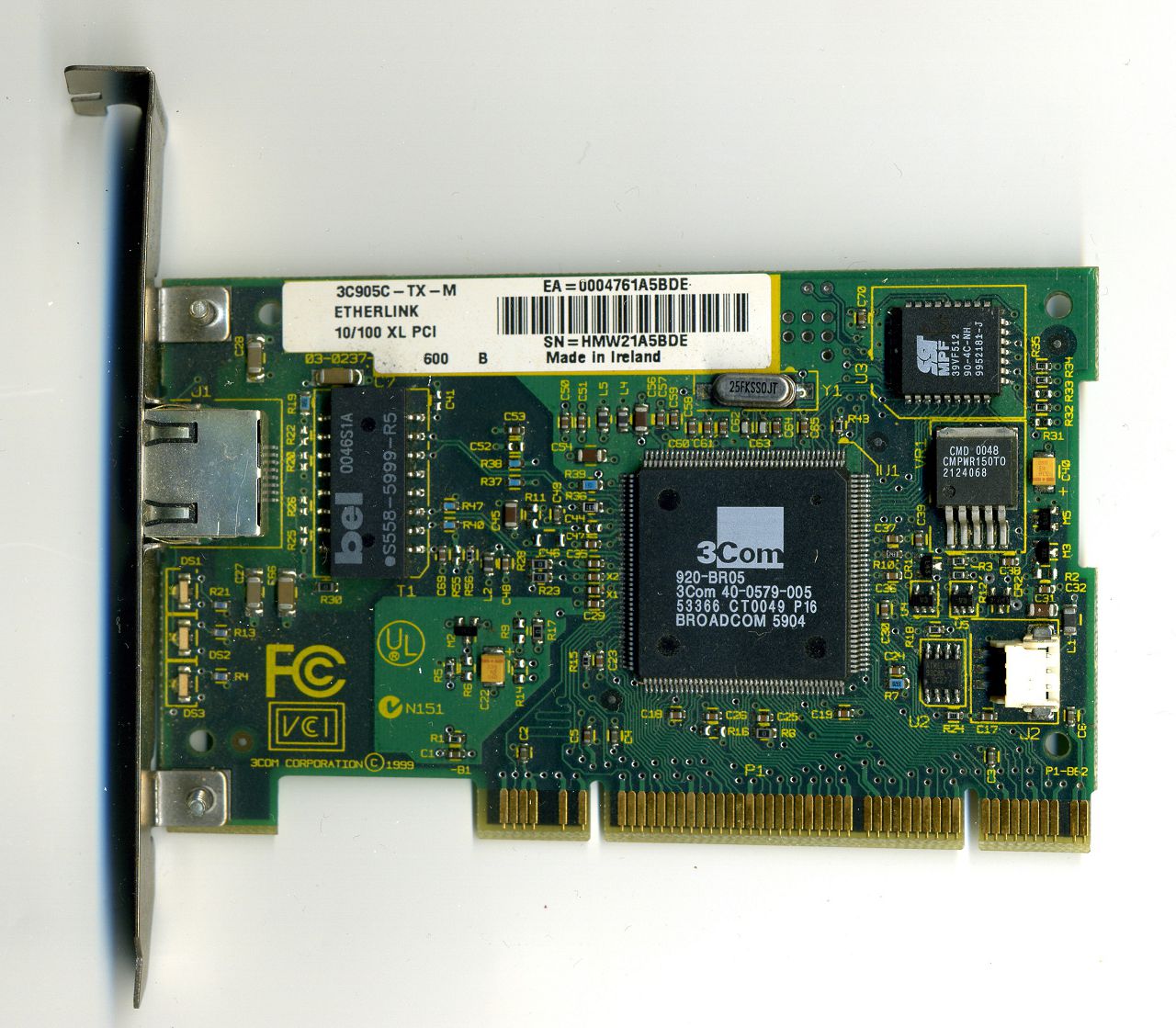

3Com Etherlink 3C905C-TX-M (10/100MBps) PCI Network Card
1 x RJ-45
1999

More info



3Com Etherlink 3C905C-TX-M (10/100MBps) PCI Network Card
1 x RJ-45
1999

More info

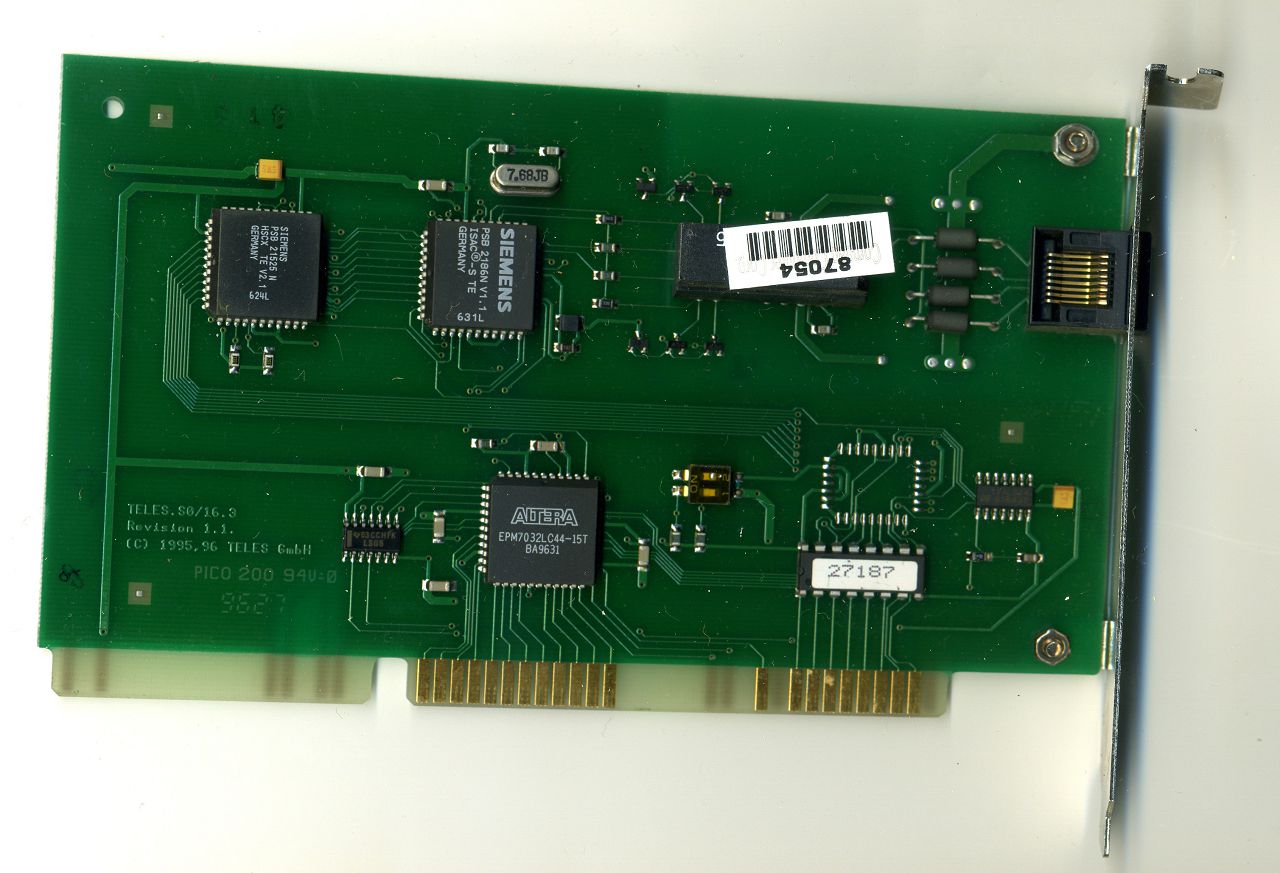

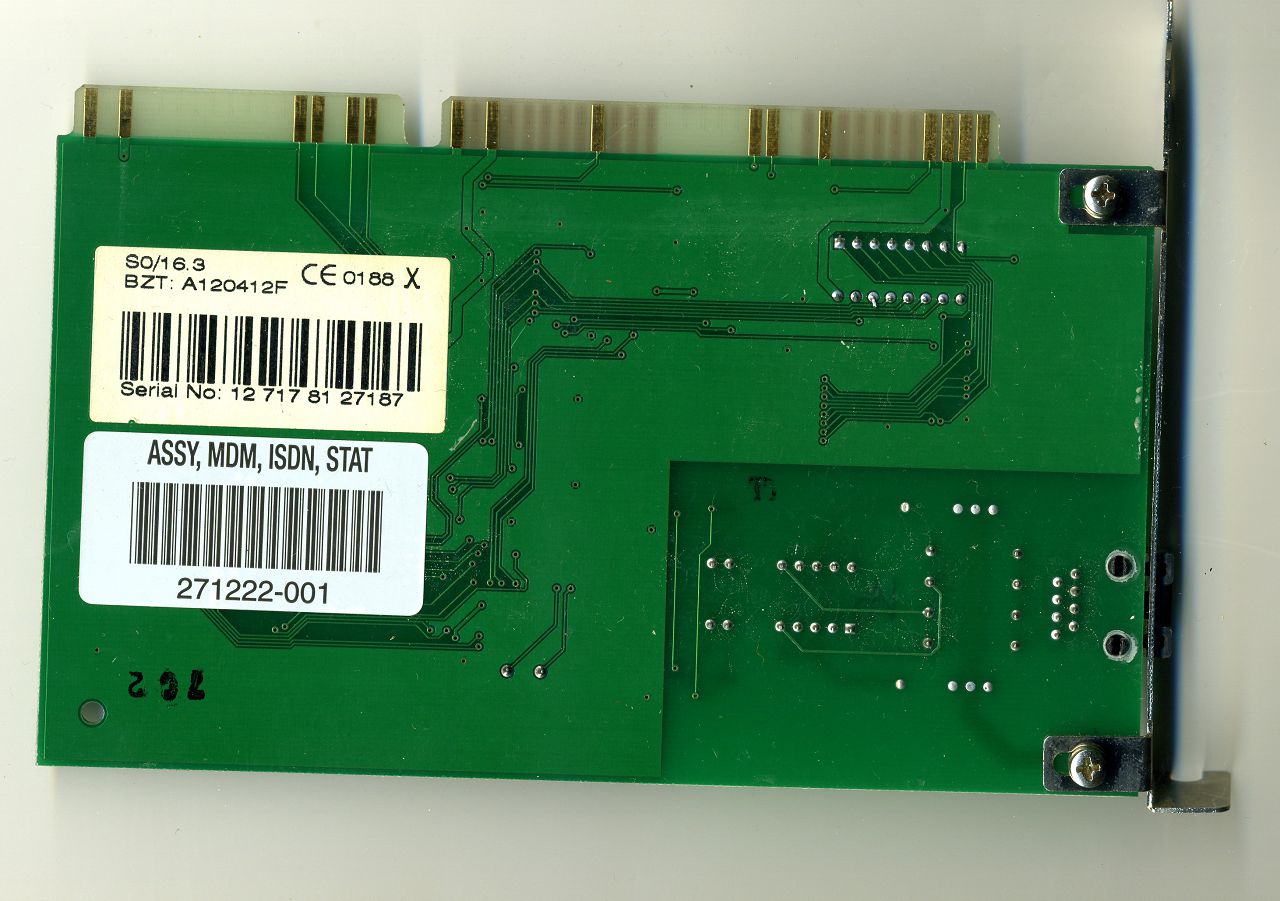

Teles.S0/16.3 ISDN ISA Card
Fax and Modem
1 x RJ-45
1996



Teles.S0/16.3 ISDN ISA Card
Fax and Modem
1 x RJ-45
1996

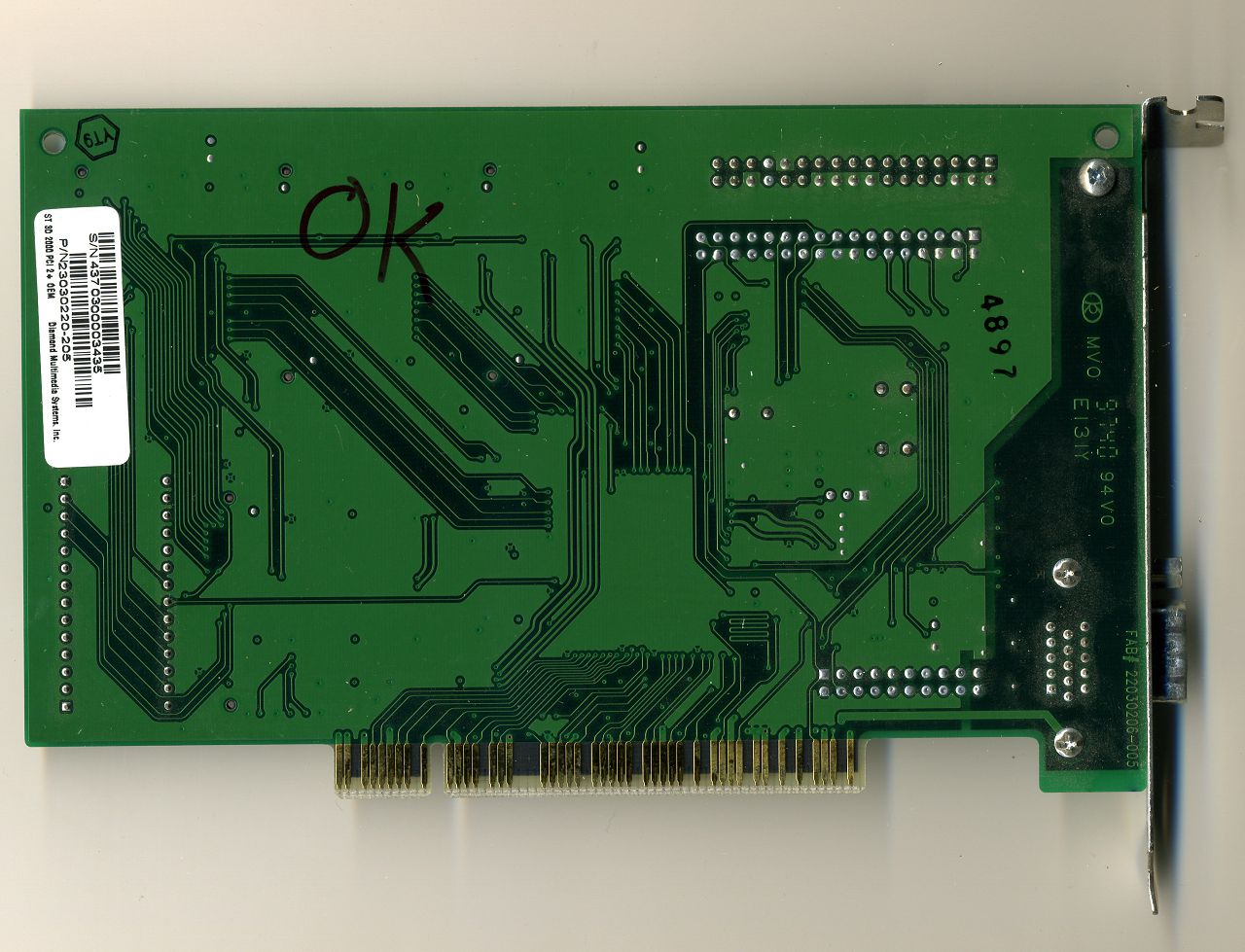

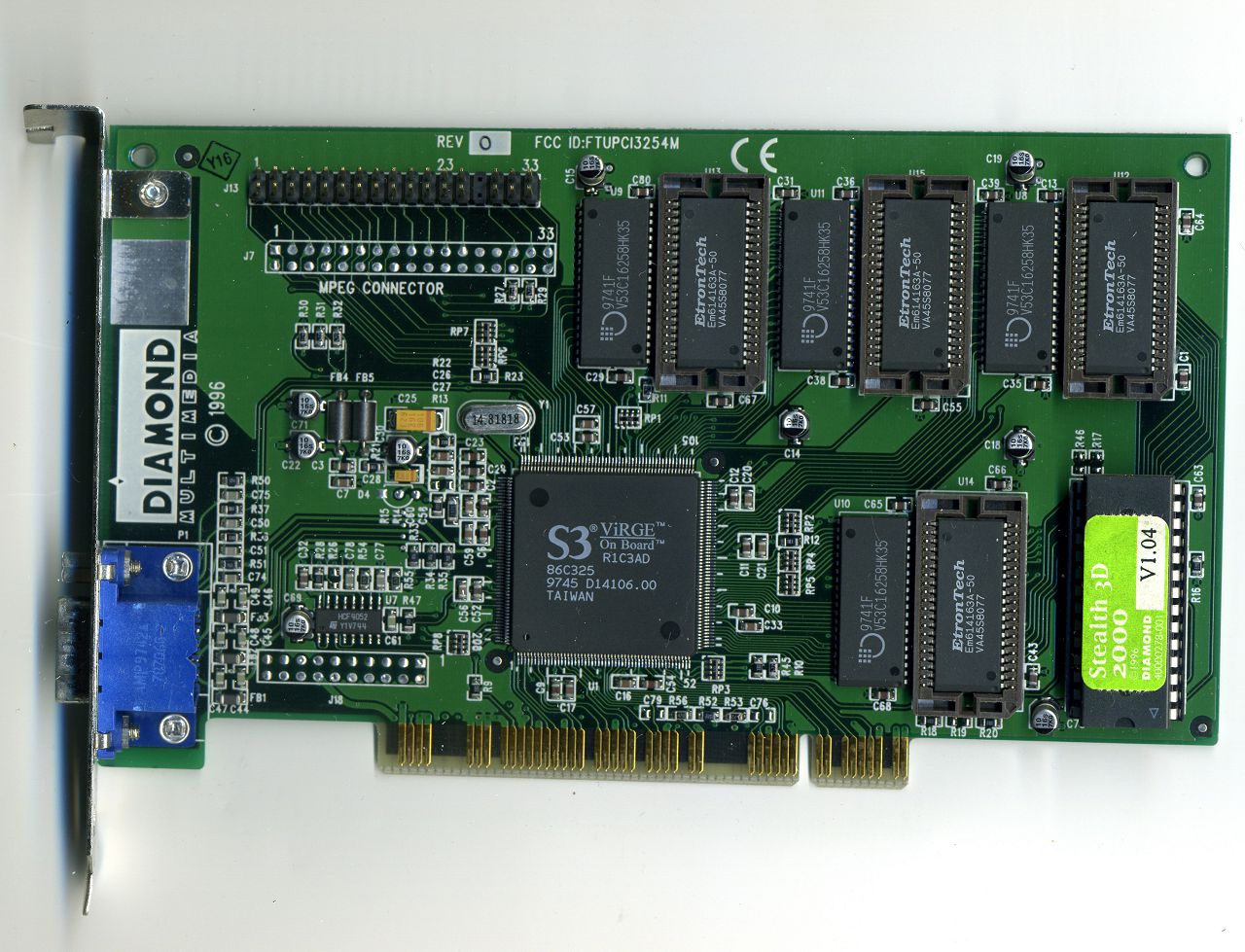

Diamond Stealth 3D-2000 with Virge Chipset

Released: 1996
Bus: PCI
Chipset: S3 ViRGE (86C325)
Standards: Hercules, CGA, EGA, VGA
Memory: 2 MB or 4 MB EDO DRAM (64-bit)
Ports: 15-pin DSUB (video out)
26-pin VGA Feature connector
TV-out: (3D 2000 Pro)
RAMDAC: 135 MHz
Part #: 23030220-205 (2 MB no TV, OEM version)
FCC ID: FTUPCI3254M (no TV-out)



Diamond Stealth 3D-2000 with Virge Chipset

Released: 1996
Bus: PCI
Chipset: S3 ViRGE (86C325)
Standards: Hercules, CGA, EGA, VGA
Memory: 2 MB or 4 MB EDO DRAM (64-bit)
Ports: 15-pin DSUB (video out)
26-pin VGA Feature connector
TV-out: (3D 2000 Pro)
RAMDAC: 135 MHz
Part #: 23030220-205 (2 MB no TV, OEM version)
FCC ID: FTUPCI3254M (no TV-out)

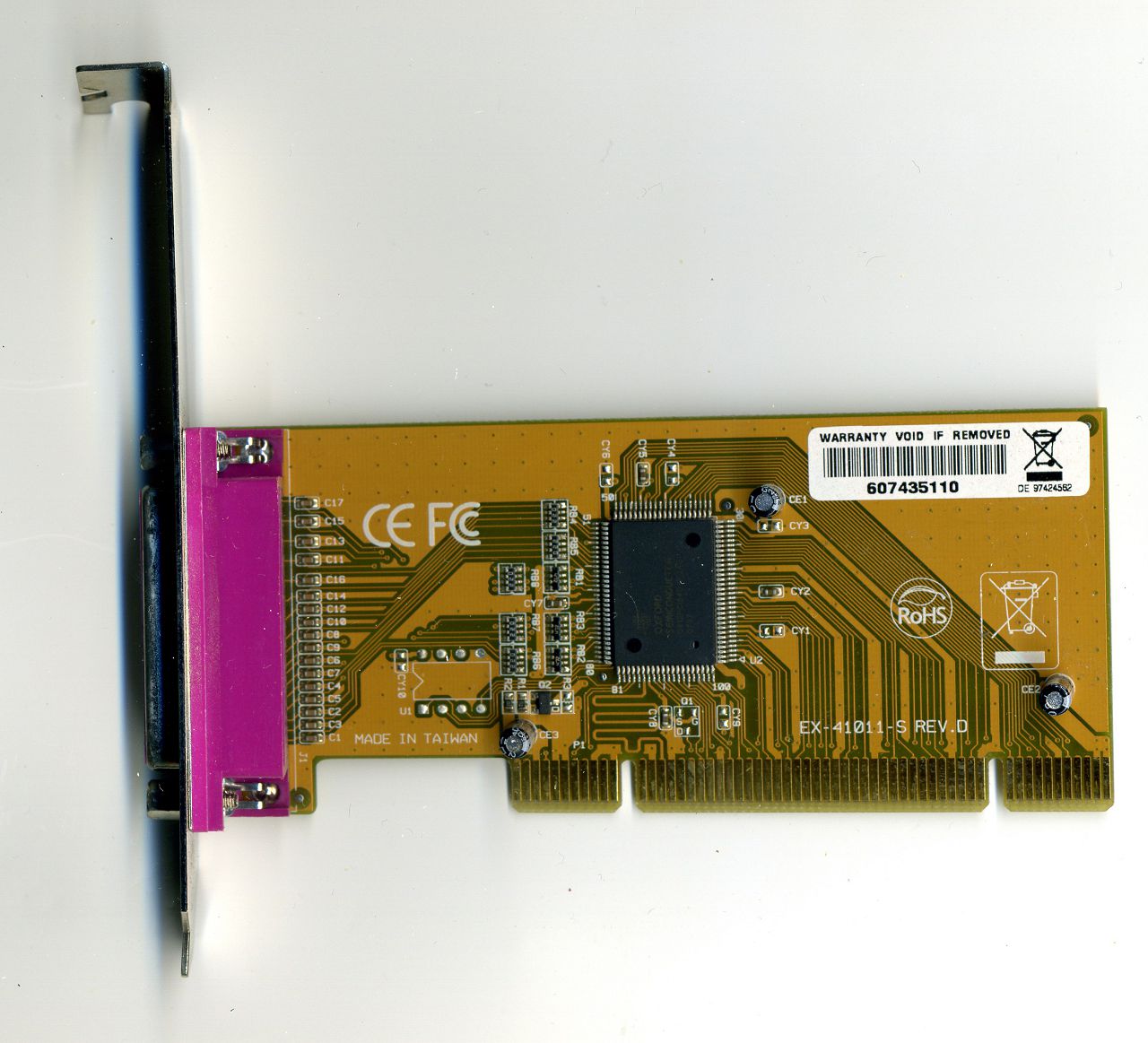

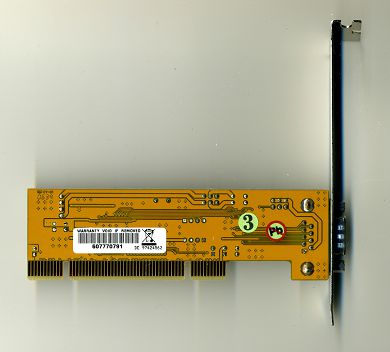

Exsys EX-41011-S REV.D Parallel PCI Controller 32bit IEEE
REV.D
1 x LPT
2007




Exsys EX-41011-S REV.D Parallel PCI Controller 32bit IEEE
REV.D
1 x LPT
2007



Adaptec AHA-2940AU PCI SCSI Controller
1 x SCSI (50-pin header) - 2x25 2.54mm pin header
1 x SCSI HD50 - SCSI HD50
1997



Adaptec AHA-2940AU PCI SCSI Controller
1 x SCSI (50-pin header) - 2x25 2.54mm pin header
1 x SCSI HD50 - SCSI HD50
1997



These are AGP riser/extender cards - they plug into an AGP slot and let you mount an AGP video card horizontally in a low-profile/embedded chassis.



These are AGP riser/extender cards - they plug into an AGP slot and let you mount an AGP video card horizontally in a low-profile/embedded chassis.



Nvidia MX4000-Dv128 DVI, TV-OUT PCI GFX Card
128MB + VGA Extension
1 x DVI
1 x VGA
1 x 1- S-Video TV-Out
1 x HD15 DSUB VGA
2004



Nvidia MX4000-Dv128 DVI, TV-OUT PCI GFX Card
128MB + VGA Extension
1 x DVI
1 x VGA
1 x 1- S-Video TV-Out
1 x HD15 DSUB VGA
2004



ATI 3D Rage Pro AGP 2x, 8MB GFX Card
1 x HD D-SUB 15-pin
1997



ATI 3D Rage Pro AGP 2x, 8MB GFX Card
1 x HD D-SUB 15-pin
1997



3Com ETHERLINK XL (3C900B-COMBO) - REV A (10Mbps), ISA Network Card
1x 10Mbps LAN (AUI) - DA-15
1 x 10Mbps LAN (Coaxial) - BNC 50-ohms
1 x 10Mbps LAN - RJ-45
1998

More info



3Com ETHERLINK XL (3C900B-COMBO) - REV A (10Mbps), ISA Network Card
1x 10Mbps LAN (AUI) - DA-15
1 x 10Mbps LAN (Coaxial) - BNC 50-ohms
1 x 10Mbps LAN - RJ-45
1998

More info



Dotronic Mikroelektronik Display Controller ISA Card
Digital ISA Bus Interface Card for Monochrome, Colour or TFT LCD
DC-510
BIOS V1.3.110
X1 and/or X2 = VGA?
33L50182CA L2
1997

More info (similar looking card) Datasheet
More info (similar looking card) User Guide

Drivers seem to be available only for:
Windows 3.1x
Windows 95
Windows NT 3.51
Windows NT4.0 (inc. on Windows NT 4.0 CD)
OS/2



Dotronic Mikroelektronik Display Controller ISA Card
Digital ISA Bus Interface Card for Monochrome, Colour or TFT LCD
DC-510
BIOS V1.3.110
X1 and/or X2 = VGA?
33L50182CA L2
1997

More info (similar looking card) Datasheet
More info (similar looking card) User Guide

Drivers seem to be available only for:
Windows 3.1x
Windows 95
Windows NT 3.51
Windows NT4.0 (inc. on Windows NT 4.0 CD)
OS/2



ASUS V8460ULTRA/DELUXE/P/128M/A, AGP GFX Card
1 x 3.5mm TRS jack (for VR Glasses)
1 x 9-pin mini-DIN (non-standard) - Outputs S-Video via cable
1 x DVI-I
1 x 15PIN HD DSUB VGA
2002




ASUS V8460ULTRA/DELUXE/P/128M/A, AGP GFX Card
1 x 3.5mm TRS jack (for VR Glasses)
1 x 9-pin mini-DIN (non-standard) - Outputs S-Video via cable
1 x DVI-I
1 x 15PIN HD DSUB VGA
2002




Generic NJC310 (Realtek RTL8139) (10/100?Mbps) PCI Network Card
1 x RJ-45
1999



Generic NJC310 (Realtek RTL8139) (10/100?Mbps) PCI Network Card
1 x RJ-45
1999



MSI NX6200AX-TD128LF, 128MB AGP GFX Card
1 x S-Video
1 x Single-Link DVI-I
1 x VGA
2004



MSI NX6200AX-TD128LF, 128MB AGP GFX Card
1 x S-Video
1 x Single-Link DVI-I
1 x VGA
2004



SUN6311ST/EX4001 16-bit Parallel Controller Card ISA
Chip SUN1688
1996



SUN6311ST/EX4001 16-bit Parallel Controller Card ISA
Chip SUN1688
1996



1 Port EX-43091 REV.B PCI RS232 Serial Adapter Card
2006



1 Port EX-43091 REV.B PCI RS232 Serial Adapter Card
2006



ASUS V9999GT/TD/256M/A AGP GFX Card
1 x DVI-I
1 x S-video (4-pin) 4-pin Mini-DIN
1 x 15P HD DSUB VGA
2004



ASUS V9999GT/TD/256M/A AGP GFX Card
1 x DVI-I
1 x S-video (4-pin) 4-pin Mini-DIN
1 x 15P HD DSUB VGA
2004



Pinnacle Systems PCTV (Pro) PCI Capture Card
1 x 3.5mm audio out (3.5mm TRS jack, Stereo audio out)
1 x Composite video (RCA) - RCA Jack, Composite video
1 x S-video (4-pin) - 4-pin Mini-DIN, S-Video
1 x TV RF input (Belling-Lee) - Belling-Lee female coaxial, RF Audio, RF Video
2001



Pinnacle Systems PCTV (Pro) PCI Capture Card
1 x 3.5mm audio out (3.5mm TRS jack, Stereo audio out)
1 x Composite video (RCA) - RCA Jack, Composite video
1 x S-video (4-pin) - 4-pin Mini-DIN, S-Video
1 x TV RF input (Belling-Lee) - Belling-Lee female coaxial, RF Audio, RF Video
2001



ASUS V6800 Deluxe 64MB AGP GFX Card
1 x VGA
2 x S-Video (TV Out and Video in)
1999




ASUS V6800 Deluxe 64MB AGP GFX Card
1 x VGA
2 x S-Video (TV Out and Video in)
1999




Eicon Diva 2.01 (800-362) PCI ISDN Card
Fax & Modem
1 x RJ-45
2000




Eicon Diva 2.01 (800-362) PCI ISDN Card
Fax & Modem
1 x RJ-45
2000




MRi (80-ta200s106-1) PCI ISDN Card
Fax & Modem
1 x RJ-45
2001



MRi (80-ta200s106-1) PCI ISDN Card
Fax & Modem
1 x RJ-45
2001



ASUS Radeon AH3450/DI/512MD2(LP) AGP GFX Card
1 x Dual-Link DVI-I
1 x HDMI
1 x 15P HD DSUB VGA
2009



ASUS Radeon AH3450/DI/512MD2(LP) AGP GFX Card
1 x Dual-Link DVI-I
1 x HDMI
1 x 15P HD DSUB VGA
2009



ELSA Gladiac MX 32MB AGP GFX Card
1 x 15P HD DSUB VGA
2000



ELSA Gladiac MX 32MB AGP GFX Card
1 x 15P HD DSUB VGA
2000



This is a Dell OEM PCI riser card (dual-slot right-angle riser for small-form-factor desktops/servers).



This is a Dell OEM PCI riser card (dual-slot right-angle riser for small-form-factor desktops/servers).



ATI Radeon 9250 SE 64MB AGP GFX Card
1 x DVI
1 x 15p HD DSUB VGA
1 x S-VIDEO
2004



ATI Radeon 9250 SE 64MB AGP GFX Card
1 x DVI
1 x 15p HD DSUB VGA
1 x S-VIDEO
2004



This is a 168-pin SDRAM DIMM form-factor riser/extender for CPU daughterboards / mezzanine CPU modules (not memory) - typically used in POS/embedded systems to plug a CPU card into a 168-pin DIMM-style socket.



This is a 168-pin SDRAM DIMM form-factor riser/extender for CPU daughterboards / mezzanine CPU modules (not memory) - typically used in POS/embedded systems to plug a CPU card into a 168-pin DIMM-style socket.



ASUS V9180 TD 128MB AGP GFX Card
1 x S-Video
1 x Single Link DVI-I
1 x 15P HD DSUB VGA
2002



ASUS V9180 TD 128MB AGP GFX Card
1 x S-Video
1 x Single Link DVI-I
1 x 15P HD DSUB VGA
2002



ACER ATI 3D Rage PRO PCI GFX / SCSI Card
SCSI/VGA COMBO CARD / M11E 3D COMBO
2 or 4MB
1 x 68-pin Wide SCSI connector
1 x 50-pin Fast SCSI-II connector
1 x ATI Multimedia connector
1 x Ultra SCSI connector
1 x VGA connector
1998




ACER ATI 3D Rage PRO PCI GFX / SCSI Card
SCSI/VGA COMBO CARD / M11E 3D COMBO
2 or 4MB
1 x 68-pin Wide SCSI connector
1 x 50-pin Fast SCSI-II connector
1 x ATI Multimedia connector
1 x Ultra SCSI connector
1 x VGA connector
1998




MSI NX7800GTX - VT2D256E GeForce PCI-E GFX Card
1 x 10-pin VIVO plug - 10-pin Mini-DIN
2 x DVI-I
1x SLI (2x13 PCB edge fingers)
2005



MSI NX7800GTX - VT2D256E GeForce PCI-E GFX Card
1 x 10-pin VIVO plug - 10-pin Mini-DIN
2 x DVI-I
1x SLI (2x13 PCB edge fingers)
2005



ESS AudioDrive (ES1868) Audio Card
1996




ESS AudioDrive (ES1868) Audio Card
1996



Adaptec AHA-2940AU PCI SCSI Controller
1 x SCSI (50-pin header) - 2x25 2.54mm pin header
1 x SCSI HD50 - SCSI HD50
1997



Adaptec AHA-2940AU PCI SCSI Controller
1 x SCSI (50-pin header) - 2x25 2.54mm pin header
1 x SCSI HD50 - SCSI HD50
1997



ATI 3D Rage, ATi mach64GT GFX Card

Released: April 1996
Bus: PCI
Chipset: ATi mach64GT
Standards: VGA and SVGA
Memory: 2 MB EDO RAM (32-bit)
Ports: 15-pin DSUB (RGB analogue)
Part #: 109-34000-00
FCC ID: EXM340
Price: At launch: $229



ATI 3D Rage, ATi mach64GT GFX Card

Released: April 1996
Bus: PCI
Chipset: ATi mach64GT
Standards: VGA and SVGA
Memory: 2 MB EDO RAM (32-bit)
Ports: 15-pin DSUB (RGB analogue)
Part #: 109-34000-00
FCC ID: EXM340
Price: At launch: $229



DoTronic Display Controller LCD/TFT/CRT Card ISA
The WD90C22 was a superset of the earlier WD90C00 (PVGA1B) chipset, primarily designed for use with LCD flat panel displays.
Standards: MDA, Hercules, CGA, EGA, VGA

33L80021BA BS
UEXC94V-0
BIOS MONO V1.03
Main Chip: WDC WD90C22-LR 00-02 9235 E 66120A1-1201
33L89921BA LS
1 x VGA
1992

More info

Even more info

Datasheet CHIP

Card was tested and shows a standard screen through the VGA connector. See bottom of page.



DoTronic Display Controller LCD/TFT/CRT Card ISA
The WD90C22 was a superset of the earlier WD90C00 (PVGA1B) chipset, primarily designed for use with LCD flat panel displays.
Standards: MDA, Hercules, CGA, EGA, VGA

33L80021BA BS
UEXC94V-0
BIOS MONO V1.03
Main Chip: WDC WD90C22-LR 00-02 9235 E 66120A1-1201
33L89921BA LS
1 x VGA
1992

More info

Even more info

Datasheet CHIP

Card was tested and shows a standard screen through the VGA connector. See bottom of page.



ATI Rage 128 VR GFX Card
1 x HD 15 pin D-sub
Bus: AGP 2x
August 1998



ATI Rage 128 VR GFX Card
1 x HD 15 pin D-sub
Bus: AGP 2x
August 1998



DataExpert MED3931 ISA Audio Card
2 x 3.5mm audio in - 3.5mm TRS jack
1 x 3.5mm audio out - 3.5mm TRS jack
1 x Game/MIDI port (DA-15/DB-15) - DA-15
1996

More info



DataExpert MED3931 ISA Audio Card
2 x 3.5mm audio in - 3.5mm TRS jack
1 x 3.5mm audio out - 3.5mm TRS jack
1 x Game/MIDI port (DA-15/DB-15) - DA-15
1996

More info



ATI Radeon 9100 128MB DDR, DVI TV, AGP GFX Card
1 x 15P HD DSUB VGA
1 x DVI
1 x S-VIDEO
2001



ATI Radeon 9100 128MB DDR, DVI TV, AGP GFX Card
1 x 15P HD DSUB VGA
1 x DVI
1 x S-VIDEO
2001



Adaptec AHA-2940W/2940UW PCI SCSI Controller
Wide and UltraWide support. SCSI-2 and SCSI-3
1 x 68-pin SCSI-3 connector External
1 x 50-pin shrouded standard SCSI header Internal
1 x 68-pin shrouded SCSI-3 header Internal
1999



Adaptec AHA-2940W/2940UW PCI SCSI Controller
Wide and UltraWide support. SCSI-2 and SCSI-3
1 x 68-pin SCSI-3 connector External
1 x 50-pin shrouded standard SCSI header Internal
1 x 68-pin shrouded SCSI-3 header Internal
1999



Moxa CP-168U 8 Port RS-232 Universal PCI Card
50 bps to 921.6 kbps
1 x 168PIN External (Missing squid cable)



Moxa CP-168U 8 Port RS-232 Universal PCI Card
50 bps to 921.6 kbps
1 x 168PIN External (Missing squid cable)



MRi (80-ta200s106-1) PCI ISDN Card
Fax & Modem
1 x RJ-45
2001



MRi (80-ta200s106-1) PCI ISDN Card
Fax & Modem
1 x RJ-45
2001



PNY NVIDIA Quadro FX 4000 256MB AGP GFX Card
2 x DVI
1 x S-Video
2004




PNY NVIDIA Quadro FX 4000 256MB AGP GFX Card
2 x DVI
1 x S-Video
2004




ASUS Radeon AH3450/DI/512MD2(LP) AGP GFX Card
1 x Dual-Link DVI-I
1 x HDMI
1 x 15P HD DSUB VGA
2009



ASUS Radeon AH3450/DI/512MD2(LP) AGP GFX Card
1 x Dual-Link DVI-I
1 x HDMI
1 x 15P HD DSUB VGA
2009



XFX NVIDIA GeForce 7600GS 512MB AGP GFX Card
1 x 15P HD DSUB VGA
1 x Dual-Link DVI-I
1 x S-Video
2008



XFX NVIDIA GeForce 7600GS 512MB AGP GFX Card
1 x 15P HD DSUB VGA
1 x Dual-Link DVI-I
1 x S-Video
2008



4-port USB 2.0 & OHCI Compliant IEEE 1394a (FireWire) PCI Card
USB Ports: 2 External (USB A X 2)+ 2 Internal (USB A X 2)
FireWire Ports: 2 External (FW-6pin X 2) + 1 Internal (FW-6pin X 1)
Firewire (IEEE 1394) and USB Bus Power Connector
Mini 4-pin DC +12V and +5V power connector
2006



4-port USB 2.0 & OHCI Compliant IEEE 1394a (FireWire) PCI Card
USB Ports: 2 External (USB A X 2)+ 2 Internal (USB A X 2)
FireWire Ports: 2 External (FW-6pin X 2) + 1 Internal (FW-6pin X 1)
Firewire (IEEE 1394) and USB Bus Power Connector
Mini 4-pin DC +12V and +5V power connector
2006



NVIDIA GeForce 6800 GT DDL AGP Pro 8x 256MB GFX Card
2 x DVI
2004



NVIDIA GeForce 6800 GT DDL AGP Pro 8x 256MB GFX Card
2 x DVI
2004



Longshine LCS-6019 parallel interface PCI card
Based on the MosChip MCS9805CV controller
1 x LPT
2006




Longshine LCS-6019 parallel interface PCI card
Based on the MosChip MCS9805CV controller
1 x LPT
2006



Exsys EX-41011-S REV.D Parallel PCI Controller 32bit IEEE
REV.B
1 x LPT
2004



Exsys EX-41011-S REV.D Parallel PCI Controller 32bit IEEE
REV.B
1 x LPT
2004



Kingston KNE40T (KNE40BT) (10Mbps) PCI Network Card
1 x RJ-45
1 x Coaxial
1999




Kingston KNE40T (KNE40BT) (10Mbps) PCI Network Card
1 x RJ-45
1 x Coaxial
1999




These are AGP riser/extender adapter boards - used to mount an AGP graphics card horizontally.



These are AGP riser/extender adapter boards - used to mount an AGP graphics card horizontally.



USB 2.0 5-port usb card sh 94V-0 E248779 PCI Card
4 x External Type A
1 x Internal Type A
2005



USB 2.0 5-port usb card sh 94V-0 E248779 PCI Card
4 x External Type A
1 x Internal Type A
2005



Creative Soundblaster SB16 Value CT2770 Audio Card
1994



Creative Soundblaster SB16 Value CT2770 Audio Card
1994



iEi IVC-200G-RS Capture Card, PCI
4-channel composite video (NTSC/PAL)
4 x Video Input-BNC
2004

More info



iEi IVC-200G-RS Capture Card, PCI
4-channel composite video (NTSC/PAL)
4 x Video Input-BNC
2004

More info



Creative Labs ES1370 Sound Blaster Ensoniq Audio Card
1997



Creative Labs ES1370 Sound Blaster Ensoniq Audio Card
1997



ASUS Radeon AH3450/DI/512MD2(LP) AGP GFX Card
1 x Dual-Link DVI-I
1 x HDMI
1 x 15P HD DSUB VGA
2009



ASUS Radeon AH3450/DI/512MD2(LP) AGP GFX Card
1 x Dual-Link DVI-I
1 x HDMI
1 x 15P HD DSUB VGA
2009



GeForce 8400GS 256MB DDR2 V/D/VO PCI-E GFX Card
1 x 15P HD DSUB VGA
1 x S-VIDEO
1 x DVI
2007




GeForce 8400GS 256MB DDR2 V/D/VO PCI-E GFX Card
1 x 15P HD DSUB VGA
1 x S-VIDEO
1 x DVI
2007




iEi IVC-200G-RS Capture Card, PPCI
4-channel composite video (NTSC/PAL)
4 x Video Input-BNC
2004

More info



iEi IVC-200G-RS Capture Card, PPCI
4-channel composite video (NTSC/PAL)
4 x Video Input-BNC
2004

More info



Creative Labs Soundblaster Live! CT4670 Audio Card
1999



Creative Labs Soundblaster Live! CT4670 Audio Card
1999



M-Audio AudioPhile 24/96 Audio Card
2000



M-Audio AudioPhile 24/96 Audio Card
2000



Advantech PCI-1762 16ch Relay + 16ch Digital Input PCI
2004



Advantech PCI-1762 16ch Relay + 16ch Digital Input PCI
2004



ASUS EN8800GTX 768MB (EN8800GTX/HTDP/768M/A) PCI-E GFX Card
Ghost Recon edition
2 x DVI
1 x S-Video
2006



ASUS EN8800GTX 768MB (EN8800GTX/HTDP/768M/A) PCI-E GFX Card
Ghost Recon edition
2 x DVI
1 x S-Video
2006



ASUS EN8800GTX 768MB (EN8800GTX/HTDP/768M/A) PCI-E GFX Card
Ghost Recon edition
2 x DVI
1 x S-Video
2006



Reference "pci_card34":

Dotronic Mikroelektronik Display Controller ISA Card
Digital ISA Bus Interface Card for Monochrome, Colour or TFT LCD
BIOS V3.04
1 x VGA
WDC90C22-LR 00-02 9240 E 2657346-3501
DCST-2 002085
33L50046BA LS
1993

Card was tested, but it seems it messed up the BIOS graphics on the motherboard.



Reference "pci_card71":

Dotronic Mikroelektronik Display Controller ISA Card
Digital ISA Bus Interface Card for Monochrome, Colour or TFT LCD
BIOS V3.04
1 x VGA
WDC90C22-LR 00-02 9240 E 2657346-3501
DCST-2 002085
33L50046BA LS
1993

Card was tested, but it seems it messed up the BIOS graphics on the motherboard.



Reference "pci_card34":

Dotronic Mikroelektronik Display Controller ISA Card
Digital ISA Bus Interface Card for Monochrome, Colour or TFT LCD
BIOS V3.04
1 x VGA
WDC90C22-LR 00-02 9240 E 2657346-3501
DCST-2 002085
33L50046BA LS
1993

Card was tested, and here the graphics from the BIOS was all fine.






------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Posted by: Old-schooler, Stone Oakvalley | Publisher: Website Designer, Stone Oakvalley
Last revised: November 05, 2025 - 22:20 | Page views: 353


Website Design by post@stone-oakvalley-studios.com - Copyright © 2025 www.stone-oakvalley-studios.com
